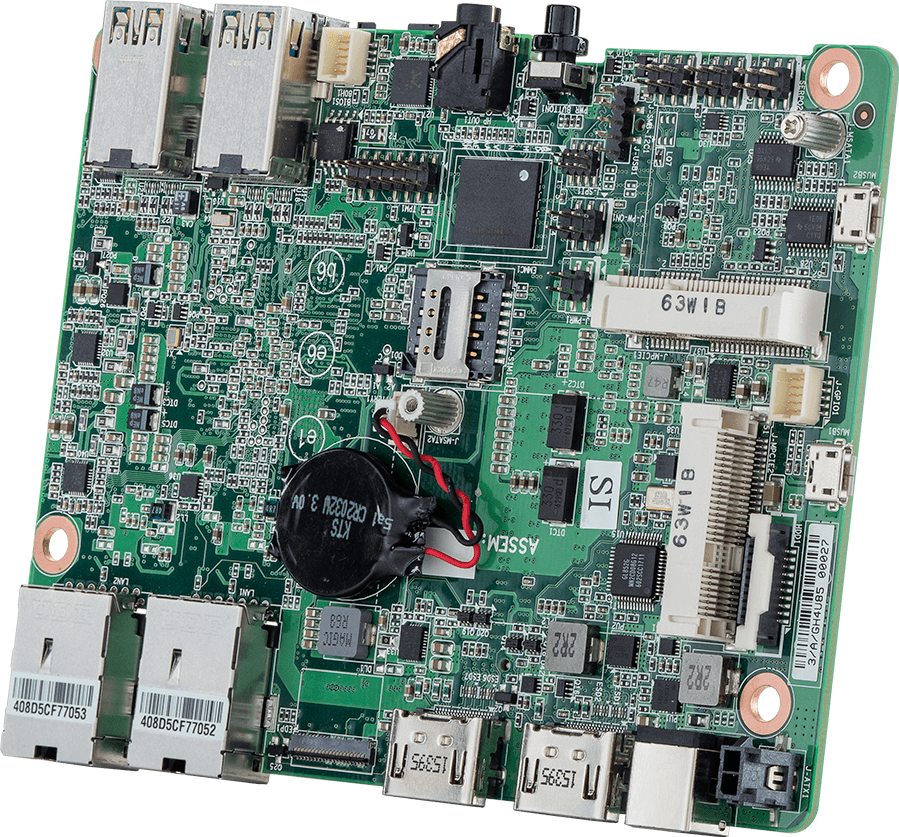

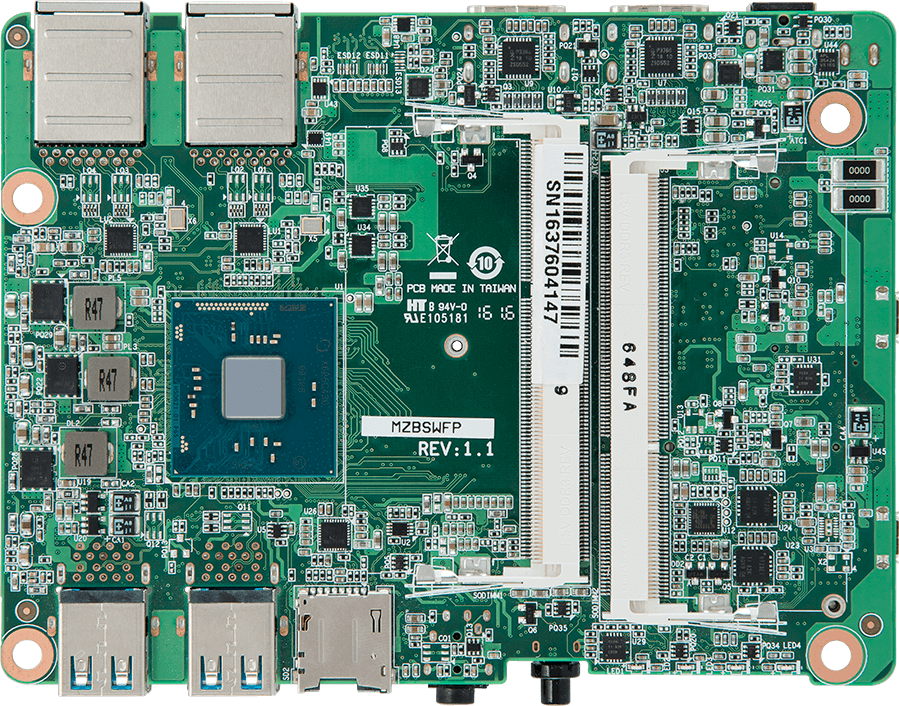

MZBSWFP
Legacy | Firmware updates supportedIntel® Pentium® N3710
- 101(W) x 135(D) mm small form factor
- Intel® Pentium® processor N3710
- 2 x SO-DIMM DDR3L slots
- 2 x GbE LAN ports (Realtek RTL8111HS)
- 32GB onboard eMMC memory
- 1 x Full-size Mini-PCIe for 3G module or mSATA storage
- 1 x Half-size Mini-PCIe for WiFi+BT module
- 1 x SDXC card slot
- Windows & Android 5.1 support
產品規格
Board Size
Proprietary
101(W) x 135(D) mm
101(W) x 135(D) mm
Operating Properties
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Processor Supported
Intel Pentium processor N3710
4 cores, 4 threads
1.6 - 2.56 GHz
2MB L2 cache
6W max. TDP
4 cores, 4 threads
1.6 - 2.56 GHz
2MB L2 cache
6W max. TDP
Socket
1 x BGA 1170
Memory Type
2 x SO-DIMM slots
1.35V DDR3L memory
Up to 8GB
1333/1600MHz
1.35V DDR3L memory
Up to 8GB
1333/1600MHz
Flash Memory
32GB eMMC
Integrated Network
2 x GbE LAN ports (Realtek RTL8111HS)
Integrated Video Controller
Intel HD Graphics supports dual display
Max. resolution via HDMI ports:
3840 x 2160 @ 30Hz or
2560 x 1600 @ 60Hz with 2 memory installed
Max. resolution via eDP:
2560 x 1440 @ 60Hz with 2 memory installed
Max. resolution via HDMI ports:
3840 x 2160 @ 30Hz or
2560 x 1600 @ 60Hz with 2 memory installed
Max. resolution via eDP:
2560 x 1440 @ 60Hz with 2 memory installed
Integrated Audio Controller
Realtek ALC255 controller
Supports 2/4/5.1/7.1 channel configurations via HDMI
Supports 2/4/5.1/7.1 channel configurations via HDMI
Integrated SATA Controller
1 x SATA 6Gb/s port
Expansion Slot
1 x Full-size mini-PCIe slot (for 3G module or mSATA storage)
1 x Half-size mini-PCIe slot (for WiFi+BT module)
WiFi & 3G wireless module in option
1 x Half-size mini-PCIe slot (for WiFi+BT module)
WiFi & 3G wireless module in option
On Board Connectors
1 x SIM card slot
1 x 12V power connector
1 x SATA 6Gb/s with power connector
1 x 80H connector
1 x eDP connector
1 x USB 2.0 header
2 x Serial headers
1 x 8-pin GPIO connector
1 x SPI header
1 x TPM header
1 x 5V power header
1 x Power LED header
1 x I2C & SMbus header
1 x 12V power connector
1 x SATA 6Gb/s with power connector
1 x 80H connector
1 x eDP connector
1 x USB 2.0 header
2 x Serial headers
1 x 8-pin GPIO connector
1 x SPI header
1 x TPM header
1 x 5V power header
1 x Power LED header
1 x I2C & SMbus header

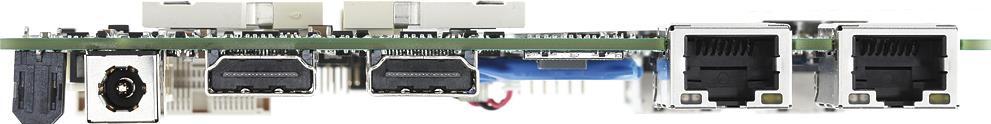

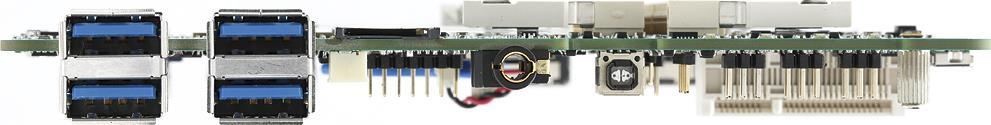

Rear I/O Connectors
1 x DC-in
2 x HDMI v1.4b
2 x RJ45
4 x USB 3.0
1 x Micro-B USB 2.0
1 x Micro-B 5-pin *RS232 full-duplex port ( TxD, RxD, CTS, RTS, GND) 1 x SDXC card slot
1 x Line-out / MIC-in
*[NOTE]: 1. Please check the pin definition and ensure the port is suitable for your peripherals. 2. The serial driver GIGABYTE provided for Windows 10 and 8 is a trial version, please contact your peripheral vendor to get the correct driver.
2 x HDMI v1.4b
2 x RJ45
4 x USB 3.0
1 x Micro-B USB 2.0
1 x Micro-B 5-pin *RS232 full-duplex port ( TxD, RxD, CTS, RTS, GND) 1 x SDXC card slot
1 x Line-out / MIC-in
*[NOTE]: 1. Please check the pin definition and ensure the port is suitable for your peripherals. 2. The serial driver GIGABYTE provided for Windows 10 and 8 is a trial version, please contact your peripheral vendor to get the correct driver.
TPM
TPM header
OS Driver Supported
Windows 10 64bit
Windows 8.1 64bit
Windows 7 32bit / 64bit
Ubuntu 15.10
Ubuntu 16.04 LTS
Android 5.1
- Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7
Windows 8.1 64bit
Windows 7 32bit / 64bit
Ubuntu 15.10
Ubuntu 16.04 LTS
Android 5.1
- Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7
PSU Connectors
1 x 12-19V DC-in or
1 x 12V power connector
1 x 12V power connector
Packaging Bundle
1 X MZBSWFP
Ordering Information
9MZBSWFPNR-SI
40 units per carton
Packaging dimensions: 527 x 348 x 211 mm
NOTE: Default shipping configuration is motherboard only without heatsink, please contact region sales if heatsink is needed
40 units per carton
Packaging dimensions: 527 x 348 x 211 mm
NOTE: Default shipping configuration is motherboard only without heatsink, please contact region sales if heatsink is needed
