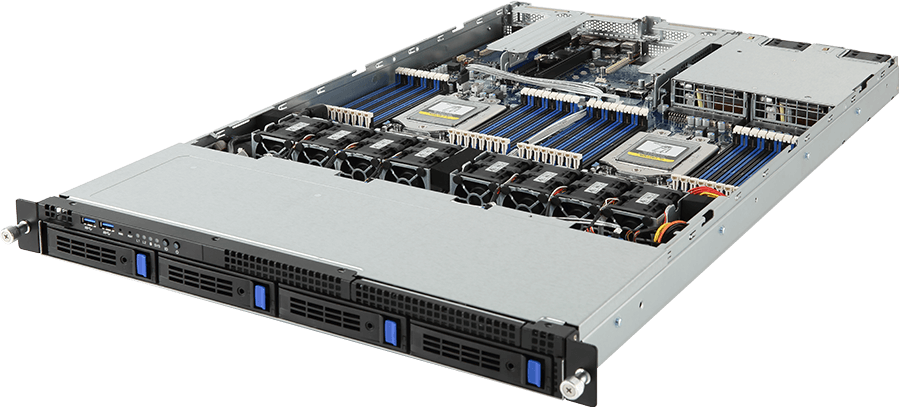

Rack Server - AMD EPYC™ 7003/7002 - 1U DP 4-Bay SATA/SAS
- Dual AMD EPYC™ 7003/7002 Series Processors
- 8-Channel DDR4 RDIMM/LRDIMM, 32 x DIMMs
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 4 x 3.5"/2.5" SATA/SAS hot-swap bays
- 1 x M.2 slot with PCIe Gen3 x4 interface
- 3 x LP PCIe Gen3 x16 and x8 slots
- 2 x OCP Gen3 x16 mezzanine slots
- Dual 1200W 80 PLUS Platinum redundant power supply
Specifications
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 710
438 x 43.5 x 710
Motherboard
MZ91-FS0 Rev. 3.0
CPU
AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Dual processor, cTDP up to 240W
- At 30°C ambient, cTDP up to 280W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
AMD EPYC™ 7002 Series Processors
Dual processor, cTDP up to 240W
- At 30°C ambient, cTDP up to 280W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 4094
Socket SP3
Socket SP3
Chipset
System on Chip
Memory
32 x DIMM slots
DDR4 memory supported
8-Channel memory per processor
RDIMM/LRDIMM: Up to 3200/2933 MT/s [1]
[1] Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
DDR4 memory supported
8-Channel memory per processor
RDIMM/LRDIMM: Up to 3200/2933 MT/s [1]
[1] Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
LAN
Rear:
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in ASPEED® AST2500
- 1 x VGA port
- 1 x VGA port
Storage
Front hot-swap:
4 x 3.5"/2.5" SATA/SAS [1]
Internal M.2:
1 x M.2 (2242/2260/2280), PCIe Gen3 x4, from CPU_0 [2]
[1] SAS card is required to support SAS drives.
[2] CPU TDP is limited to 180W when using M.2 drives.
4 x 3.5"/2.5" SATA/SAS [1]
Internal M.2:
1 x M.2 (2242/2260/2280), PCIe Gen3 x4, from CPU_0 [2]
[1] SAS card is required to support SAS drives.
[2] CPU TDP is limited to 180W when using M.2 drives.
SAS
Require SAS add-in cards
RAID
Require RAID add-in cards
Peripheral Drives
1 x Optional slim ODD [1]
[1] For 12.7mm ODD only.
[1] For 12.7mm ODD only.
PCIe Expansion Slots
Riser Card CRS1021:
- 2 x LP x8 (Gen3 x8), from CPU_0
Riser Card CRS1015:
- 1 x LP x16 (Gen3 x16), from CPU_1
1 x OCP mezzanine (Gen3 x16), from CPU_0 (Type1, P1, P2, P3, P4)
1 x OCP mezzanine (Gen3 x16), from CPU_1 (Type1, P1, P2, P3, P4)
- Supports NCSI function
- 2 x LP x8 (Gen3 x8), from CPU_0
Riser Card CRS1015:
- 1 x LP x16 (Gen3 x16), from CPU_1
1 x OCP mezzanine (Gen3 x16), from CPU_0 (Type1, P1, P2, P3, P4)
1 x OCP mezzanine (Gen3 x16), from CPU_1 (Type1, P1, P2, P3, P4)
- Supports NCSI function
Front I/O
2 x USB 3.0 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
2 x USB 3.0 ports (Type-A)
1 x VGA port
1 x COM port (RJ45 type)
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED
1 x VGA port
1 x COM port (RJ45 type)
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED
Backplane Board
Speed and bandwidth:
SATA 6Gb/s or SAS 12Gb/s
SATA 6Gb/s or SAS 12Gb/s
Security Modules
1 x TPM header
- Optional TPM2.0 kit: CTM000
- Optional TPM2.0 kit: CTM000
Power Supply[#1]
Dual 1200W 80 PLUS Platinum redundant power supply
AC Input:
- 100-127V~/ 12.47A, 47-63Hz
- 200-240V~/ 7.08A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 7A
DC Output:
- Max 1000W/ 100-127V~
+12V/82A
+12Vsb/ 2A
- Max 1200W/ 200-240V~ or 240Vdc Input
+12V/ 98A
+12Vsb/ 2A
Dual 850W 80 PLUS Titanium redundant power supply (optional)
AC Input:
- 100-127V~/ 11A, 47-63Hz
- 200-240V~/ 5A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 4A
DC Output:
- Max 850W
+12V/ 70.8A
+12Vsb/ 2.1A
AC Input:
- 100-127V~/ 12.47A, 47-63Hz
- 200-240V~/ 7.08A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 7A
DC Output:
- Max 1000W/ 100-127V~
+12V/82A
+12Vsb/ 2A
- Max 1200W/ 200-240V~ or 240Vdc Input
+12V/ 98A
+12Vsb/ 2A
Dual 850W 80 PLUS Titanium redundant power supply (optional)
AC Input:
- 100-127V~/ 11A, 47-63Hz
- 200-240V~/ 5A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 4A
DC Output:
- Max 850W
+12V/ 70.8A
+12Vsb/ 2.1A
System Management
ASPEED® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
System Fans
8 x 40x40x56mm (23,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
985 x 588 x 250 mm
Packaging Content
1 x R181-Z90
2 x CPU heatsinks
1 x Rail kit
2 x CPU heatsinks
1 x Rail kit
Part Numbers
- Barebone package: 6NR181Z90MR-00-B*
- Motherboard: 9MZ91FS0NR-00-3*
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320D-J1R
- Front panel board - CFP1010: 9CFP1010NR-00*
- Backplane board - CBP1042: 9CBP1042NR-00*
- Riser card - CRS1021: 9CRS1021NR-00*
- Riser card - CRS1015: 9CRS1015NR-00*
- Fan module: 25ST2-44562F-D0R
- Power supply: 25EP0-212008-D0S
Optional parts:
- Airduct dummy for 280W CPU: 25EK4-R18200-S9R
- RJ45 type COM cable: 25CR0-200400-Y4R
- 850W Titanium power supply: 25EP0-208503-D0S
- Internal 2.5" HDD kits:
* 25CFM-600701-A4R QPA:1
* 25CRI-100B01-L5R QPA:1
* 25KS2-130030-S0R QPA:8
- Motherboard: 9MZ91FS0NR-00-3*
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320D-J1R
- Front panel board - CFP1010: 9CFP1010NR-00*
- Backplane board - CBP1042: 9CBP1042NR-00*
- Riser card - CRS1021: 9CRS1021NR-00*
- Riser card - CRS1015: 9CRS1015NR-00*
- Fan module: 25ST2-44562F-D0R
- Power supply: 25EP0-212008-D0S
Optional parts:
- Airduct dummy for 280W CPU: 25EK4-R18200-S9R
- RJ45 type COM cable: 25CR0-200400-Y4R
- 850W Titanium power supply: 25EP0-208503-D0S
- Internal 2.5" HDD kits:
* 25CFM-600701-A4R QPA:1
* 25CRI-100B01-L5R QPA:1
* 25KS2-130030-S0R QPA:8
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
