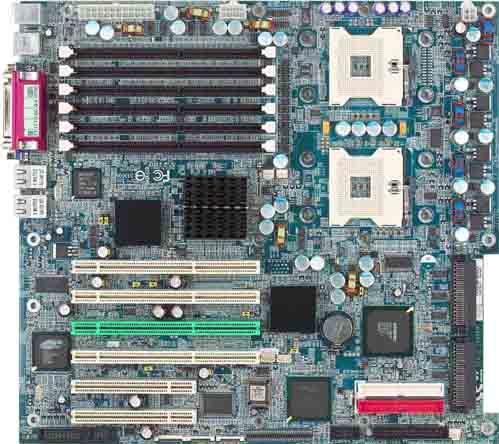

GA-8IPXDR-ELegacy | Software updates supported
- Intel®Plumas E7501/ICH3-S, Dual P64H2*2, ATI® Rage XL 8MB
- Dual Intel® Xeon™ Processors with 512KB L2 Cache (Socket 604/533MHz FSB/3.06GHz)
- Max. 12GB Registered (ECC) DDR-266 Memory in 6 DIMM Slots(Dual Channels)
- Adaptec® 7902W Dual Ultra 320 SCSI Channels
- Intel® RAIDIOS/Adaptec® Zero Channel RAID Enabled PCI-X Slot
- Supports 4 PCI-X slots for 133MHz, 66MHz and 100MHz (3.3V), 2 PCI solt with 32-Bit/33MHz
- Build in Intel® 82546EB single chip with Dual ports Gigabit Ethernet controller (Server Adapter)
- EATX 12”W x 13”D, SSI 3.0 Power (24-Pin, 8-Pin, 4-Pin 12V. Auxiliary), VRM 9.1
- Optional IPMI 1.0 Module
- Specifications
- Support
- Related Resources
Specifications
CPU
- Supports Dual Intel® Xeon Prestonia CPUs up to 3.06 GHz
- 533 Mhz FSB
Chipset
- Intel® E7501 MCH (Memory Controller Hub)
- Intel® ICH 3
- P64H2*2 (PCI-X)
LAN
- Build in Intel® 82546EB single chip with Dual ports Gigabit Ethernet controller
- Wake On LAN (WOL)
- Adapter Fault Tolerance (AFT)
- Adaptive Load Balancing (ALB)
- EtherChannel* (FEC/GEC)
Video
- ATI Rage-XL on board with 8MB memory
IDE / SCSI
- Adaptec® 7902W SCSI Controller
- Dual SCSI Channels (Ultra 320)
- Dual ATA-100 IDE Channels
RAID
- Intel®RAIDIOS (Optioal)
- Adaptec® ASR-2010S Zero Channel RAID card (Optional)
Expansion Slots
- 4 x PCI-X 133/100/66 MHz
- 2 x PCI 32/33 Mhz
Rear I/O
- 2 x PS/2 (Keyboard and Mouse Connectors)
- 4 x USB (2x at Rear, 2x By.Cable)
- 2 x COM (1xRear, 1xBy.Cable)
- 1 x LPT
- 2 x LAN RJ45
