• Supports 800MHz FSB Pentium® 4 Processor with HT Technology
  • Enhances system performance with DDR 400 memory
  • Supports AGP 8X interface for outstanding graphics performance
  • Integrated MirageTM Graphics engine
  • Integrated 6-channel AC’97 audio with Jack-Sensing
  • Integrated Ethernet 10/100Mb Network Connection
  • Provides 6 USB 2.0 ports for high-speed connectivity
  • Introduction

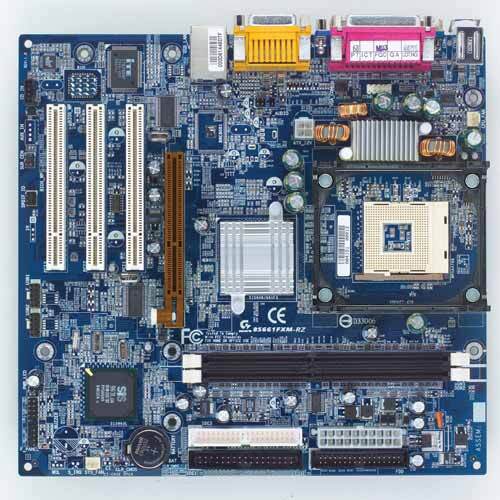

    8S661FXM-RZ is a highly value-oriented P4 platform with excellent performance and impressive features. Empowered by the latest SiS 661FX/963L chipsets, and Gigabyte's R&D expertise, 8S661FXM-RZ delivers a new architecture to uplift the system performance. The new framework supports DDR 400, AGP 8X and Intel® Pentium® 4 platform, especially for the altest 90nm process (Prescott) Pentium® 4 processor with Hyper-Threading Technology, while Hyper Streaming Engine technologies enhances the platform performance to extreme. The integrated graphics, SiS ® MirageTM Graphics engine, provides high quality graphics to ensure outstanding visual experience for multimedia equipments. 8S661FXM-RZ also provides a variety of features such as 6 USB 2.0 ports, 6-channel audio, 10/100Mbps network connection, and high speed ATA133 interface. 8S661FXM-RZ is designed to deliver the best all-in-one solution and fulfill the requirement for full range of applications now and future.
  • RZ Series Motherboard
    The RZ motherboard series is founded on the motto of Reliability, Real Performance and Right value (Three R's) and is dedicated to providing users with a complete featured platform at affordable price.
  • Ready for Intel 90nm process (Prescott) Pentium® 4 processor
    This platform is ready for the latest Pentium® 4 processor (Prescott), built on the new 90 nm technology for levels of performance, stability and productivity higher than ever before.
  • Supports Intel Hyper-Threading Technology
    Experiencing the extraordinary computing power of Pentium 4 processor with Hyper-Threading Technology. Enabling the system to multitask more efficiently than ever before when running the most demanding applications at the same time.
  • Integrated SiS ® MirageTM 2D/3D Graphics Accelerator
    The SiS661FX chipset provides Ultra-AGPII Technology to deliver the highest bandwidth 3.2GB/s by 2 Pixel Rendering Pipelines and 4 Texture 3D Graphic Engine. It also has advanced HW acceleration for DVD playback and shared memory size up to 64MB.
  • Supports DDR 400/333/266 up to 2GB Memory
    Available with 2 DIMM slots supporting up to 2GB of DDR400/DDR333/DDR266 memory, 8S661FXM-RZ provides the highest performance platform with the highest bandwidth (3.2GB/s) mainstream DDR memory solution.
  • Integrated SiS HyperStreaming Engine
    The HyperStreaming Engine, developed for users that have strong needs for bandwidth and speed, optimizes the performance of the entire computer system. It smartly manages the data streaming to flow effortlessly from the peripherals to the core logic chipsets, between the North and South bridge and to the front side bus, memory and graphic interface. This greatly improves the total performance of desktop platform.
  • Great Expandability of 6 USB 2.0 ports
    USB 2.0 interface, with data transfer rate up to 480Mbps, is 40 times faster than USB1.1, providing a faster interface for computer peripherals.
  • Integrated High quality 6-Channel AC97 Audio
    Integrated Realtek ALC662 audio CODEC chip, enabling users to experience the seamless high quality 6-channel audio while watching movies or gaming
  • Ethernet 10/100Mbps Network Connection
    On-board 10/100 Mbps Ethernet LAN connectivity for value-minded users who need straightforward network connectivity.
  • Norton Internet Security™ Included
    Norton Internet Security™ 2004 is the essential protection from viruses, hackers, and privacy threats. It protects user during the online activities such as e-mailing, shopping, banking, and game playing.

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
