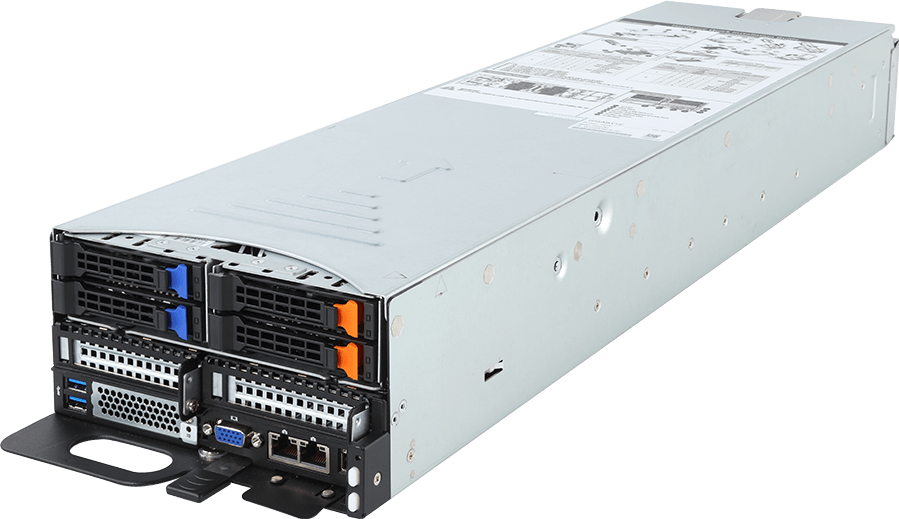

- TO22-Z61
TO22-Z61 (rev. A00)
AMD EPYC™ DP Compute Nodes
- Dual AMD EPYC™ 7002 and 7001 series processor family
- 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
- 2 x 1Gb/s LAN ports (Intel® I350-AM2)
- 1 x Dedicated management port
- 2 x 2.5" hybrid NVMe/SATA/SAS + 2 x 2.5" SATA/SAS hot-swap bays
- 2 x PCIe Gen3 expansion slots
- 1 x OCP Gen3 x16 mezzanine slot
- AST2500 Graphics & Remote Management Controller
Request a Quote
* I materiali qui forniti sono solo di riferimento. GIGABYTE si riserva il diritto di modificare o rivedere il contenuto in qualsiasi momento senza preavviso.
* Le prestazioni pubblicate si basano su valori massimi teorici fornite dai rispettivi fornitori di chipset o organizzazione che hanno definito le specifiche di interfaccia. Le prestazioni effettive possono variare in base alla configurazione del sistema.
* Tutti i marchi ei loghi sono di proprietà dei rispettivi titolari.
* A causa dell'architettura standard del PC, una certa quantità di memoria è riservata al sistema e quindi la capacità di memoria reale è inferiore a quella dichiarata.
* Le prestazioni pubblicate si basano su valori massimi teorici fornite dai rispettivi fornitori di chipset o organizzazione che hanno definito le specifiche di interfaccia. Le prestazioni effettive possono variare in base alla configurazione del sistema.
* Tutti i marchi ei loghi sono di proprietà dei rispettivi titolari.
* A causa dell'architettura standard del PC, una certa quantità di memoria è riservata al sistema e quindi la capacità di memoria reale è inferiore a quella dichiarata.
SPECIFICATIONS
Dimensions (WxHxD, mm)
3 Nodes/ 2OU
180 x 90 x 690
180 x 90 x 690
Motherboard
MZ61-HD2
CPU
AMD EPYC™ 7002 series processor family
Single processor, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
cTDP up to 200W
Compatible with AMD EPYC™ 7001 series processor family
Single processor, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
cTDP up to 200W
Compatible with AMD EPYC™ 7001 series processor family
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/ 2933 MHz
- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/ 2933 MHz
- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz
LAN
2 x 1Gb/s LAN ports (Intel® I350-AM2)
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Storage
Front side: 2 x 2.5" hybrid NVMe/SATA/SAS + 2 x 2.5" SATA/SAS hot-swap bays
SATA
SAS
Add-on card available
RAID
Optional
Expansion Slots
2 x PCIe x16 (Gen3 x16) slots, Low profile, half length
1 x OCP mezzanine slot (Gen3 x16)
1 x OCP mezzanine slot (Gen3 x16)
Front I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
8 x HDD LED
1 x System status LED
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
8 x HDD LED
1 x System status LED
Rear I/O
Power Supply
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Server Management (GSM)
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Server Management (GSM)
Weight
6.24kg

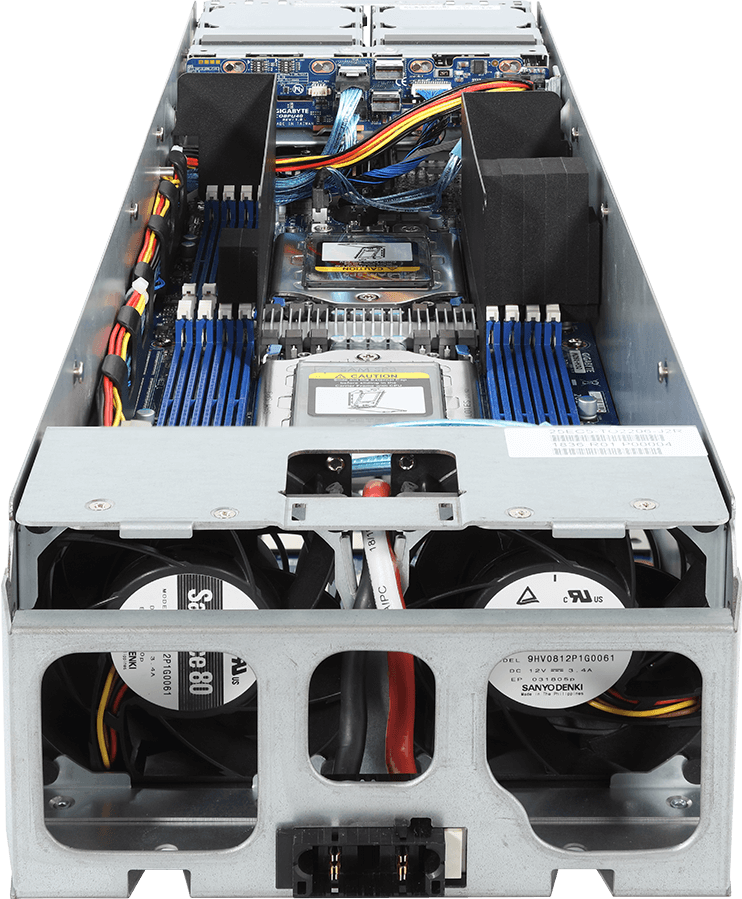

System Fans

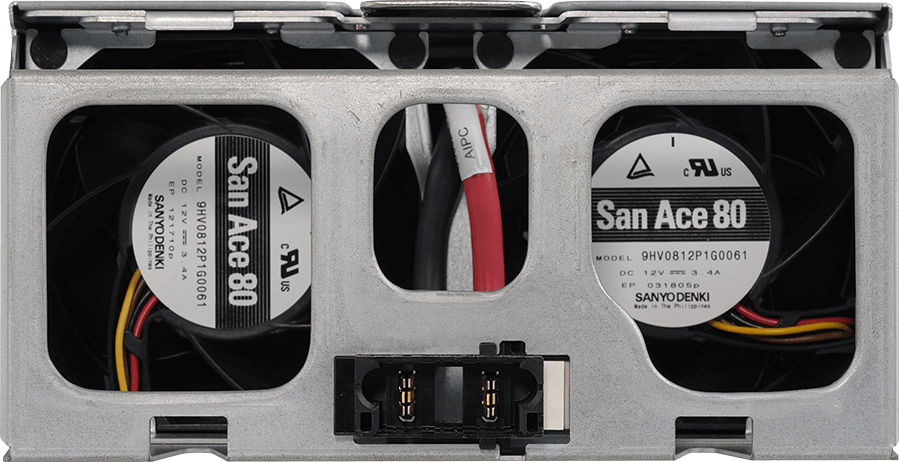

2 x 80x80x38mm (14900rpm) fan modules per nodes
Packaging Dimensions
980 x 339 x 239 mm
Packaging Content
1 x TO22-Z61
Part Numbers
Barebone package: 6NTO22Z61MR-00-A*
Spare parts:
- Motherboard: 9MZ61HD2NR-00-2*
- CPU heatsink: 25ST1-15320E-J1R/ 25ST1-363100-C1R
Spare parts:
- Motherboard: 9MZ61HD2NR-00-2*
- CPU heatsink: 25ST1-15320E-J1R/ 25ST1-363100-C1R
* I materiali qui forniti sono solo di riferimento. GIGABYTE si riserva il diritto di modificare o rivedere il contenuto in qualsiasi momento senza preavviso.
* Le prestazioni pubblicate si basano su valori massimi teorici fornite dai rispettivi fornitori di chipset o organizzazione che hanno definito le specifiche di interfaccia. Le prestazioni effettive possono variare in base alla configurazione del sistema.
* Tutti i marchi ei loghi sono di proprietà dei rispettivi titolari.
* A causa dell'architettura standard del PC, una certa quantità di memoria è riservata al sistema e quindi la capacità di memoria reale è inferiore a quella dichiarata.
