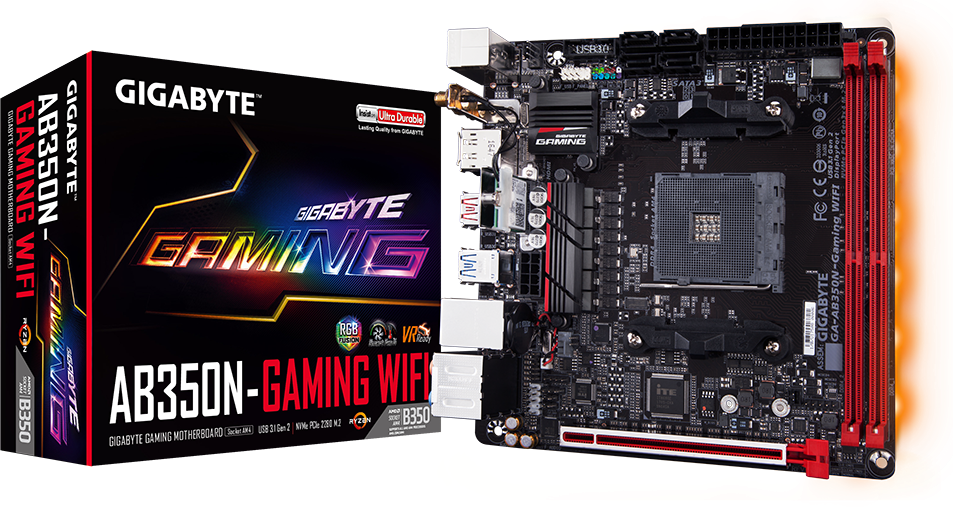

GA-AB350N-Gaming WIFI (Rev. 1.0)

AMD B350 chipset
Key FeaturesSpecificheSupportoNotizie/RiconoscimentiLearn MoreWhere to Buy

Specifiche

  • CPU
    1. AM4 Socket: Supports AMD 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
    (Please refer "CPU Support List" for more information.)
    Note: If the motherboard PCB is rev1.0, please must check “Support-> FAQ” for more information.
  • Chipset
    1. AMD B350
  • Memory
    1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
    2. Dual channel memory architecture
    3. Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
      * Support for higher than DDR4 2667 MHz may vary by CPU.
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
      * ECC is only supported with AMD Ryzen™ and Athlon™ of PRO-series CPU.
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
  • Integrated Graphics Processor:
    1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.2 version.
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
      * Support for HDMI 1.4 version.
    Maximum shared memory of 2 GB

    * Actual support may vary by CPU.
  • Audio
    1. Realtek® ALC1220 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Wireless Communication module
    1. Intel® Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
    2. BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1, 2.1+EDR
    3. Support for 11ac wireless standard and up to 433 Mbps data rate
      * Actual data rate may vary depending on environment and equipment.
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16
      (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    2. 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
  • Storage Interface
    1. 1 x M.2 Socket 3 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4*/x2 SSD support)
      * Actual support may vary by CPU.
    2. 4 x SATA 6Gb/s connectors
    3. Support for RAID 0, RAID 1, and RAID 10
  • USB
  • Chipset:
    1. 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
    2. 2 x USB 3.1 Gen 1 ports available through the internal USB header
    3. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    Integrated in the CPU:
    1. 4 x USB 3.1 Gen 1 ports on the back panel
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x system fan header
    5. 4 x SATA 6Gb/s connectors
    6. 1 x M.2 Socket 3 connector on the back of the motherboard
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x USB 3.1 Gen 1 header
    10. 1 x USB 2.0/1.1 header
    11. 1 x CPU cooler LED strip/RGB LED strip extension cable header
    12. 1 x RGB (RGBW) LED strip extension cable header
    13. 1 x Trusted Platform Module (TPM) header
    14. 1 x S/PDIF Out header
    15. 1 x speaker header
    16. 1 x Clear CMOS jumper
    17. 1 x chassis intrusion header
  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 2 x SMA antenna connectors
    3. 1 x DisplayPort
    4. 1 x HDMI port
    5. 2 x USB 2.0/1.1 ports
    6. 2 x USB 3.1 Gen 2 Type-A ports (red)
    7. 4 x USB 3.1 Gen 1 ports
    8. 1 x RJ-45 port
    9. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      3D OSD
      RGB Fusion
      AutoGreen
      BIOS Setup
      Cloud Station
      Color Temperature
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      Smart Backup
      Smart Keyboard
      Smart TimeLock
      System Information Viewer
      USB Blocker
      V-Tuner
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Bundle Software
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Operating System
    1. Support for Windows 10 64-bit
    2. Support for Windows 7 64-bit
      * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
      * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
  • Form Factor
    1. Mini-ITX Form Factor; 17.0cm x 17.0cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • CPU
      1. AM4 Socket: Supports AMD 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
      (Please refer "CPU Support List" for more information.)
      Note: If the motherboard PCB is rev1.0, please must check “Support-> FAQ” for more information.
    • Chipset
      1. AMD B350
    • Memory
      1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
      2. Dual channel memory architecture
      3. Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
        * Support for higher than DDR4 2667 MHz may vary by CPU.
      4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
        * ECC is only supported with AMD Ryzen™ and Athlon™ of PRO-series CPU.
      5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      6. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • Onboard Graphics
    • Integrated Graphics Processor:
      1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
        * Support for DisplayPort 1.2 version.
      2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
        * Support for HDMI 1.4 version.
      Maximum shared memory of 2 GB

      * Actual support may vary by CPU.
    • Audio
      1. Realtek® ALC1220 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
      4. Support for S/PDIF Out
    • LAN
      1. Realtek® GbE LAN chip (10/100/1000 Mbit)
    • Wireless Communication module
      1. Intel® Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
      2. BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1, 2.1+EDR
      3. Support for 11ac wireless standard and up to 433 Mbps data rate
        * Actual data rate may vary depending on environment and equipment.
    • Expansion Slots
      1. 1 x PCI Express x16 slot, running at x16
        (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
      2. 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
    • Storage Interface
      1. 1 x M.2 Socket 3 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4*/x2 SSD support)
        * Actual support may vary by CPU.
      2. 4 x SATA 6Gb/s connectors
      3. Support for RAID 0, RAID 1, and RAID 10
    • USB
    • Chipset:
      1. 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
      2. 2 x USB 3.1 Gen 1 ports available through the internal USB header
      3. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
      Integrated in the CPU:
      1. 4 x USB 3.1 Gen 1 ports on the back panel
    • Internal I/O Connectors
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 1 x CPU fan header
      4. 1 x system fan header
      5. 4 x SATA 6Gb/s connectors
      6. 1 x M.2 Socket 3 connector on the back of the motherboard
      7. 1 x front panel header
      8. 1 x front panel audio header
      9. 1 x USB 3.1 Gen 1 header
      10. 1 x USB 2.0/1.1 header
      11. 1 x CPU cooler LED strip/RGB LED strip extension cable header
      12. 1 x RGB (RGBW) LED strip extension cable header
      13. 1 x Trusted Platform Module (TPM) header
      14. 1 x S/PDIF Out header
      15. 1 x speaker header
      16. 1 x Clear CMOS jumper
      17. 1 x chassis intrusion header
    • Back Panel Connectors
      1. 1 x PS/2 keyboard/mouse port
      2. 2 x SMA antenna connectors
      3. 1 x DisplayPort
      4. 1 x HDMI port
      5. 2 x USB 2.0/1.1 ports
      6. 2 x USB 3.1 Gen 2 Type-A ports (red)
      7. 4 x USB 3.1 Gen 1 ports
      8. 1 x RJ-45 port
      9. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
    • I/O Controller
      1. iTE® I/O Controller Chip
    • H/W Monitoring
      1. Voltage detection
      2. Temperature detection
      3. Fan speed detection
      4. Overheating warning
      5. Fan fail warning
      6. Fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 1 x 128 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Unique Features
      1. Support for APP Center
        * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
        3D OSD
        RGB Fusion
        AutoGreen
        BIOS Setup
        Cloud Station
        Color Temperature
        EasyTune
        Fast Boot
        Game Boost
        ON/OFF Charge
        Smart Backup
        Smart Keyboard
        Smart TimeLock
        System Information Viewer
        USB Blocker
        V-Tuner
      2. Support for Q-Flash
      3. Support for Xpress Install
    • Bundle Software
      1. Norton® Internet Security (OEM version)
      2. cFosSpeed
    • Operating System
      1. Support for Windows 10 64-bit
      2. Support for Windows 7 64-bit
        * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
        * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
    • Form Factor
      1. Mini-ITX Form Factor; 17.0cm x 17.0cm
    • Remark
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
