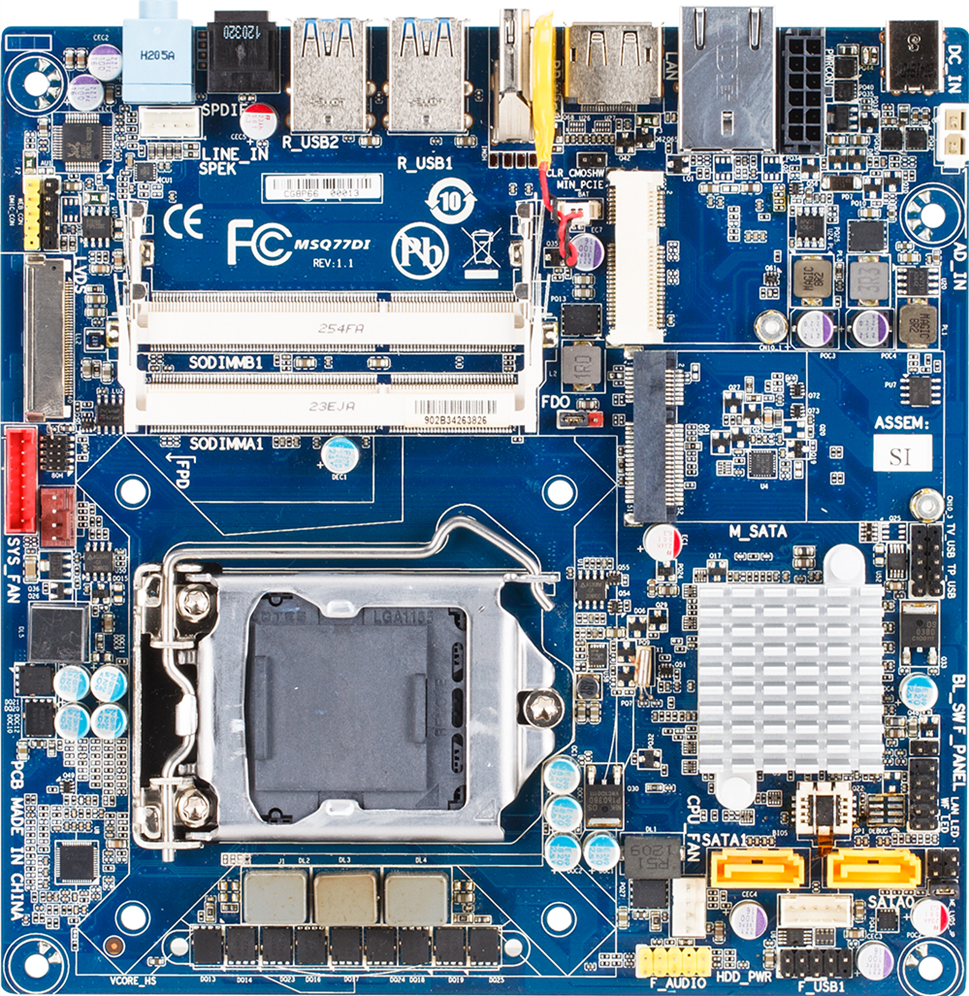

MSQ77DILegacy | Firmware updates supported
Intel® Q77 chipset
- Thin Mini-ITX form factor
- Intel® 2nd/3th Gen. Core™ processors
- 2 x SO-DIMM, up to 8GB 1600/1333MHz
- 1 x GbE LAN
- 2 x SATA III 6Gbs ports
- Specifications
- Support
Specifications
Form Factor
Thin Mini-ITX
170W x 170D (mm)
2.5cm thick I/O shield
170W x 170D (mm)
2.5cm thick I/O shield
CPU
LGA 1155 socket
Intel® 2nd/3rd Core™ processors
Intel® 2nd/3rd Core™ processors
Chipset
Intel® Q77 chipset
Memory
2 x SO-DIMM slots
Up to 8GB DDR3 memory
1600/1333MHz
Up to 8GB DDR3 memory
1600/1333MHz
LAN
1 x GbE LAN
Intel® 82579LM
Supports AMT 8.0
Intel® 82579LM
Supports AMT 8.0
Video
Intel® integrated graphics
Audio
Realtek ALC887
- Support High Definition Audio
- Support speaker 2 Channel: 3W / 4ohm 2ch
- Support 7.1 Channel Jack
SATA
2 x SATA III 6Gbs
RAID
-
Expansion Slots
1 x mSATA 3Gbs
1 x Mini-PCIe (half size)
1 x Mini-PCIe (half size)
Internal I/O
1 x Back light connector
1 x Front audio header
5 x USB 2.0
1 x System fan
1 x CPU fan
1 x Front panel header
1 x Speaker
1 x LVDS
1 x FPD header
1 x digital MIC header
1 x Front audio header
5 x USB 2.0
1 x System fan
1 x CPU fan
1 x Front panel header
1 x Speaker
1 x LVDS
1 x FPD header
1 x digital MIC header
Rear I/O
4 x USB 3.0
1 x DisplayPort
1 x HDMI-Out
1 x S/PDIF-Out
1 x Audio jack
1 x RJ45
1 x DC-In
1 x DisplayPort
1 x HDMI-Out
1 x S/PDIF-Out
1 x Audio jack
1 x RJ45
1 x DC-In
OS Supported
Windows 7 (32/64bit)
Windows 8 (32/64bit)
Windows 8 (32/64bit)
Power Supply
DC-In 19V or 12V
