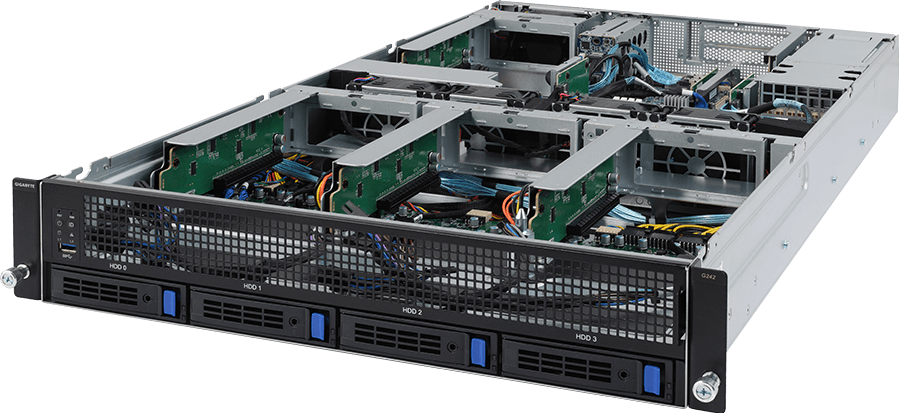

G242-Z10 (rev. 100)
(rev.A00)
HPC Server - 2U UP 4 x GPU Gen3 Server
| Application:
AI
,
AI Training
,
AI Inference
&
HPC
Application:
- Up to 4 x NVIDIA Tesla® PCIe GPU cards
- NVIDIA® NGC™ Ready server
- Single AMD EPYC™ 7002 series processor family
- 8-Channel RDIMM/LRDIMM DDR4 per processor, 8 x DIMMs
- 2 x 1Gb/s LAN ports (Intel® I350-AM2)
- 1 x dedicated management port
- 4 x SATA 3.5" hot-swappable HDD/SSD bays in front side
- 2 x NVMe/SAS/SATA 2.5" hot-swappable HDD/SSD bays in rear side
- Ultra-Fast M.2 with PCIe Gen3 x4 interface
- 2 x PCIe Gen3 expansion slots
- 1 x OCP 2.0 Gen3 x16 mezzanine slots
- Aspeed® AST2500 remote management controller
- 2 x 80 PLUS Platinum 1600W redundant PSU
Request a Quote
* ここに記載されている全ての資料は参考用です。 GIGABYTEは、予告なしに変更する場合があります。
* パフォーマンスについては、インターフェイス仕様の理論上の最大値に基づいています。 実際のパフォーマンスは、システム構成によって異なる場合があります。
* 記載されている会社名、商品名、およびロゴは各社の商標または登録商標です。
* メモリー容量は、システムリソースに予約され実際の搭載メモリーより少なくなる場合があります。
* パフォーマンスについては、インターフェイス仕様の理論上の最大値に基づいています。 実際のパフォーマンスは、システム構成によって異なる場合があります。
* 記載されている会社名、商品名、およびロゴは各社の商標または登録商標です。
* メモリー容量は、システムリソースに予約され実際の搭載メモリーより少なくなる場合があります。
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
438 x 87.5 x 820
438 x 87.5 x 820
Motherboard
MZ12-HD1
CPU
AMD EPYC™ 7002 series processor family
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Fully support 280W
Compatible with AMD EPYC™ 7001 series processor family
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Fully support 280W
Compatible with AMD EPYC™ 7001 series processor family
Socket
Socket SP3
Chipset
System on Chip
Memory
8 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200 MHz
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200 MHz
LAN
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage
Front side: 4 x 3.5" SATA hot-swappable HDD/SSD bays
2.5" HDD/SSD supported
SATA devices supported only
Rear side: 2 x 2.5" NVMe/SAS/SATA hybrid hot-swappable HDD/SSD bays
SAS card is required for SAS devices support
2.5" HDD/SSD supported
SATA devices supported only
Rear side: 2 x 2.5" NVMe/SAS/SATA hybrid hot-swappable HDD/SSD bays
SAS card is required for SAS devices support
SATA
Supported
SAS
Depend on SAS Card
RAID
-
Peripheral Drives
-
Expansion Slots
4 x PCIe x16 slots (Gen3 x16 bus) for GPUs
Riser Card CRSG027:
- 1 x PCIe x16 slot (Gen3 x16 or x8), FHHL
- 1 x PCIe x8 slots (Gen3 x0 or x8), FHHL
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4)
1 x onboard M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280/22110 cards
- CPU TDP is limited to 180W if using M.2 device
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
Riser Card CRSG027:
- 1 x PCIe x16 slot (Gen3 x16 or x8), FHHL
- 1 x PCIe x8 slots (Gen3 x0 or x8), FHHL
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4)
1 x onboard M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280/22110 cards
- CPU TDP is limited to 180W if using M.2 device
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
Internal I/O
1 x TPM header
1 x Front panel header
1 x Front panel header
Front I/O
1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
Rear I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID LED
1 x VGA
2 x RJ45
1 x MLAN
1 x ID LED
Backplane I/O
Front side_CBPG041: 4 x SATA/SAS ports
Rear side_CBP2021: 2 x NVMe/SATA/SAS ports
Speed and bandwidth: SATA 6Gb/s, SAS 12Gb/s or PCIe x4 per port
Rear side_CBP2021: 2 x NVMe/SATA/SAS ports
Speed and bandwidth: SATA 6Gb/s, SAS 12Gb/s or PCIe x4 per port
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
2 x 1600W redundant PSUs
80 PLUS Platinum
AC Input:
- 100-120V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz
DC Output:
- Max 1000W/ 100-120V~
+12V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 200-240V or 240Vdc Input
+12V/ 133A +12Vsb/ 2.5A
+12V/ 133A +12Vsb/ 2.5A
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019
Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later
SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later
Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
Citrix Hypervisor 8.1.0 or later
Windows Server 2019
Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later
SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later
Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
Citrix Hypervisor 8.1.0 or later
Weight
Net Weight: 18.2 kg
Gross Weight: 28.5 kg
Gross Weight: 28.5 kg
System Fans
5 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
NOTE: Please contact Technical Support for more information about optimized GPU operating temperature
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
NOTE: Please contact Technical Support for more information about optimized GPU operating temperature
Packaging Content
1 x G242-Z10
1 x CPU heatsink
1 x Rail kit
1 x CPU heatsink
1 x Rail kit
Part Numbers
Barebone with rail kit: 6NG242Z10MR-00
- Motherboard: 9MZ12HD1NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Back plane board_4-port: 9CBPG041NR-00
- Back plane board_2-port: 9CBP2021NR-00
- Front panel board: 9CFP1000NR-00
- Power supply: 25EP0-216007-L0S
- Motherboard: 9MZ12HD1NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Back plane board_4-port: 9CBPG041NR-00
- Back plane board_2-port: 9CBP2021NR-00
- Front panel board: 9CFP1000NR-00
- Power supply: 25EP0-216007-L0S
* ここに記載されている全ての資料は参考用です。 GIGABYTEは、予告なしに変更する場合があります。
* パフォーマンスについては、インターフェイス仕様の理論上の最大値に基づいています。 実際のパフォーマンスは、システム構成によって異なる場合があります。
* 記載されている会社名、商品名、およびロゴは各社の商標または登録商標です。
* メモリー容量は、システムリソースに予約され実際の搭載メモリーより少なくなる場合があります。
* パフォーマンスについては、インターフェイス仕様の理論上の最大値に基づいています。 実際のパフォーマンスは、システム構成によって異なる場合があります。
* 記載されている会社名、商品名、およびロゴは各社の商標または登録商標です。
* メモリー容量は、システムリソースに予約され実際の搭載メモリーより少なくなる場合があります。
SUPPORT
- Choose your OS
- Choose your OS
- Windows Server 2019
- Windows Server 2016 64bit
Chipset
Chipset
バージョン
サイズ
日付
AMD Chipset Driver
For AMD EPYC 7001/ 7002
For AMD EPYC 7001/ 7002
Version : 1.07.12.1102
17.05 MB
2019/08/06
OS: Windows Server 2016 64bit,Windows Server 2019
LAN
LAN
バージョン
サイズ
日付
Intel® LAN Driver and Utility
Version : 24.0
542.58 MB
2019/08/06
OS: Windows Server 2016 64bit,Windows Server 2019
VGA
VGA
バージョン
サイズ
日付
ASPEED Graphic Driver
Version : 1.06
1.78 MB
2019/08/06
OS: Windows Server 2016 64bit,Windows Server 2019
BIOS
詳細
バージョン
サイズ
日付
1. Updated AGESA 1.0.0.8
2. Updated Redfish feature
3. Security update for CVE-2020-10255 and CVE-2020-10713
4. Fixed after clean CMOS system hang issue
2. Updated Redfish feature
3. Security update for CVE-2020-10255 and CVE-2020-10713
4. Fixed after clean CMOS system hang issue
Version : R16_F01
24.16 MB
2020/10/16
1. Fixed system wait long time randomly when boot in OS
2. Fixed redfish load boot order default fail
2. Fixed redfish load boot order default fail
Version : R15_F01
24.01 MB
2020/07/08
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.39 MB
2020/04/27
注意:
BIOSのアップデートは注意して行ってください。
なお、現在のBIOSバージョンで問題が発生していない場合は、アップデートを行う必要はありません。BIOSアップデートに失敗すると、PCが起動しなくなる可能性があります。
BETAとは何ですか?
BETAは仕様確定前の機能プレビュー版です。このバージョンは、新機能に対するお客様からのご要望やご意見を頂くためのものです。
BIOSのアップデートは注意して行ってください。
なお、現在のBIOSバージョンで問題が発生していない場合は、アップデートを行う必要はありません。BIOSアップデートに失敗すると、PCが起動しなくなる可能性があります。
BETAとは何ですか?
BETAは仕様確定前の機能プレビュー版です。このバージョンは、新機能に対するお客様からのご要望やご意見を頂くためのものです。
- Choose your OS
- Choose your OS
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
ユーティリティリスト
詳細
バージョン
サイズ
日付
GSM CLI
Version : 2.1.44
114.54 MB
2021/03/06
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019
GSM Server
Version : 2.04
1147.65 MB
2020/12/04
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 1.02
671.51 MB
2018/09/21
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
Firmware
詳細
バージョン
サイズ
日付
BMC Firmware with embedded GIGABYTE Management Console
(AST2500 AMI)
1. ErP Lot9 Supported
2. Guidelines to Preserve Configuration Settings (ErP Lot9 Update)
3. Vertiv BMC EOL & Update Procedure
(AST2500 AMI)
1. ErP Lot9 Supported
2. Guidelines to Preserve Configuration Settings (ErP Lot9 Update)
3. Vertiv BMC EOL & Update Procedure
Version : 12.49.06
94.56 MB
2020/11/29
英語
BMC Firmware with embedded GIGABYTE Management Console
(AST2500 AMI)
1. Vertiv BMC EOL & Update Procedure
2. Guidelines to Preserve Configuration Settings (ErP Lot9 Update)
(AST2500 AMI)
1. Vertiv BMC EOL & Update Procedure
2. Guidelines to Preserve Configuration Settings (ErP Lot9 Update)
Version : 12.40.30
84.21 MB
2020/03/08
英語
マニュアルの
詳細
バージョン
サイズ
日付
Resources
Success Case
Articles
Solutions
Networking / 5G
5G MEC Networking Platform
A MEC (Multi-access Edge Computing / Mobile Edge Computing) platform based on GIGABYTE's server hardware provides an effective way to support a new generation of 5G services such as eMBB for high bandwidth content streaming, URLLC for autonomous driving or mMTC for a smart city IoT network
White Paper
White Paper
5G iMEC Networking Platform
[SOLUTION BRIEF] In order to upgrade their infrastructure to meet the latency and Quality of Service (QoS) requirements of 5G while reducing costs, commercial or private network operators can implement a Multi-Access Edge Computing (MEC) architecture, and utilize Network Functions Virtualization (NFV) together with general purpose servers to implement Virtual Evolved Packet Core (vEPC) technology, replacing expensive proprietary hardware and software.
Submission Successful
Success Case | October 26, 2020
Decoding the Storm with GIGABYTE’s Computing Cluster
Waseda University, the “Center for Disaster Prevention around the World”, has built a computing cluster with GIGABYTE’s GPU server and tower servers. They use it to study and prepare for natural disasters, such as tsunamis and storm surges. Efforts go into understanding the tropical cyclones of tomorrow, which are thought to become more dangerous due to climate change.
Tech Guide | March 16, 2021
How to Pick a Cooling Solution for Your Servers? A Tech Guide by GIGABYTE
As CPUs and GPUs continue to advance, they consume more power and generate more heat. It is vital to keep temperature control in mind when purchasing servers. A good cooling solution keeps things running smoothly without hiking up the energy bill or requiring persistent maintenance. GIGABYTE Technology, an industry leader in high-performance servers, presents this tech guide to help you choose a suitable cooling solution. We analyze three popular options—air, liquid, immersion—and demonstrate what GIGABYTE can do for you.
Video


Video | April 12, 2021
Compact GPU Powerhouse: 2U GIGABYTE Server with 8 x GPUs
Designing a 2U server that can accommodate up to 8 dual slot GPUs was a challenge, and the G292-Z40 delivers without sacrificing performance using isolated ...


Video | April 12, 2021
Extreme GPU Powerhouse: 4U GIGABYTE Servers with 10 x GPUs
Showcasing the ultimate in performance for GPU accelerated workloads, the G492-HA0 can house up to 10 high-performing (PCIe Gen 4) GPUs such as the ...


Video | April 09, 2021
技嘉科技 X AMD X 建達國際「高效運算 智能無限」研討會
技嘉科技與AMD以及新夥伴建達國際攜手舉辦「高效運算智能無限」研討會,4/8於台北大直典華隆重登場,會中除介紹最新一代AMD EPYC 7003處理器的優異效能外 ...


Video | April 08, 2021
List of New GIGABYTE Products for 3rd Gen Intel Xeon Scalable Processors
Intel has made incredible advances with its 40+ SKUs of 3rd Gen Intel Xeon Scalable processors. Higher core count, PCIe 4.0 support with up to 64 lanes per socket, increase in memory bandwidth and total system memory per socket, as well as AI and security boosts have been added while maintaining a competitive price to make these servers an excellent choice for upcoming new sever builds or legacy servers looking to upgrade from prior generations.


Video | March 30, 2021
60秒小科普:看懂什麼是液體冷卻 Liquid Cooling
什麼是液體冷卻Liquid Cooling? 液冷技術(Liquid Cooling)顧名思義就是以液體作為熱量傳導機制的散熱方式,市場上常見的有沉浸式液冷 ...


Video | March 29, 2021
What is it? Liquid Cooling in 60 seconds
What is Liquid Cooling? As the name suggests, liquid cooling technology uses liquid as a heat transfer mechanism. Two common liquid ...


Video | March 25, 2021
What is it? Data Center in 60 Seconds
What is a data center? A data center is a facility that an organization uses for housing their IT equipment, including servers, storage, ...


Video | March 25, 2021
60秒小科普:看懂什麼是 Data Center 資料中心
數據中心是什麼? 數據中心(Data Center)是容納組織中IT設備的設施,包括伺服器、儲存、網路設備(如交換機、路由器和防火牆),以及組織和 ...


Video | March 24, 2021
How to upgrade to Milan TW
如果你手上有相容AMD EPYC 7002 CPU的技嘉伺服器,只要透過更新BIOS就可以輕鬆升級到第三代EPYC,請參考技嘉官網針對第三代EPYC的伺服器支援清單( ...


Video | March 24, 2021
How to upgrade your system to AMD EPYC 3rd Gen Processors?
If you have a GIGABYTE server designed for AMD EPYC 7002 Series processors, you can painlessly upgrade your system with a BIOS update. On GIGABYTE's ...


Video | March 22, 2021
A Place for All Enterprise Things
Find Your Enterprise Solutions at https://bit.ly/2PfpQ6q This new enterprise homepage will provide easier access for IT professionals and businesses to find ...


Video | March 18, 2021
Ready for our new program "GIGABYTE Tech Tune-In"
Tune in to GIGABYTE'S EXCLUSIVE 'CHANNEL' for webinars, insights, and product solutions on topics of technologies that are transforming the world today.


Video | March 17, 2021
技嘉搭載新一代AMD EPYC系列伺服器,第一波全線公開
技嘉科技首波發表搭載新一代AMD EPYC™ 7003 系列處理器的新伺服器產品如下。整體而言,此新一代搭載AMD EPYC™ 7003 系列處理器的伺服器在單一核心 ...


Video | March 16, 2021
GIGABYTE Launches 1st Wave of Servers for AMD EPYC™ 7003 Series Processors
GIGABYTE servers have been tested and are ready for AMD EPYC 7003 Series processors. The following is a list of models available in the 1st wave ready for ...


Video | March 15, 2021
GIGABYTE Servers and 3rd generation AMD EPYC™ Processors
GIGABYTE announced over 40 servers and server motherboards ready for the new AMD EPYC™ 7003 Series processors. These new servers will target modern ...
News
News | December 04, 2020
Showcasing AMD-Based Solutions and Successes at Annual GIGABYTE-Weikeng Partner Conference
EPYC™ Series Processers Offer Value and Performance, Bringing HPC to Particle Physics, Space Exploration, and Climate Change Studies
Media Review
Security & Technical Advisory
Others
Back to G242-Z10

比較する
すべて削除
最大5個のモデルが選択されています
閉じる
Contact our sales team
Please contact us if you would like to know more about our products. For services and support, please visit eSupport.
* Inquiries:
* Are you a system integrator?
To ensure our emails be delivered to your inbox, please avoid using free-to-use email services such as Yahoo, Gmail, Hotmail etc.
0 / 1000
Submitted Successfully
