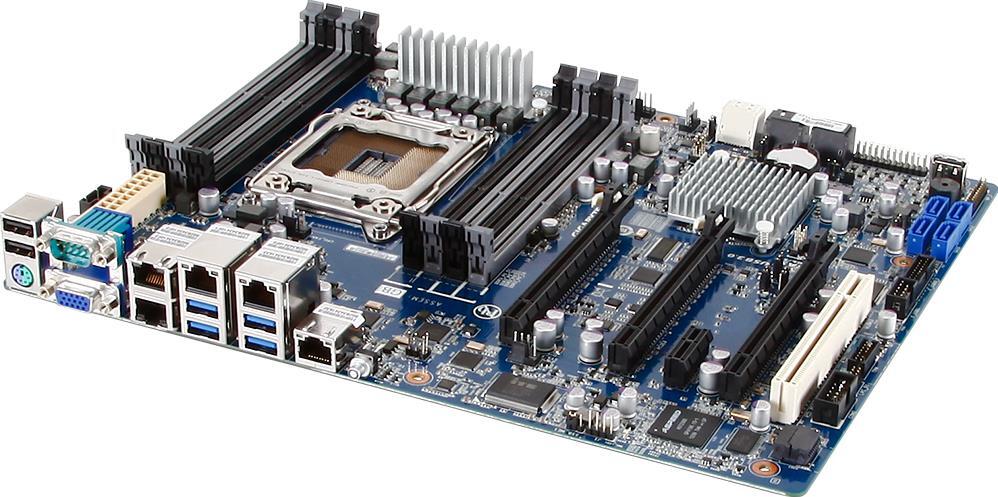

GA-6PXSV4Legacy | Software updates supported

ATX
305W x 244D (mm)

Supports:

• Intel^® Xeon^® E5-2600 V2 processors
• Intel^® Xeon^® E5-1600 V2 processors
• Intel^® Xeon^® E5-2600 processors
• Intel^® Xeon^® E5-1600 processors

1 x LGA 2011
Mounting pitch: narrow ILM (56x94mm)
Recommended cooling device dimension: 70x106mm
Compatible coolers (for reference only):

• Noctua NH-U12DX i4
• Dynatron R25
• Dynatron T318A
• Dynatron R23
• Dynatron T318
• Dynatron R13
• Dynatron R19
• Dynatron R14
• Dynatron R12

Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard

Intel^® C604

8 x DIMM slots
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz

*Supported by Intel^® Xeon^® E5-2600 V2 processors only

Download the detailed memory configuration table for the E5-1600/2600 V2 processors
Download the detailed memory configuration table for the E5-1600/2600 processors

4 x GbE LAN ports (Intel^® 82574L)
1 x 10/100 management LAN

Integrated in Aspeed^® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

-

4 x SAS 3Gb/s ports

2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports

Intel^® SATA RAID 0/1/10/5
Intel^® SAS RAID 0/1/10

1 x PCIe x16 (Gen3 x16 bus) slot
2 x PCIe x16 (Gen3 x8 bus) slots
1 x PCIe x1 (Gen2 x1 bus) slot
1 x PCI slot

or (via PCIe switch) :

2 x PCIe x16 (Gen3 x16 bus) slots
1 x PCIe x1 (Gen2 x1 bus) slot
1 x PCI slot

Supports NVIDIA^® SLI™ and AMD^® CrossFireX™ technologies (2-way, 3-way)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
4 x System fan headers
1 x Power management connector
2 x SATA III 6GB/s ports
4 x SATA II 3GB/s ports
1 x Front panel header
1 x SATA SGPIO header
1 x SATA port 1 DOM support jumper
1 x SATA port 0 DOM support jumper
1 x Clear password jumper
1 x Chassis intrusion jumper
1 x Clear CMOS jumper
1 x USB 2.0 Type A connector
1 x Back plane board header
4 x SAS 3Gb/s ports
1 x BIOS Recovery jumper
1 x USB 3.0 header
1 x USB 2.0 header
1 x SAS SGPIO header
1 x BIOS Write Protect jumper
1 x Force to Stop FRB3 Timer jumper
1 x TPM header
1 x Serial header
1 x ME Recovery jumper

4 x USB 3.0
2 x USB 2.0
1 x PS/2
1 x VGA
1 x Serial
5 x RJ45
1 x ID button with LED

1 x TPM header

Windows Server 2008 SP2 (x86)
Windows Server 2008 R2 SP1 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows 7 (x86/x64)

Red Hat Enterprise Linux 5.7 & 6.1 (x86/x64)

SUSE Linux Enterprise Server 11.1 (x86/x64)

VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2

Aspeed^® AST2300 management controller
Avocent^® MergePoint IPMI 2.0 web interface:

• Network settings
• Network security settings
• Users control
• Services settings
• IPMI settings
• Sessions control
• LDAP settings
• Power control
• Voltages, fans and temperatures monitoring
• System event log
• Events management (platform events, trap settings, email settings)
• Serial Over LAN
• vKVM & vMedia (launch, configuration)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

1 x Driver CD
1 x I/O shield
1 x Dual USB 3.0 ports front panel
1 x Dual USB 2.0 ports bracket
1 x Serial port bracket
2 x SATA III 6Gb/s cables (600mm)
4 x SATA II 3Gb/s cables (500mm)

Retail: 9M6PXSV4MS-00
Bulk: 9M6PXSV4NS-00
