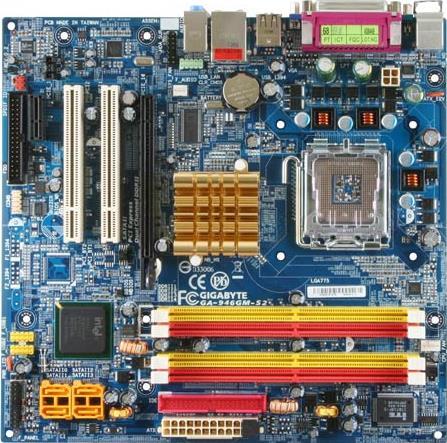

GA-946GM-S2 (Rev. 2.0)

Intel 946GZ + ICH7 chipset
개요상세 정보지원뉴스/수상 내역Where to Buy

상세 정보

  • CPU
    1. Supports Intel® Core™2 Extreme Quad-Core / Core™2 Duo / Intel® Pentium® Extreme/ Intel® Pentium® D processor
    2. Supports 1066/800/533MHz FSB
  • 칩셋
    1. Northbridge: Intel® 946GZ Express Chipset
    2. Southbridge: Intel® ICH7
    3. Realtek RTL8111 Gigabit Ethernet controller
    4. Realtek ALC888 audio codec
  • 메모리
    1. 4 DDR II DIMM memory slots (supports up to 4GB memory)
    2. Supports 1.8V DDR II DIMM
    3. Supports dual channel DDR II 667/533 DIMM
    * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
  • 확장 슬롯
    1. 1 PCI Express x 16 slot
    2. 1 PCI Express x 1 slot
    3. 2 PCI slots
  • 내부 I / O 커넥터
    1. 1 x 24-pin ATX power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x floppy connector
    4. 1 x IDE connector
    5. 4 x SATA 3Gb/s connectors
    6. 1 x CPU fan connector
    7. 1 x system fan connector
    8. 1 x front panel connector
    9. 1 x front audio connector
    10. 1 x CD In connector
    11. 1 x HDA_SUR connector
    12. 1 x COMB connector
    13. 2 x USB 2.0/1.1 connectors for additional 4 ports by cables
    14. 1 x SPDIF In/Out connector
    15. 1 x power LED connector
  • 후면 패널 커넥터
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x parallel port
    4. 1 x VGA port
    5. 1 x serial port (COMA)
    6. 4 x USB 2.0/1.1 ports
    7. 1 x RJ-45 port
    8. 3 audio jacks (Line In / Line Out / MIC In)
  • H / W 모니터링
    1. System voltage detection
    2. CPU temperature detection
    3. CPU / System fan speed detection
    4. CPU warning temperature
    5. CPU / System fan failure warning
    6. CPU smart fan control
  • BIOS
    1. 1 4 Mbit flash ROM
    2. Use of licensed AWARD BIOS
  • Form Factor
    1. Micro ATX
    2. 24.4.cm x 23.4 cm
  • 기타 특징
    1. Supports @BIOS
    2. Supports Download Center
    3. Supports Q-Flash
    4. Supports EasyTune 5
    5. Supports Xpress Install
    6. Supports Xpress Recovery2
    7. Supports Virtual Dual BIOS (Xpress BIOS Rescue)
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • CPU
      1. Supports Intel® Core™2 Extreme Quad-Core / Core™2 Duo / Intel® Pentium® Extreme/ Intel® Pentium® D processor
      2. Supports 1066/800/533MHz FSB
    • 칩셋
      1. Northbridge: Intel® 946GZ Express Chipset
      2. Southbridge: Intel® ICH7
      3. Realtek RTL8111 Gigabit Ethernet controller
      4. Realtek ALC888 audio codec
    • 메모리
      1. 4 DDR II DIMM memory slots (supports up to 4GB memory)
      2. Supports 1.8V DDR II DIMM
      3. Supports dual channel DDR II 667/533 DIMM
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
    • 확장 슬롯
      1. 1 PCI Express x 16 slot
      2. 1 PCI Express x 1 slot
      3. 2 PCI slots
    • 내부 I / O 커넥터
      1. 1 x 24-pin ATX power connector
      2. 1 x 4-pin ATX 12V power connector
      3. 1 x floppy connector
      4. 1 x IDE connector
      5. 4 x SATA 3Gb/s connectors
      6. 1 x CPU fan connector
      7. 1 x system fan connector
      8. 1 x front panel connector
      9. 1 x front audio connector
      10. 1 x CD In connector
      11. 1 x HDA_SUR connector
      12. 1 x COMB connector
      13. 2 x USB 2.0/1.1 connectors for additional 4 ports by cables
      14. 1 x SPDIF In/Out connector
      15. 1 x power LED connector
    • 후면 패널 커넥터
      1. 1 x PS/2 keyboard port
      2. 1 x PS/2 mouse port
      3. 1 x parallel port
      4. 1 x VGA port
      5. 1 x serial port (COMA)
      6. 4 x USB 2.0/1.1 ports
      7. 1 x RJ-45 port
      8. 3 audio jacks (Line In / Line Out / MIC In)
    • H / W 모니터링
      1. System voltage detection
      2. CPU temperature detection
      3. CPU / System fan speed detection
      4. CPU warning temperature
      5. CPU / System fan failure warning
      6. CPU smart fan control
    • BIOS
      1. 1 4 Mbit flash ROM
      2. Use of licensed AWARD BIOS
    • Form Factor
      1. Micro ATX
      2. 24.4.cm x 23.4 cm
    • 기타 특징
      1. Supports @BIOS
      2. Supports Download Center
      3. Supports Q-Flash
      4. Supports EasyTune 5
      5. Supports Xpress Install
      6. Supports Xpress Recovery2
      7. Supports Virtual Dual BIOS (Xpress BIOS Rescue)
    • Remark
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * HDMI, HDMI High-Definition Multimedia Interface(고화질멀티미디어인터페이스), HDMI 트레이드드레스및 HDMI 로고라는용어는 HDMI Licensing Administrator, Inc.의상표또는등록상표입니다.
      * 사이트에서 제공되는 모든 자료는 참조용일 뿐입니다. 기가바이트는 사이트의 자료를 사전 통지없이 언제든지 수정할 권리를 지닙니다.
      * 모든 상표와 로고는 해당 소유자의 자산입니다.
      * PC의 표준 아키텍쳐에 의해, 메모리의 특정 부분이 시스템에 사용되어 실제 메모리 크기는 표준보다 적게 표시될 수 있습니다.
