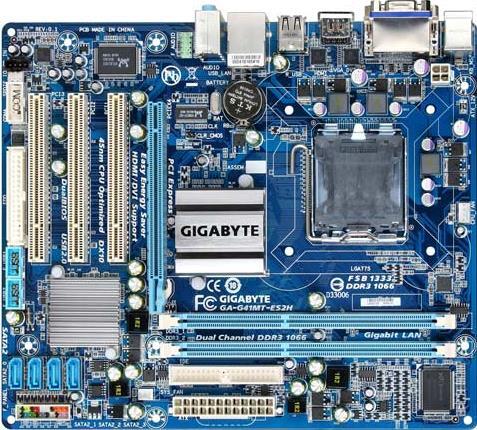

GA-G41MT-ES2H (Rev. 1.0)

Intel®G41 + ICH7 Chipset
개요상세 정보지원뉴스/수상 내역Where to Buy

상세 정보

  • CPU
    1. Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium®processor /Intel® Celeron®processor in the LGA 775 package
    2. L2 cache varies with CPU
  • Front Side Bus
    1. 1333/1066/800 MHz FSB
  • 칩셋
    1. North Bridge: Intel® G41 Chipset
    2. South Bridge: Intel® ICH7
  • 메모리
    1. 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory (Note 1)
    2. Dual channel memory architecture
    3. Support for DDR3 1066/800 MHz memory modules
  • 온보드 그래픽
  • Integrated in the North Bridge:
    1. 1 x D-Sub port
    2. 1 x DVI-D port (Note 2)
    3. 1 x HDMI port
  • 오디오
    1. Realtek ALC888B codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel (Note 3)
    4. Support for S/PDIF In/Out
    5. Support for CD In
  • 랜
    1. 1x RTL8110SC chip (10/100/1000 Mbit)
  • 확장 슬롯
    1. 1 x PCI Express x16 slot, running at x 4
    2. 3 x PCI slots
  • 스토리지 인터페이스
  • South Bridge:
    1. 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
    2. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
    Winbond W83627DHG-G chip::
    1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
  • USB
    1. Integrated in the South Bridge
    2. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
  • 내부 I / O 커넥터
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 4 x SATA 3Gb/s connectors
    6. 1 x CPU fan header
    7. 1 x system fan header
    8. 1 x front panel header
    9. 1 x front panel audio header
    10. 1 x CD In connector
    11. 1 x S/PDIF In /Out header
    12. 2 x USB 2.0/1.1 headers
    13. 1 x serial port header
    14. 1 x clearing CMOS jumper
  • 후면 패널 커넥터
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x D-Sub port
    4. 1 x DVI-D portt (Note 2)
    5. 1 x HDMI port
    6. 4 x USB 2.0/1.1 ports
    7. 1 x RJ-45 port
    8. 3 x audio jacks (Line In/Line out/Microphone)
  • I / O 컨트롤러
    1. Winbond W83627DHG-G
  • H / W 모니터링
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU overheating warning
    5. CPU/System fan fail warning
    6. CPU fan speed control (Note 4)
  • BIOS
    1. 2 x 8 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • 특징
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress BIOS Rescue
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune (Note 5)
    8. Support for Easy Energy Saver (Note 6)
    9. Support for Time Repair
    10. Support for Q-Share
  • 번들 소프트웨어
    1. Norton Internet Security (OEM version)
  • 운영 체제
    1. Support for Microsoft® Windows Vista/XP
  • Form Factor
    1. Micro ATX Form Factor; 24.4cm x 20.8cm
  • 주의
  • (Note 1) Due to Windows Vista/XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
    (Note 2) The DVI-D port does not support D-Sub connection by adapter.
    (Note 3) To configure 7.1-channel audio, you need connect with the port of HD Audio standard via front panel and enable the multi-channel audio feature through the audio driver.
    (Note 4) Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
    (Note 5) Available functions in EasyTune may differ by motherboard model.
    (Note 6) Due to the hardware limitation, you must install the Intel®Core™ 2 Extreme/ Core™ 2 Quad/ Core™ 2 Duo/ Pentium Dual-Core/ Celeron
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
