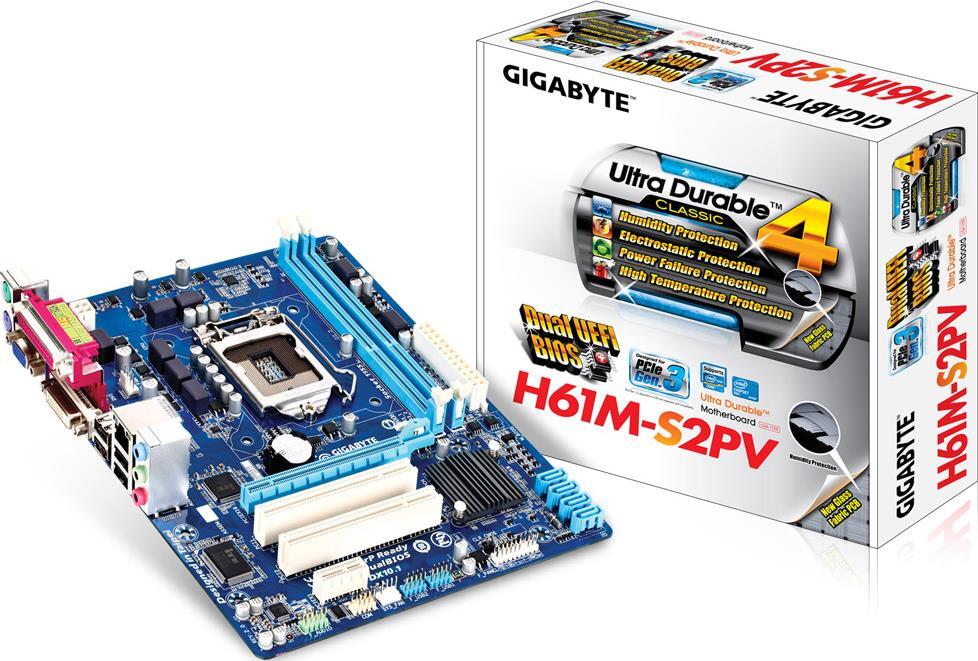

GA-H61M-S2PV (Rev. 2.1)

Rev. 2.1Rev. 1.0Rev. 2.0Rev. 2.2Rev. 2.3
Intel® H61 Chipset
개요상세 정보지원뉴스/수상 내역자세히 보기Where to Buy

상세 정보

  • CPU
    1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
    2. L3 cache varies with CPU
    (Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
  • 칩셋
    1. Intel® H61 Express Chipset
  • 메모리
    1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
      * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
    2. Dual channel memory architecture
    3. Support for DDR3 1333/1066/800 MHz memory modules
    4. Support for non-ECC memory modules
    5. Support for Extreme Memory Profile (XMP) memory modules
      * To support XMP memory, you must install an Intel 22nm (Ivy Bridge) CPU.
    (Please refer "Memory Support List" for more information.)
  • 온보드 그래픽
  • Integrated Graphics Processor:
    1. 1 x D-Sub port
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
      * The DVI-D port does not support D-Sub connection by adapter.
  • 오디오
    1. Realtek ALC887 audio codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  • 랜
    1. 1 x Realtek 8111F chip (10/100/1000 Mbit)
  • 확장 슬롯
    1. 1 x PCI Express x16 slot, running at x16
      (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
      * PCIE Gen.3 is dependent on CPU and expansion card compatibility.
    2. 1 x PCI Express x1 slot
      (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
    3. 2 x PCI slots
  • 스토리지 인터페이스
  • Chipset:
    1. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
  • USB
  • Chipset:
    1. Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • 내부 I / O 커넥터
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 4 x SATA 3Gb/s connectors
    4. 1 x CPU fan header
    5. 1 x system fan header
    6. 1 x front panel header
    7. 1 x front panel audio header
    8. 2 x USB 2.0/1.1 headers
    9. 1 x serial port header
    10. 1 x Clear CMOS jumper
  • 후면 패널 커넥터
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x parallel port
    4. 1 x D-Sub port
    5. 1 x DVI-D port
    6. 4 x USB 2.0/1.1 ports
    7. 1 x RJ-45 port
    8. 3 x audio jacks (Line In/Line Out/Microphone)
  • I / O 컨트롤러
    1. iTE IT8728 chip
  • H / W 모니터링
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU overheating warning
    5. CPU/System fan fail warning
    6. CPU/System fan speed control
      * Whether the CPU/System fan speed control function is supported will depend on the CPU/System cooler you install.
  • BIOS
    1. 2 x 32 Mbit flash
    2. Use of licensed AMI EFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
  • 특징
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress Recovery2
    4. Support for EasyTune
      * Available functions in EasyTune may differ by motherboard model.
    5. Support for ON/OFF Charge
  • 번들 소프트웨어
    1. Norton Internet Security (OEM version)
  • 운영 체제
    1. Support for Microsoft® Windows® 8/7/Vista/XP
  • Form Factor
    1. Micro ATX Form Factor; 24.4cm x 20cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • CPU
      1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
      2. L3 cache varies with CPU
      (Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
    • 칩셋
      1. Intel® H61 Express Chipset
    • 메모리
      1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
        * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
      2. Dual channel memory architecture
      3. Support for DDR3 1333/1066/800 MHz memory modules
      4. Support for non-ECC memory modules
      5. Support for Extreme Memory Profile (XMP) memory modules
        * To support XMP memory, you must install an Intel 22nm (Ivy Bridge) CPU.
      (Please refer "Memory Support List" for more information.)
    • 온보드 그래픽
    • Integrated Graphics Processor:
      1. 1 x D-Sub port
      2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
        * The DVI-D port does not support D-Sub connection by adapter.
    • 오디오
      1. Realtek ALC887 audio codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
        * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    • 랜
      1. 1 x Realtek 8111F chip (10/100/1000 Mbit)
    • 확장 슬롯
      1. 1 x PCI Express x16 slot, running at x16
        (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
        * PCIE Gen.3 is dependent on CPU and expansion card compatibility.
      2. 1 x PCI Express x1 slot
        (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
      3. 2 x PCI slots
    • 스토리지 인터페이스
    • Chipset:
      1. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
    • USB
    • Chipset:
      1. Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    • 내부 I / O 커넥터
      1. 1 x 24-pin ATX main power connector
      2. 1 x 4-pin ATX 12V power connector
      3. 4 x SATA 3Gb/s connectors
      4. 1 x CPU fan header
      5. 1 x system fan header
      6. 1 x front panel header
      7. 1 x front panel audio header
      8. 2 x USB 2.0/1.1 headers
      9. 1 x serial port header
      10. 1 x Clear CMOS jumper
    • 후면 패널 커넥터
      1. 1 x PS/2 keyboard port
      2. 1 x PS/2 mouse port
      3. 1 x parallel port
      4. 1 x D-Sub port
      5. 1 x DVI-D port
      6. 4 x USB 2.0/1.1 ports
      7. 1 x RJ-45 port
      8. 3 x audio jacks (Line In/Line Out/Microphone)
    • I / O 컨트롤러
      1. iTE IT8728 chip
    • H / W 모니터링
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan speed detection
      4. CPU overheating warning
      5. CPU/System fan fail warning
      6. CPU/System fan speed control
        * Whether the CPU/System fan speed control function is supported will depend on the CPU/System cooler you install.
    • BIOS
      1. 2 x 32 Mbit flash
      2. Use of licensed AMI EFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
    • 특징
      1. Support for @BIOS
      2. Support for Q-Flash
      3. Support for Xpress Recovery2
      4. Support for EasyTune
        * Available functions in EasyTune may differ by motherboard model.
      5. Support for ON/OFF Charge
    • 번들 소프트웨어
      1. Norton Internet Security (OEM version)
    • 운영 체제
      1. Support for Microsoft® Windows® 8/7/Vista/XP
    • Form Factor
      1. Micro ATX Form Factor; 24.4cm x 20cm
    • Remark
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * HDMI, HDMI High-Definition Multimedia Interface(고화질멀티미디어인터페이스), HDMI 트레이드드레스및 HDMI 로고라는용어는 HDMI Licensing Administrator, Inc.의상표또는등록상표입니다.
      * 사이트에서 제공되는 모든 자료는 참조용일 뿐입니다. 기가바이트는 사이트의 자료를 사전 통지없이 언제든지 수정할 권리를 지닙니다.
      * 모든 상표와 로고는 해당 소유자의 자산입니다.
      * PC의 표준 아키텍쳐에 의해, 메모리의 특정 부분이 시스템에 사용되어 실제 메모리 크기는 표준보다 적게 표시될 수 있습니다.
