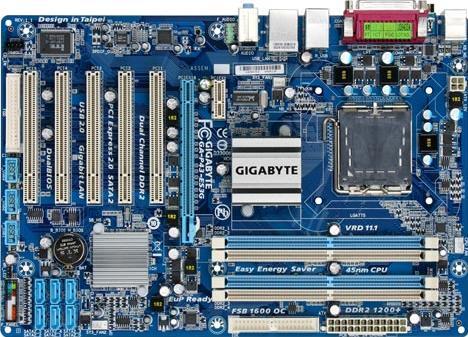

GA-P43-ES3G (Rev. 1.3)

Rev. 1.3Rev. 1.0Rev. 1.1Rev. 1.4
Intel® P43 + ICH10 Chipset
개요상세 정보지원뉴스/수상 내역Where to Buy

상세 정보

  • CPU
    1. Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/Intel® Pentium® processor Extreme Edition/Intel® Pentium® D processor/Intel® Pentium® 4 processor Extreme Edition/Intel® Pentium® 4 processor/Intel® Celeron® processor in the LGA 775 package
      (Go to GIGABYTE's website for the latest CPU support list.)
    2. L2 cache varies with CPU
  • Front Side Bus
    1. 1600(O.C.)/1333/1066/800 MHz FSB
  • 칩셋
    1. North Bridge: Intel® P43 Express Chipset
    2. South Bridge: Intel® ICH10
  • 메모리
    1. 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory
    2. Dual channel memory architecture
    3. Support for DDR2 1200/1066/800/667 MHz memory modules
    (Go to GIGABYTE's website for the latest memory support list.)
  • 오디오
    1. Realtek ALC888 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
    5. Support for CD In
  • 랜
    1. Realtek 8111C chip (10/100/1000 Mbit)
  • 확장 슬롯
    1. 1 x PCI Express x16 slot, running at x16
      (The PCI Express x16 slot conforms to PCI Express 2.0 standard.)
    2. 1 x PCI Express x1 slot
    3. 5 x PCI slots
  • 스토리지 인터페이스
  • South Bridge:
    1. 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
    JMicron 368 chip:
    1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    iTE IT8718 chip:
    1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
  • USB
    1. Integrated in the South Bridge
    2. Up to 12 USB 2.0/1.1 ports (6 on the back panel, 6 via the USB brackets connected to the internal USB headers)
  • 내부 I / O 커넥터
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 6 x SATA 3Gb/s connectors
    6. 1 x CPU fan header
    7. 2 x system fan headers
    8. 1 x front panel header
    9. 1 x front panel audio header
    10. 1 x CD In connector
    11. 1 x S/PDIF Out header
    12. 3 x USB 2.0/1.1 headers
    13. 1 x power LED header
    14. 1 x chassis intrusion header
  • 후면 패널 커넥터
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x parallel port
    4. 1 x serial port
    5. 1 x coaxial S/PDIF Out connector
    6. 6 x USB 2.0/1.1 ports
    7. 1 x RJ-45 ports
    8. 3 x audio jacks (Line In/Line Out/Microphone)
  • I / O 컨트롤러
    1. iTE IT8718 chip
  • H / W 모니터링
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU overheating warning
    5. CPU/System fan fail warning
    6. CPU/System samrt fan control
  • BIOS
    1. 2 x 8 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • 특징
    1. Support for @BIOS
    2. Support for Download Center
    3. Support for Q-Flash
    4. Support for EasyTune
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for Virtual Dual BIOS
    8. Support for Easy Energy Saver
  • 번들 소프트웨어
    1. Norton Internet Security (OEM version)
  • 운영 체제
    1. Support for Microsoft® Windows Vista/XP
  • Form Factor
    1. ATX Form Factor; 30.5cm x 21cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • CPU
      1. Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/Intel® Pentium® processor Extreme Edition/Intel® Pentium® D processor/Intel® Pentium® 4 processor Extreme Edition/Intel® Pentium® 4 processor/Intel® Celeron® processor in the LGA 775 package
        (Go to GIGABYTE's website for the latest CPU support list.)
      2. L2 cache varies with CPU
    • Front Side Bus
      1. 1600(O.C.)/1333/1066/800 MHz FSB
    • 칩셋
      1. North Bridge: Intel® P43 Express Chipset
      2. South Bridge: Intel® ICH10
    • 메모리
      1. 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory
      2. Dual channel memory architecture
      3. Support for DDR2 1200/1066/800/667 MHz memory modules
      (Go to GIGABYTE's website for the latest memory support list.)
    • 오디오
      1. Realtek ALC888 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
      4. Support for S/PDIF Out
      5. Support for CD In
    • 랜
      1. Realtek 8111C chip (10/100/1000 Mbit)
    • 확장 슬롯
      1. 1 x PCI Express x16 slot, running at x16
        (The PCI Express x16 slot conforms to PCI Express 2.0 standard.)
      2. 1 x PCI Express x1 slot
      3. 5 x PCI slots
    • 스토리지 인터페이스
    • South Bridge:
      1. 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
      JMicron 368 chip:
      1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
      iTE IT8718 chip:
      1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
    • USB
      1. Integrated in the South Bridge
      2. Up to 12 USB 2.0/1.1 ports (6 on the back panel, 6 via the USB brackets connected to the internal USB headers)
    • 내부 I / O 커넥터
      1. 1 x 24-pin ATX main power connector
      2. 1 x 4-pin ATX 12V power connector
      3. 1 x floppy disk drive connector
      4. 1 x IDE connector
      5. 6 x SATA 3Gb/s connectors
      6. 1 x CPU fan header
      7. 2 x system fan headers
      8. 1 x front panel header
      9. 1 x front panel audio header
      10. 1 x CD In connector
      11. 1 x S/PDIF Out header
      12. 3 x USB 2.0/1.1 headers
      13. 1 x power LED header
      14. 1 x chassis intrusion header
    • 후면 패널 커넥터
      1. 1 x PS/2 keyboard port
      2. 1 x PS/2 mouse port
      3. 1 x parallel port
      4. 1 x serial port
      5. 1 x coaxial S/PDIF Out connector
      6. 6 x USB 2.0/1.1 ports
      7. 1 x RJ-45 ports
      8. 3 x audio jacks (Line In/Line Out/Microphone)
    • I / O 컨트롤러
      1. iTE IT8718 chip
    • H / W 모니터링
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan speed detection
      4. CPU overheating warning
      5. CPU/System fan fail warning
      6. CPU/System samrt fan control
    • BIOS
      1. 2 x 8 Mbit flash
      2. Use of licensed AWARD BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    • 특징
      1. Support for @BIOS
      2. Support for Download Center
      3. Support for Q-Flash
      4. Support for EasyTune
      5. Support for Xpress Install
      6. Support for Xpress Recovery2
      7. Support for Virtual Dual BIOS
      8. Support for Easy Energy Saver
    • 번들 소프트웨어
      1. Norton Internet Security (OEM version)
    • 운영 체제
      1. Support for Microsoft® Windows Vista/XP
    • Form Factor
      1. ATX Form Factor; 30.5cm x 21cm
    • Remark
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * HDMI, HDMI High-Definition Multimedia Interface(고화질멀티미디어인터페이스), HDMI 트레이드드레스및 HDMI 로고라는용어는 HDMI Licensing Administrator, Inc.의상표또는등록상표입니다.
      * 사이트에서 제공되는 모든 자료는 참조용일 뿐입니다. 기가바이트는 사이트의 자료를 사전 통지없이 언제든지 수정할 권리를 지닙니다.
      * 모든 상표와 로고는 해당 소유자의 자산입니다.
      * PC의 표준 아키텍쳐에 의해, 메모리의 특정 부분이 시스템에 사용되어 실제 메모리 크기는 표준보다 적게 표시될 수 있습니다.
