B660M GAMING AC (rev. 1.0)
Intel® B660 GAMING Motherboard with 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink, DDR5 XTREME MEMORY Design, 2 x PCIe 4.0 M.2, 2.5GbE LAN, 802.11ac Wireless​, Rear USB 3.2 Gen 1 Type-C®, RGB FUSION 2.0, Q-Flash Plus​​​

  • Supports 12th Gen Intel® Core™ Series Processors​​
  • Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
  • 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink​
  • Fast 2.5 GbE GAMING LAN with Bandwidth Management​​
  • WIFI 802.11ac & BT with AERO Antenna​​
  • Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2​
  • Rear SuperSpeed USB 3.2 Gen 1 TYPE-C® for Fast and Versatile Connections​​
  • High Quality Audio Capacitors and Audio Noise Guard​
  • RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​​
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​​
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​​
B660M AORUS ELITE DDR4 (rev. 1.0)
Intel® B660 AORUS Motherboard with 12*+1+1 Twin Hybrid Phases Digital VRM Design, Fully Covered Thermal Design, 2 x PCIe 4.0 M.2 with Thermal Guard, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus

  • Supports 12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • 12*+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS
  • Shielded Memory Routing for Better Memory Overclocking
  • Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
  • Blazing Fast 2.5GbE LAN with Bandwidth Management
  • Dual Ultra-Fast NVMe PCIe 4.0* x4 M.2 with Thermal Guard
  • Rear and Front USB3.2 Type-C® for Fast and Versatile Connections
  • Pre-installed IO Shield for easy and quick installation
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

* Actual support may vary by CPU.
* 6+6 phases parallel power design
B660M AORUS ELITE AX DDR4 (rev. 1.0)
Intel® B660 AORUS Motherboard with 12*+1+1 Twin Hybrid Phases Digital VRM Design, Fully Covered Thermal Design, 2 x PCIe 4.0 M.2 with Thermal Guard, 2.5GbE LAN, WIFI 6E 802.11ax, RGB FUSION 2.0, Q-Flash Plus

  • Supports 12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • 12*+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS
  • Shielded Memory Routing for Better Memory Overclocking
  • Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
  • WIFI 6E 802.11ax 2T2R & BT5 with AORUS Antenna
  • Blazing Fast 2.5GbE LAN with Bandwidth Management
  • Dual Ultra-Fast NVMe PCIe 4.0* x4 M.2 with Thermal Guard
  • Rear and Front USB3.2 Type-C® for Fast and Versatile Connections
  • Pre-installed IO Shield for easy and quick installation
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

* Actual support may vary by CPU.
* 6+6 phases parallel power design
B660M GAMING X AX (rev. 1.0)
Intel® B660 GAMING Motherboard with 8+1+1 Phases Hybrid Digital VRM Design*, DDR5 XTREME MEMORY Design , Fully Covered Thermal Design , 2 x PCIe 4.0 M.2 with Thermal Guard, 2.5GbE Gaming LAN, WIFI 6 802.11ax ​, Front USB 3.2 Gen 2 Type-C®, RGB FUSION 2.0, Q-Flash Plus​​

  • Supports 12th Gen Intel® Core™ Series Processors​​
  • Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs​​
  • 8+1+1 Hybrid Digital VRM Design with DrMOS*​​
  • DDR5 XTREME MEMORY Design with Shielded Memory Routing​
  • Fully Covered Thermal Design with High Coverage VRM Heatsinks​
  • WIFI 6 802.11ax 2T2R & BT5 with AERO Antenna​
  • Fast 2.5 GbE GAMING LAN with Bandwidth Management​​
  • 2 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard
  • USB 3.2 Gen1 Type-C® for Fast and Versatile Connections​​
  • Pre-installed IO Shield for easy and quick installation​
  • High Quality Audio Capacitors and Audio Noise Guard​
  • RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​​
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP​​
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​​

*DrMOS adopted only on Vcore/Vgt phase counts. ​
B660M GAMING X (rev. 1.0)
Intel® B660 GAMING Motherboard with 8+1+1 Phases Hybrid Digital VRM Design*, DDR5 XTREME MEMORY Design, Fully Covered Thermal Design, 2 x PCIe 4.0 M.2 with Thermal Guard, 2.5GbE LAN, USB 3.2 Gen 1 Type-C®, RGB FUSION 2.0, Q-Flash Plus​​

  • Supports 12th Gen Intel® Core™ Series Processors​​
  • Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs​​
  • 8+1+1 Hybrid Digital VRM Design with DrMOS*
  • DDR5 XTREME MEMORY Design with Shielded Memory Routing​
  • Fully Covered Thermal Design with High Coverage VRM Heatsinks​
  • Fast 2.5 GbE GAMING LAN with Bandwidth Management​​
  • Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard
  • USB 3.2 Gen1 Type-C® for Fast and Versatile Connections​
  • Pre-installed IO Shield for easy and quick installation​
  • High Quality Audio Capacitors and Audio Noise Guard​
  • RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​​
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​​
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​​

*DrMOS adopted only on Vcore/Vgt phase counts.
B660M POWER DDR4 (rev. 1.0)
Intel® B660 Motherboard with 6+2+1 Phases Hybrid Digital, 2 x PCIe 4.0 M.2, GbE LAN, RGB FUSION 2.0, Q-Flash Plus​​​​

  • Supports 12th Gen Intel® Core™ Series Processors​​
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 6+2+1 Phases Hybrid Digital VRM​
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software​
  • Ultra-Fast NVMe PCIe 4.0 x4 M.2​
  • High Quality Audio Capacitors and Audio Noise Guard​
  • RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​​
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP​​
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​​

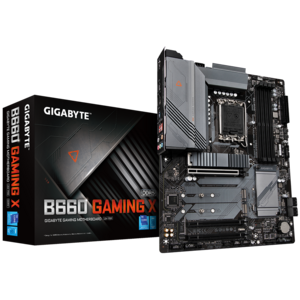

B660 GAMING X (rev. 1.0)
Intel® B660 GAMING Motherboard with 8+1+1 Phases Hybrid Digital VRM Design*, DDR5 XTREME MEMORY Design, Fully Covered Thermal Design, 3 x PCIe 4.0/3.0 M.2 with Thermal Guard, 2.5GbE Gaming LAN, Front USB 3.2 Gen 2 Type-C®, RGB FUSION 2.0, Q-Flash Plus​​

  • Supports 12th Gen Intel® Core™ Series Processors​​
  • Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs​​
  • 8+1+1 Hybrid Digital VRM Design with DrMOS*​​
  • DDR5 XTREME MEMORY Design with Shielded Memory Routing​
  • Fully Covered Thermal Design with High Coverage VRM Heatsinks​
  • Fast 2.5 GbE GAMING LAN with Bandwidth Management​​
  • Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard​​
  • SuperSpeed USB 3.2 Gen 2 Type-C® delivers up to 10Gb/s transfer speeds​
  • Pre-installed IO Shield for easy and quick installation​
  • High Quality Audio Capacitors and Audio Noise Guard​
  • RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​​
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​​
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​​

*DrMOS adopted only on Vcore/Vgt phase counts. ​
B660 DS3H AC (rev. 1.0)
Intel® B660 Motherboard with 8+2+1 Phases Hybrid Digital VRM with MOS Heatsink, DDR5 XTREME MEMORY Design, 2 x PCIe 4.0 M.2, Gaming LAN, 802.11ac Wireless​, Rear USB 3.2 Gen 2x2 Type-C®, RGB FUSION 2.0, Q-Flash Plus​​​

  • Supports 12th Gen Intel® Core™ Series Processors​​
  • Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
  • 8+2+1 Phases Hybrid Digital VRM with MOS Heatsink​
  • DDR5 XTREME MEMORY Design with Shielded Memory Routing​
  • WIFI 802.11ac & BT with High-Gain Antenna​​
  • GIGABYTE Gaming LAN with Bandwidth Management​
  • Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2​​
  • Rear SuperSpeed USB 3.2 Gen 2x2 TYPE-C® delivers up to 20Gb/s transfer speeds​​
  • High Quality Audio Capacitors and Audio Noise Guard​
  • RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​​
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​​
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​​
B660 DS3H AC DDR4 (rev. 1.0)
Intel® B660 Motherboard with 8+2+1 Phases Hybrid Digital VRM with MOS Heatsink, 2 x PCIe 4.0 M.2, Gaming LAN, 802.11ac Wireless​, Rear USB 3.2 Gen 2x2 Type-C®, RGB FUSION 2.0, Q-Flash Plus​​​

  • Supports 12th Gen Intel® Core™ Series Processors​​
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • 8+2+1 Phases Hybrid Digital VRM with MOS Heatsink​
  • WIFI 802.11ac & BT with High-Gain Antenna​​
  • GIGABYTE Gaming LAN with Bandwidth Management​
  • Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2​​
  • Rear SuperSpeed USB 3.2 Gen 2x2 TYPE-C® delivers up to 20Gb/s transfer speeds​​
  • High Quality Audio Capacitors and Audio Noise Guard​
  • RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​​
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​​
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​​
B660I AORUS PRO DDR4 (rev. 1.x)
Intel® B660 Mini-ITX AORUS Motherboard with Direct 8+1+1 Phases Digital VRM Design, Advanced Thermal Solution , PCIe 4.0 M.2 with Enlarged Thermal Guard, Intel® 2.5GbE LAN, WIFI 6 802.11ax , 8-ch HD Audio with Audio Caps, HDMI 2.0, RGB FUSION 2.0, Q-Flash Plus

  • Supports 12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • Direct 8+1+1 Phases Digital VRM Solution with 90A SPS
  • Shielded Memory Routing for Better Memory Overclocking
  • Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink, Aluminum Baseplate
  • WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • Blazing Fast Intel® 2.5GbE LAN with Bandwidth Management
  • Ultra-Fast NVMe PCIe 4.0*x4 M.2 with Thermal Guard
  • Rear USB 3.2 Gen 2 Type-C® and Front USB 3.2 Gen 1 Type-C® for Connecting devices
  • Pre-installed IO Shield for easy and quick installation
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

* Actual support may vary by CPU.
B660M GAMING X AX DDR4 (rev. 1.x)
Intel® B660 게이밍 메인보드: 8+1+1 페이즈 하이브리드 디지털 VRM 설계, 완전 커버형 쿨링 디자인, 써멀 가드를 탑재한 PCIe 4.0 M.2 슬롯 2개, 2.5 GbE 게이밍 LAN, WIFI 6802.11ax 와이파이, 전면 USB 3.2 Gen2 Type-C® , RGB FUSION 2.0, Q-Flash Plus

  • 12세대 Intel® Core™ 프로세서
  • 듀얼 채널 Non-ECC 버퍼링되지 않는 DDR 4, 4 DIMMs 내장
  • DrMOS가 지원되는 8+1+1 페이즈 하이브리드 디지털 VRM*
  • 차폐율이 높은 VRM 히트싱크를 사용한 완전 커버형 쿨링 설계
  • WIFI 6 802.11ax 2T2R 와이파이 및 BT 5, AORUS 안테나 탑재
  • 대역폭 관리 소프트웨어를 지원하는 고속 2.5GbE LAN
  • 써멀 가드를 탑재한 2개의 PCIe 4.0 x4 M.2
  • USB 3.2 Gen 1 TYPE-C®, 외장형 장치 사용이 간편
  • 기본 설치된 I/O 쉴드가 PC 조립을 쉽게 해준다
  • 고품질 오디오 커패시터 및 오디오 노이즈 가드
  • RGB 2.0를 탑재하여 주소 지정 가능 LED 및 RGB LED 스트립 지원
  • 다수의 온도 센서를 내장하고 하이브리드 팬 헤더를 사용하며 FAN STOP 설계를 지원하는 혁신적인 Smart Fan 6
  • Q-Flash Plus: CPU와 메모리 및 그래픽카드를 설치하지 않아도 BIOS를 업데이트 가능

*DrMOS는 Vcore/Vgt 페이즈 카운트에만 적용됩니다.
B660M GAMING X DDR4 (rev. 1.0)
Intel® B660 GAMING Motherboard with 8+1+1 Phases Hybrid Digital VRM Design*, Fully Covered Thermal Design, 2 x PCIe 4.0 M.2 with Thermal Guard, 2.5GbE LAN, USB 3.2 Gen 1 Type-C®, RGB FUSION 2.0, Q-Flash Plus​​

  • Supports 12th Gen Intel® Core™ Series Processors​​
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs​​
  • 8+1+1 Hybrid Digital VRM Design with DrMOS*​
  • Fully Covered Thermal Design with High Coverage VRM Heatsinks​
  • Fast 2.5 GbE GAMING LAN with Bandwidth Management​​
  • Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard
  • USB 3.2 Gen1 Type-C® for Fast and Versatile Connections​
  • Pre-installed IO Shield for easy and quick installation​
  • High Quality Audio Capacitors and Audio Noise Guard​
  • RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​​
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​​

*DrMOS adopted only on Vcore/Vgt phase counts. ​
