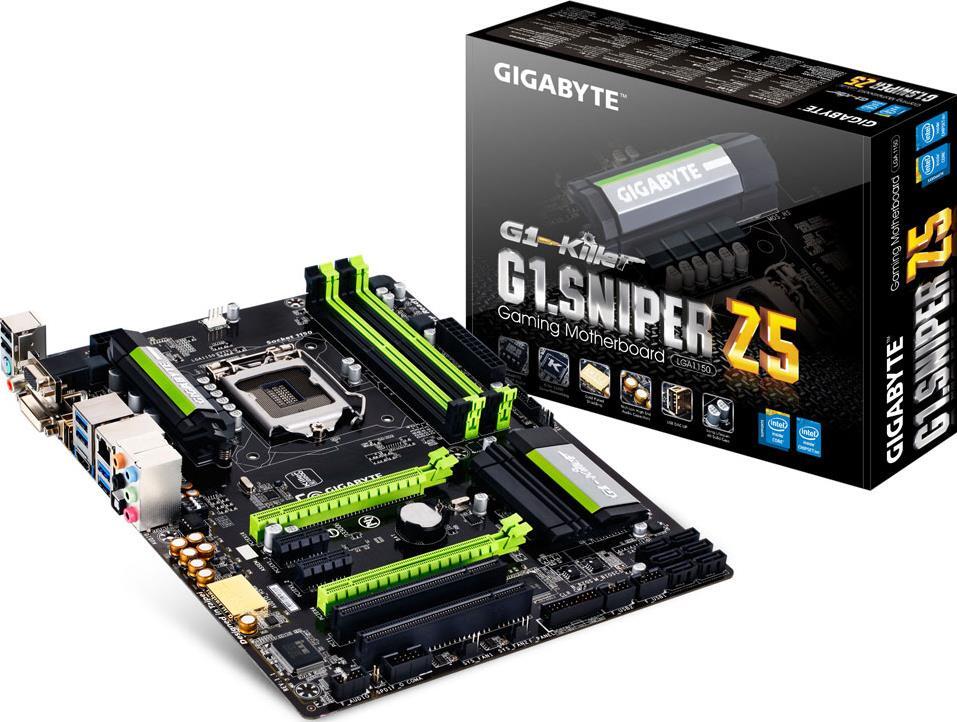

G1.Sniper Z5 (Rev. 1.1)

Intel® Z87 Chipset
ОписаниеСпецификацииПоддержкаНовости & НаградыLearn MoreWhere to Buy

Спецификации

  • Процессор
    1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Чипсет
    1. Intel® Z87 Express Chipset
  • Подсистема памяти
    1. 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Dual channel memory architecture
    3. Support for DDR3 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules
    4. Support for non-ECC memory modules
    5. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Графический интерфейс
  • Integrated Graphics Processor - Intel® HD Graphics support:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
      * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 4096x2160
      * Support for HDMI 1.4a version.
    4. Maximum shared memory of 1 GB
  • Аудиоподсистема
    1. Realtek® ALC1150 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • Сетевой
    LAN-интерфейс
    1. Qualcomm® Atheros Killer E2201 chip (10/100/1000 Mbit)
  • Разъёмы для плат расширения
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      2. ŠŠ
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      * The PCIEX4 slot shares bandwidth with all PCI Express x1 slots. All PCI Express x1 slots will become unavailable when a PCIe x4 expansion card is installed.
      * When installing a x4 or above card in the PCIEX4 slot, make sure to set PCIE Slot Configuration in BIOS Setup to x4.
      3. ŠŠ
    3. 2 x PCI Express x1 slots
      (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)

    4. 2 x PCI slots
  • Масштабируемость видеоподсистемы
    1. Support for 2-Way AMD CrossFire™ technology
  • Интерфейсы накопителей
  • Chipset:
    1. 6 x SATA 6Gb/s connectors (SATA3 0~5)
    2. Support for RAID 0, RAID 1, RAID 5, and RAID 10
  • Интерфейс USB
  • Chipset:
    1. 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    2. 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
  • Разъемы на системной плате
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 6 x SATA 6Gb/s connectors
    4. 1 x CPU fan header
    5. 3 x system fan headers
    6. 1 x front panel header
    7. 1 x front panel audio header
    8. 1 x S/PDIF Out header
    9. 1 x USB 3.0/2.0 header
    10. 2 x USB 2.0/1.1 headers
    11. 1 x serial port header
    12. 1 x Clear CMOS jumper
    13. 1 x audio gain control switch
  • Разъемы на задней панели
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x coaxial S/PDIF Out connector
    3. 1 x optical S/PDIF Out connector
    4. 1 x D-Sub port
    5. 1 x DVI-D port
    6. 1 x HDMI port
    7. 4 x USB 3.0/2.0 ports
    8. 3 x USB 2.0/1.1 ports
    9. 1 x RJ-45 port
    10. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
  • Микросхема
    I/O-контроллера
    1. iTE® I/O Controller Chip
  • Контроль за состоянием системы
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU/System overheating warning
    5. CPU/System fan fail warning
    6. CPU/System fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • Микросхема BIOS
    1. 2 x 64 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Фирменные функции и технологии
    1. Support for Q-Flash
    2. Support for Xpress Install
    3. Support for APP Center
      * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
      @BIOS
      EasyTune
      EZ Setup
      USB Blocker
      Smart TimeLock
      Smart Recovery 2
      Fast Boot
    4. Support for ON/OFF Charge
  • ПО в комплекте поставки
    1. Norton® Internet Security (OEM version)
    2. Intel® Rapid Start Technology
    3. Intel® Smart Connect Technology
    4. Intel® Smart Response Technology
  • Операционная система
    1. Support for Windows 10/8.1/8/7
  • Форм-фактор
    1. ATX Form Factor; 30.5cm x 22.5cm
  • Примечания
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Процессор
      1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
      2. L3 cache varies with CPU
      (Please refer "CPU Support List" for more information.)
    • Чипсет
      1. Intel® Z87 Express Chipset
    • Подсистема памяти
      1. 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
        * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
      2. Dual channel memory architecture
      3. Support for DDR3 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules
      4. Support for non-ECC memory modules
      5. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • Графический интерфейс
    • Integrated Graphics Processor - Intel® HD Graphics support:
      1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
      2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
        * The DVI-D port does not support D-Sub connection by adapter.
      3. 1 x HDMI port, supporting a maximum resolution of 4096x2160
        * Support for HDMI 1.4a version.
      4. Maximum shared memory of 1 GB
    • Аудиоподсистема
      1. Realtek® ALC1150 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
      4. Support for S/PDIF Out
    • Сетевой
      LAN-интерфейс
      1. Qualcomm® Atheros Killer E2201 chip (10/100/1000 Mbit)
    • Разъёмы для плат расширения
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
        (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
        2. ŠŠ
      2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
        * The PCIEX4 slot shares bandwidth with all PCI Express x1 slots. All PCI Express x1 slots will become unavailable when a PCIe x4 expansion card is installed.
        * When installing a x4 or above card in the PCIEX4 slot, make sure to set PCIE Slot Configuration in BIOS Setup to x4.
        3. ŠŠ
      3. 2 x PCI Express x1 slots
        (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)

      4. 2 x PCI slots
    • Масштабируемость видеоподсистемы
      1. Support for 2-Way AMD CrossFire™ technology
    • Интерфейсы накопителей
    • Chipset:
      1. 6 x SATA 6Gb/s connectors (SATA3 0~5)
      2. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    • Интерфейс USB
    • Chipset:
      1. 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
      2. 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
    • Разъемы на системной плате
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 6 x SATA 6Gb/s connectors
      4. 1 x CPU fan header
      5. 3 x system fan headers
      6. 1 x front panel header
      7. 1 x front panel audio header
      8. 1 x S/PDIF Out header
      9. 1 x USB 3.0/2.0 header
      10. 2 x USB 2.0/1.1 headers
      11. 1 x serial port header
      12. 1 x Clear CMOS jumper
      13. 1 x audio gain control switch
    • Разъемы на задней панели
      1. 1 x PS/2 keyboard/mouse port
      2. 1 x coaxial S/PDIF Out connector
      3. 1 x optical S/PDIF Out connector
      4. 1 x D-Sub port
      5. 1 x DVI-D port
      6. 1 x HDMI port
      7. 4 x USB 3.0/2.0 ports
      8. 3 x USB 2.0/1.1 ports
      9. 1 x RJ-45 port
      10. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
    • Микросхема
      I/O-контроллера
      1. iTE® I/O Controller Chip
    • Контроль за состоянием системы
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan speed detection
      4. CPU/System overheating warning
      5. CPU/System fan fail warning
      6. CPU/System fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • Микросхема BIOS
      1. 2 x 64 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Фирменные функции и технологии
      1. Support for Q-Flash
      2. Support for Xpress Install
      3. Support for APP Center
        * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
        @BIOS
        EasyTune
        EZ Setup
        USB Blocker
        Smart TimeLock
        Smart Recovery 2
        Fast Boot
      4. Support for ON/OFF Charge
    • ПО в комплекте поставки
      1. Norton® Internet Security (OEM version)
      2. Intel® Rapid Start Technology
      3. Intel® Smart Connect Technology
      4. Intel® Smart Response Technology
    • Операционная система
      1. Support for Windows 10/8.1/8/7
    • Форм-фактор
      1. ATX Form Factor; 30.5cm x 22.5cm
    • Примечания
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Термины HDMI, HDMI High-Definition Multimedia Interface, фирменный стиль HDMI и логотип HDMI являются товарными знаками или зарегистрированными товарными знаками компании HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
