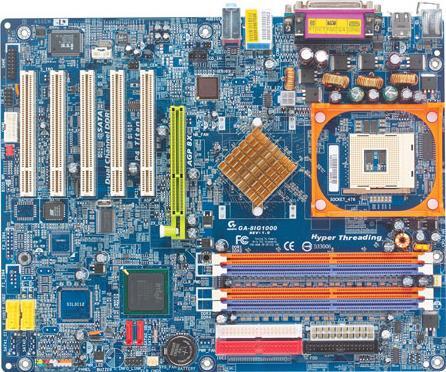

GA-8IG1000-L (Rev. 1.x)

Rev. 1.xRev. 2.x
ОбзорСпецификацииПоддержкаНовости & НаградыWhere to Buy

Спецификации

  • Процессор
    1. Socket 478 for Intel® Pentium® 4 processor.
  • Front Side Bus
    1. 800 / 533 / 400 MHz FSB
  • Чипсет
    1. North Bridge : Intel® 865G GMCH
    2. South Bridge : Intel® ICH5
    3. Integrated Peripherals :
      1. Realtek ALC655 CODEC
  • Подсистема памяти
    1. Type: Dual Channel DDR 400 / 333 / 266 support
    2. Max capacity: 4 GB (Please read FAQ for further information)
    3. DIMM slots: 4
  • Разъёмы для плат расширения
    1. 1 x AGP 8x slot
    2. 5 x PCI slots (PCI 2.3 compliant)
  • Разъемы на системной плате
    1. 2 x Serial ATA ports
    2. 2 x USB 2.0 (supports 4 ports by cable)
    3. 2 x UltraDMA 100/66 Bus Master IDE
    4. 1 x FDD
    5. CD/AUX in
    6. 1 x COM port
    7. 1 x Game port pin header
  • Разъемы на задней панели
    1. 4 x USB 2.0 ports
    2. 1 x LPT port
    3. 1 x VGA port
    4. 1 x COM port
    5. 1 x RJ45 Lan port
    6. 3 x Audio ports(Line-in / Line-out / MIC)
    7. 2 x PS/2 ports (Keyboard/Mouse)
  • Контроль за состоянием системы
    1. ITE 8712F
    2. System health status auto-detect and report by BIOS
    3. Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.
  • Микросхема BIOS
    1. 1 x 3M bit flash ROM, Award BIOS
  • ПО в комплекте поставки
    1. Norton Internet Security 2003
      1. Norton Anti Virus™
      2. Norton™ Personal Firewall
      3. Norton™ Privacy Control
      4. Norton™ Parental Control
      5. Norton™ Spam Alert
    2. GIGABYTE Windows Utility Manager
    3. Adobe Acrobat Reader
  • Форм-фактор
    1. ATX
    2. 30.5cm x 24.4cm
  • Driver
    1. Intel® chipset software installation utility
    2. Intel® Graphics driver
    3. Realtek audio driver
    4. USB2.0 driver
    5. Intel LAN driver
  • Other Features
    1. Xpress Install
    2. Xpress Recovery
    3. Xpress BIOS Rescue
    4. EasyTune™ 4
    5. @BIOS
    6. Q-Flash™
  • Примечания
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Процессор
      1. Socket 478 for Intel® Pentium® 4 processor.
    • Front Side Bus
      1. 800 / 533 / 400 MHz FSB
    • Чипсет
      1. North Bridge : Intel® 865G GMCH
      2. South Bridge : Intel® ICH5
      3. Integrated Peripherals :
        1. Realtek ALC655 CODEC
    • Подсистема памяти
      1. Type: Dual Channel DDR 400 / 333 / 266 support
      2. Max capacity: 4 GB (Please read FAQ for further information)
      3. DIMM slots: 4
    • Разъёмы для плат расширения
      1. 1 x AGP 8x slot
      2. 5 x PCI slots (PCI 2.3 compliant)
    • Разъемы на системной плате
      1. 2 x Serial ATA ports
      2. 2 x USB 2.0 (supports 4 ports by cable)
      3. 2 x UltraDMA 100/66 Bus Master IDE
      4. 1 x FDD
      5. CD/AUX in
      6. 1 x COM port
      7. 1 x Game port pin header
    • Разъемы на задней панели
      1. 4 x USB 2.0 ports
      2. 1 x LPT port
      3. 1 x VGA port
      4. 1 x COM port
      5. 1 x RJ45 Lan port
      6. 3 x Audio ports(Line-in / Line-out / MIC)
      7. 2 x PS/2 ports (Keyboard/Mouse)
    • Контроль за состоянием системы
      1. ITE 8712F
      2. System health status auto-detect and report by BIOS
      3. Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.
    • Микросхема BIOS
      1. 1 x 3M bit flash ROM, Award BIOS
    • ПО в комплекте поставки
      1. Norton Internet Security 2003
        1. Norton Anti Virus™
        2. Norton™ Personal Firewall
        3. Norton™ Privacy Control
        4. Norton™ Parental Control
        5. Norton™ Spam Alert
      2. GIGABYTE Windows Utility Manager
      3. Adobe Acrobat Reader
    • Форм-фактор
      1. ATX
      2. 30.5cm x 24.4cm
    • Driver
      1. Intel® chipset software installation utility
      2. Intel® Graphics driver
      3. Realtek audio driver
      4. USB2.0 driver
      5. Intel LAN driver
    • Other Features
      1. Xpress Install
      2. Xpress Recovery
      3. Xpress BIOS Rescue
      4. EasyTune™ 4
      5. @BIOS
      6. Q-Flash™
    • Примечания
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Термины HDMI, HDMI High-Definition Multimedia Interface, фирменный стиль HDMI и логотип HDMI являются товарными знаками или зарегистрированными товарными знаками компании HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
