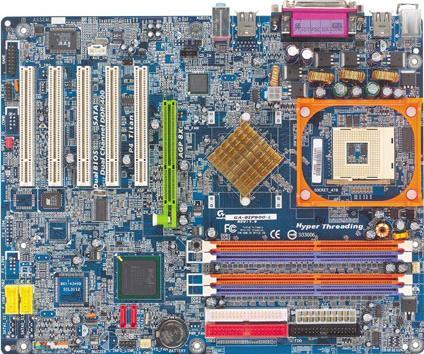

GA-8IP900-L (Rev. 1.0)

ОбзорСпецификацииПоддержкаНовости & НаградыWhere to Buy

Спецификации

  • Процессор
    1. Socket 478 for Intel® new 0.13 micron-process Pentium® 4 processor with Hyper-Threading technology
    2. 533/400 MHz FSB
  • Front Side Bus
    1. 533 / 400 MHz
  • Чипсет
    1. North bridge: Intel 865P
    2. Intel® PRO/100 VE LAN chip
    3. South bridge: Intel ICH5
    4. Super I/O: ITE IT8712 chip
    5. Realtek ALC655 Audio AC'97 CODEC
    6. 2M bit flash ROM
  • Подсистема памяти
    1. Type: DDR333 (PC2700)/ DDR266 (PC2100) - 184pin
    2. Max capacity: Up to 4GB by 4 DIMM slots in two channel (Please read FAQ for further information)
  • Разъёмы для плат расширения
    1. 1 x AGP universal slot (8x/4x-AGP 3.0 compliant), supports 1.5v display card only.
    2. 5 x PCI slots (PCI 2.2 compliant)
  • Разъемы на системной плате
    1. 2 x Serial ATA connector
    2. 2 x UDMA ATA 100/66 Bus Master IDE connectors
    3. 1 x FDD connector
    4. 2 x USB 2.0/1.1 connectors (support 4 ports by cable)
    5. S/P DIF input/output pin header
    6. 2x cooling fan pin headers
    7. CD/AUX in
    8. 1 x Game/Midi connector
  • Разъемы на задней панели
    1. PS/2 Keyboard / Mouse
    2. 4 x USB 2.0/1.1 ports
    3. 2 x COM ports
    4. 1 x LPT
    5. 1 X RJ45 LAN Port
    6. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
  • Контроль за состоянием системы
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.
  • Микросхема BIOS
    1. 2M bit flash ROM, enhanced ACPI feature for PC98/Win98/Win2000/Me/ CE/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    2. IDE#1~#2, SCSI, LS120, ZIP and CD-ROM bootable
  • ПО в комплекте поставки
    1. @BIOS™, Easy Tune™ 4, Q-Flash™, GMC™
    2. Norton Internet Security
      1. Norton Anti Virus™
      2. Norton™ Personal Firewall
      3. Norton™ Privacy Control
      4. Norton™ Parental Control
      5. Norton™ Spam Alert
    3. GIGABYTE Windows Utility Manager
    4. Adobe Acrobat Reader
  • Форм-фактор
    1. ATX form factor, 4 layers PCB (30.5 x 24.4 cm)
  • CPU/AGP/DIMM setting
    1. CPU FSB / Multiplier / Vcore Voltage
    2. adjustable via BIOS- AGP Voltage / Clock
    3. adjustable via BIOS- DIMM Voltage /
    4. Clock adjustable via BIOS
  • Driver
    1. Intel chipset software installation utility
    2. Intel® Graphics driver
    3. REALTEK audio driver
    4. Intel Pro/100 VE LAN Driver
    5. USB2.0 driver
  • Other Features
    1. Suspend to RAM (STR)
    2. Supports USB KB / MS wake up from S3
  • Power
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch
  • Примечания
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Процессор
      1. Socket 478 for Intel® new 0.13 micron-process Pentium® 4 processor with Hyper-Threading technology
      2. 533/400 MHz FSB
    • Front Side Bus
      1. 533 / 400 MHz
    • Чипсет
      1. North bridge: Intel 865P
      2. Intel® PRO/100 VE LAN chip
      3. South bridge: Intel ICH5
      4. Super I/O: ITE IT8712 chip
      5. Realtek ALC655 Audio AC'97 CODEC
      6. 2M bit flash ROM
    • Подсистема памяти
      1. Type: DDR333 (PC2700)/ DDR266 (PC2100) - 184pin
      2. Max capacity: Up to 4GB by 4 DIMM slots in two channel (Please read FAQ for further information)
    • Разъёмы для плат расширения
      1. 1 x AGP universal slot (8x/4x-AGP 3.0 compliant), supports 1.5v display card only.
      2. 5 x PCI slots (PCI 2.2 compliant)
    • Разъемы на системной плате
      1. 2 x Serial ATA connector
      2. 2 x UDMA ATA 100/66 Bus Master IDE connectors
      3. 1 x FDD connector
      4. 2 x USB 2.0/1.1 connectors (support 4 ports by cable)
      5. S/P DIF input/output pin header
      6. 2x cooling fan pin headers
      7. CD/AUX in
      8. 1 x Game/Midi connector
    • Разъемы на задней панели
      1. PS/2 Keyboard / Mouse
      2. 4 x USB 2.0/1.1 ports
      3. 2 x COM ports
      4. 1 x LPT
      5. 1 X RJ45 LAN Port
      6. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
    • Контроль за состоянием системы
      1. System health status auto-detect and report by BIOS
      2. Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.
    • Микросхема BIOS
      1. 2M bit flash ROM, enhanced ACPI feature for PC98/Win98/Win2000/Me/ CE/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
      2. IDE#1~#2, SCSI, LS120, ZIP and CD-ROM bootable
    • ПО в комплекте поставки
      1. @BIOS™, Easy Tune™ 4, Q-Flash™, GMC™
      2. Norton Internet Security
        1. Norton Anti Virus™
        2. Norton™ Personal Firewall
        3. Norton™ Privacy Control
        4. Norton™ Parental Control
        5. Norton™ Spam Alert
      3. GIGABYTE Windows Utility Manager
      4. Adobe Acrobat Reader
    • Форм-фактор
      1. ATX form factor, 4 layers PCB (30.5 x 24.4 cm)
    • CPU/AGP/DIMM setting
      1. CPU FSB / Multiplier / Vcore Voltage
      2. adjustable via BIOS- AGP Voltage / Clock
      3. adjustable via BIOS- DIMM Voltage /
      4. Clock adjustable via BIOS
    • Driver
      1. Intel chipset software installation utility
      2. Intel® Graphics driver
      3. REALTEK audio driver
      4. Intel Pro/100 VE LAN Driver
      5. USB2.0 driver
    • Other Features
      1. Suspend to RAM (STR)
      2. Supports USB KB / MS wake up from S3
    • Power
      1. ATX power connector and ATX 12V connector
      2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch
    • Примечания
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Термины HDMI, HDMI High-Definition Multimedia Interface, фирменный стиль HDMI и логотип HDMI являются товарными знаками или зарегистрированными товарными знаками компании HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
