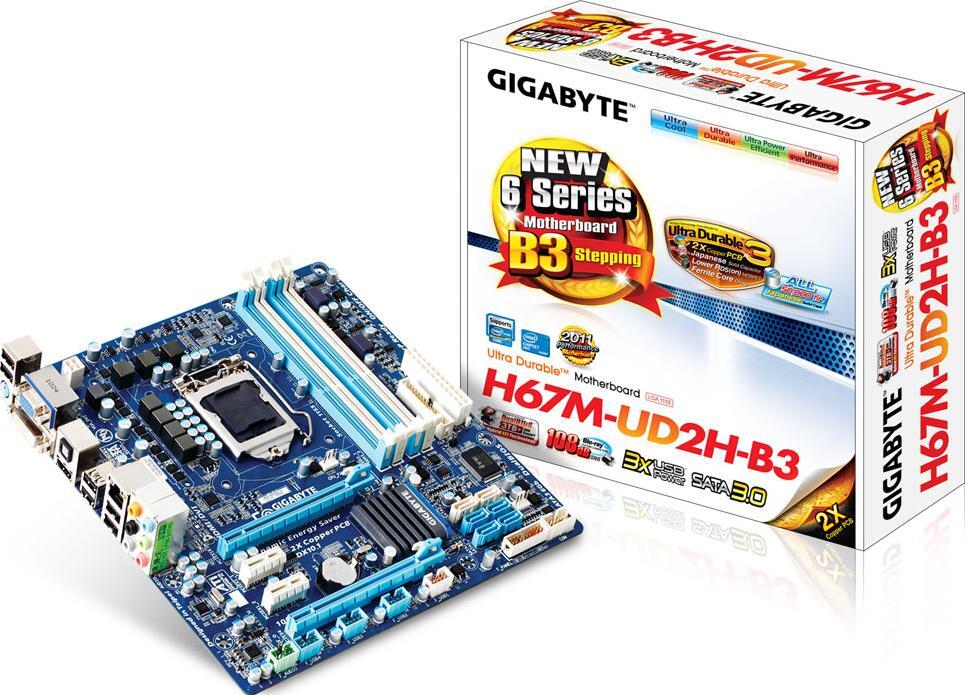

GA-H67M-UD2H-B3 (Rev. 1.1)

Rev. 1.1Rev. 1.0
Intel® H67 Chipset
ОбзорСпецификацииПоддержкаНовости & НаградыLearn MoreWhere to Buy

Спецификации

  • Процессор
    1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
    2. L3 cache varies with CPU
    (Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
  • Чипсет
    1. Intel® H67 Express Chipset
  • Подсистема памяти
    1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
      * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
    2. Dual channel memory architecture
    3. Support for DDR3 1333/1066/800 MHz memory modules
    4. Support for non-ECC memory modules
    (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
  • Графический интерфейс
  • Integrated Graphics Processor:
    1. 1 x D-Sub port
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
      * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 1920x1200
  • Аудиоподсистема
    1. Realtek ALC889 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for Dolby® Home Theater
    5. Support for S/PDIF Out
  • Сетевой
    LAN-интерфейс
    1. 1 x Realtek RTL8111E chip (10/100/1000 Mbit)
  • Разъёмы для плат расширения
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    3. 2 x PCI Express x1 slots
      (All PCI Express slots conform to PCI Express 2.0 standard.)
  • Масштабируемость видеоподсистемы
    1. Support for ATI CrossFireX™ technology
      * The PCIEX16 slot operates at up to x4 mode when ATI CrossFireX™ is enabled.
  • Интерфейсы накопителей
  • Chipset:
    1. 2 x SATA 6Gb/s connectors (SATA3_0, SATA3_1) supporting up to 2 SATA 6Gb/s devices
    2. 4 x SATA 3Gb/s connectors (SATA2_2~SATA2_5) supporting up to 4 SATA 3Gb/s devices
    3. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
      * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
  • Интерфейс USB
  • Chipset:
    1. Up to 14 USB 2.0/1.1 ports (6 on the back panel, 8 via the USB brackets connected to the internal USB headers)
  • Разъемы на системной плате
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 2 x SATA 6Gb/s connectors
    4. 4 x SATA 3Gb/s connectors
    5. 1 x CPU fan header
    6. 1 x system fan header
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x S/PDIF Out header
    10. 4 x USB 2.0/1.1 headers
    11. 1 x parallel port header
    12. 1 x serial port header
    13. 1 x clearing CMOS jumper
  • Разъемы на задней панели
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x DVI-D port
    4. 1 x optical S/PDIF Out connector
    5. 1 x HDMI port
    6. 6 x USB 2.0/1.1 ports
    7. 1 x RJ-45 port
    8. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
  • Микросхема
    I/O-контроллера
    1. iTE IT8728 chip
  • Контроль за состоянием системы
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System/Power fan speed detection
    4. CPU overheating warning
    5. CPU/System/Power fan fail warning
    6. CPU/System fan speed control
      *Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
  • Микросхема BIOS
    1. 2 x 32 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Фирменные функции и технологии
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress BIOS Rescue
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune
      * Available functions in EasyTune may differ by motherboard model.
    8. Support for Dynamic Energy Saver™ 2
    9. Support for Smart 6™
    10. Support for Auto Green
    11. Support for eXtreme Hard Drive (X.H.D)
    12. Support for ON/OFF Charge
    13. Support for Cloud OC
    14. Support for Q-Share
  • ПО в комплекте поставки
    1. Norton Internet Security (OEM version)
  • Операционная система
    1. Support for Microsoft® Windows® 8/7/Vista/XP
  • Форм-фактор
    1. Micro ATX Form Factor; 24.4cm x 24.4cm
  • Примечания
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Процессор
      1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
      2. L3 cache varies with CPU
      (Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
    • Чипсет
      1. Intel® H67 Express Chipset
    • Подсистема памяти
      1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
        * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
      2. Dual channel memory architecture
      3. Support for DDR3 1333/1066/800 MHz memory modules
      4. Support for non-ECC memory modules
      (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
    • Графический интерфейс
    • Integrated Graphics Processor:
      1. 1 x D-Sub port
      2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
        * The DVI-D port does not support D-Sub connection by adapter.
      3. 1 x HDMI port, supporting a maximum resolution of 1920x1200
    • Аудиоподсистема
      1. Realtek ALC889 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
      4. Support for Dolby® Home Theater
      5. Support for S/PDIF Out
    • Сетевой
      LAN-интерфейс
      1. 1 x Realtek RTL8111E chip (10/100/1000 Mbit)
    • Разъёмы для плат расширения
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      3. 2 x PCI Express x1 slots
        (All PCI Express slots conform to PCI Express 2.0 standard.)
    • Масштабируемость видеоподсистемы
      1. Support for ATI CrossFireX™ technology
        * The PCIEX16 slot operates at up to x4 mode when ATI CrossFireX™ is enabled.
    • Интерфейсы накопителей
    • Chipset:
      1. 2 x SATA 6Gb/s connectors (SATA3_0, SATA3_1) supporting up to 2 SATA 6Gb/s devices
      2. 4 x SATA 3Gb/s connectors (SATA2_2~SATA2_5) supporting up to 4 SATA 3Gb/s devices
      3. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
        * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
    • Интерфейс USB
    • Chipset:
      1. Up to 14 USB 2.0/1.1 ports (6 on the back panel, 8 via the USB brackets connected to the internal USB headers)
    • Разъемы на системной плате
      1. 1 x 24-pin ATX main power connector
      2. 1 x 4-pin ATX 12V power connector
      3. 2 x SATA 6Gb/s connectors
      4. 4 x SATA 3Gb/s connectors
      5. 1 x CPU fan header
      6. 1 x system fan header
      7. 1 x front panel header
      8. 1 x front panel audio header
      9. 1 x S/PDIF Out header
      10. 4 x USB 2.0/1.1 headers
      11. 1 x parallel port header
      12. 1 x serial port header
      13. 1 x clearing CMOS jumper
    • Разъемы на задней панели
      1. 1 x PS/2 keyboard/mouse port
      2. 1 x D-Sub port
      3. 1 x DVI-D port
      4. 1 x optical S/PDIF Out connector
      5. 1 x HDMI port
      6. 6 x USB 2.0/1.1 ports
      7. 1 x RJ-45 port
      8. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
    • Микросхема
      I/O-контроллера
      1. iTE IT8728 chip
    • Контроль за состоянием системы
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System/Power fan speed detection
      4. CPU overheating warning
      5. CPU/System/Power fan fail warning
      6. CPU/System fan speed control
        *Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
    • Микросхема BIOS
      1. 2 x 32 Mbit flash
      2. Use of licensed AWARD BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    • Фирменные функции и технологии
      1. Support for @BIOS
      2. Support for Q-Flash
      3. Support for Xpress BIOS Rescue
      4. Support for Download Center
      5. Support for Xpress Install
      6. Support for Xpress Recovery2
      7. Support for EasyTune
        * Available functions in EasyTune may differ by motherboard model.
      8. Support for Dynamic Energy Saver™ 2
      9. Support for Smart 6™
      10. Support for Auto Green
      11. Support for eXtreme Hard Drive (X.H.D)
      12. Support for ON/OFF Charge
      13. Support for Cloud OC
      14. Support for Q-Share
    • ПО в комплекте поставки
      1. Norton Internet Security (OEM version)
    • Операционная система
      1. Support for Microsoft® Windows® 8/7/Vista/XP
    • Форм-фактор
      1. Micro ATX Form Factor; 24.4cm x 24.4cm
    • Примечания
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Термины HDMI, HDMI High-Definition Multimedia Interface, фирменный стиль HDMI и логотип HDMI являются товарными знаками или зарегистрированными товарными знаками компании HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
