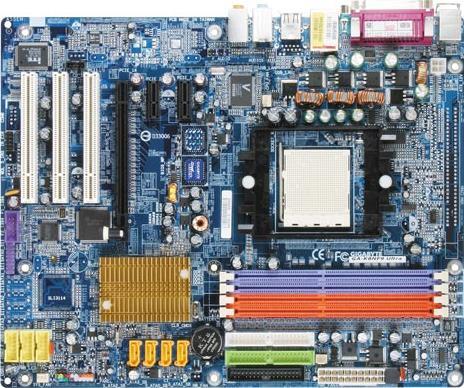

GA-K8NF9 Ultra (Rev. 1.x)

Rev. 1.xRev. 2.x
ОбзорСпецификацииПоддержкаНовости & НаградыWhere to Buy

Спецификации

  • Процессор
    1. Socket 939 supports AMD Athlon64 X2/ 64 FX/ 64
  • Чипсет
    1. NVIDIA nForce4 Ultra
    2. Super I/O: ITE IT8712 chip
    3. Integrated peripherals
      1. T.I. IEEE1394b controller
      2. CICADA8201 Gigabit LAN PHY chip
      3. Realtek ALC850 Audio AC'97 Codec
  • Подсистема памяти
    1. Type: Dual channel DDR400/ 333/ 266 -184pin
    2. Max capacity: Up to 4GB by 4 DIMM slots
  • Разъёмы для плат расширения
    1. 1 x PCI-Express X 16 slot, supports PCI-Express interface Graphics card
    2. 2 x PCI-Express X 1 slots
    3. 3 x PCI slots (PCI 2.3 compliant)
  • Разъемы на системной плате
    1. 4 X Serial ATA 3.0Gb/s
    2. 2 x UDMA ATA 133/100/66 Bus Master IDE connectors
    3. 1 x FDD connector
    4. 3 x USB 2.0/1.1 connectors (supports 6 ports)
    5. 2 x IEEE 1394b connectors (supports 3 ports)
    6. 2 x cooling fan pin headers
    7. CD in
  • Разъемы на задней панели
    1. 4 x USB 2.0/1.1 ports
    2. 1 x RJ45 ports
    3. Audio (4 x Line-out/ 1 x Line-in/ 1 x MIC) connector
    4. Coaxial S/PDIF input/ output function
    5. PS/2 Keyboard/ Mouse
    6. 1 x COM port
    7. 1 x LPT
  • Контроль за состоянием системы
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for case open, CPU voltage, and fan speed
  • Микросхема BIOS
    1. 2 X 4M bit flash ROM, Award BIOS
  • Форм-фактор
    1. ATX form factor
    2. 30.5 x 24.4 cm
  • CPU/AGP/DIMM setting
    1. CPU HT / Vcore Voltage adjustable via BIOS
    2. PCI-ExpessX16 Voltage / Clock adjustable via BIOS
    3. DIMM Voltage adjustable via BIOS
  • Other Features
    1. Support RAID 0,1,0+1 Function
    2. Support NVIDIA Firewall
    3. Norton Internet Security
    4. Download Center
    5. XpressTM Installation
    6. XpressTM Recovery
    7. Q-FlashTM
    8. @BIOSTM
  • Power
    1. ATX power connector and ATX 12V connector
  • Примечания
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. This product does not support Win9X/ME, due to most hardware/software vendors no longer offer support for Win9X/ME. However we still offer available related drivers to serve our customers.
  • Процессор
    1. Socket 939 supports AMD Athlon64 X2/ 64 FX/ 64
  • Чипсет
    1. NVIDIA nForce4 Ultra
    2. Super I/O: ITE IT8712 chip
    3. Integrated peripherals
      1. T.I. IEEE1394b controller
      2. CICADA8201 Gigabit LAN PHY chip
      3. Realtek ALC850 Audio AC'97 Codec
  • Подсистема памяти
    1. Type: Dual channel DDR400/ 333/ 266 -184pin
    2. Max capacity: Up to 4GB by 4 DIMM slots
  • Разъёмы для плат расширения
    1. 1 x PCI-Express X 16 slot, supports PCI-Express interface Graphics card
    2. 2 x PCI-Express X 1 slots
    3. 3 x PCI slots (PCI 2.3 compliant)
  • Разъемы на системной плате
    1. 4 X Serial ATA 3.0Gb/s
    2. 2 x UDMA ATA 133/100/66 Bus Master IDE connectors
    3. 1 x FDD connector
    4. 3 x USB 2.0/1.1 connectors (supports 6 ports)
    5. 2 x IEEE 1394b connectors (supports 3 ports)
    6. 2 x cooling fan pin headers
    7. CD in
  • Разъемы на задней панели
    1. 4 x USB 2.0/1.1 ports
    2. 1 x RJ45 ports
    3. Audio (4 x Line-out/ 1 x Line-in/ 1 x MIC) connector
    4. Coaxial S/PDIF input/ output function
    5. PS/2 Keyboard/ Mouse
    6. 1 x COM port
    7. 1 x LPT
  • Контроль за состоянием системы
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for case open, CPU voltage, and fan speed
  • Микросхема BIOS
    1. 2 X 4M bit flash ROM, Award BIOS
  • Форм-фактор
    1. ATX form factor
    2. 30.5 x 24.4 cm
  • CPU/AGP/DIMM setting
    1. CPU HT / Vcore Voltage adjustable via BIOS
    2. PCI-ExpessX16 Voltage / Clock adjustable via BIOS
    3. DIMM Voltage adjustable via BIOS
  • Other Features
    1. Support RAID 0,1,0+1 Function
    2. Support NVIDIA Firewall
    3. Norton Internet Security
    4. Download Center
    5. XpressTM Installation
    6. XpressTM Recovery
    7. Q-FlashTM
    8. @BIOSTM
  • Power
    1. ATX power connector and ATX 12V connector
  • Примечания
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. This product does not support Win9X/ME, due to most hardware/software vendors no longer offer support for Win9X/ME. However we still offer available related drivers to serve our customers.

* Термины HDMI, HDMI High-Definition Multimedia Interface, фирменный стиль HDMI и логотип HDMI являются товарными знаками или зарегистрированными товарными знаками компании HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
