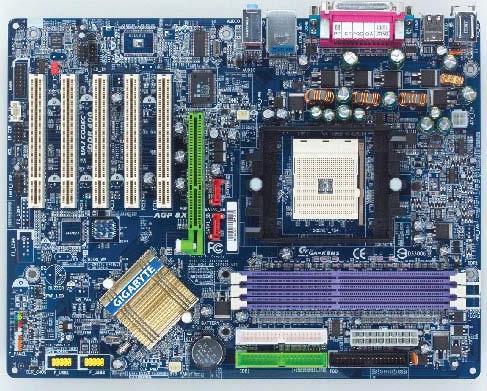

GA-K8NS (Rev. 1.x)

Rev. 1.xRev. 2.x
ОбзорСпецификацииПоддержкаНовости & НаградыWhere to Buy

Спецификации

  • Процессор
    1. Socket 754 for AMD Athlon64
  • Чипсет
    1. NVIDIA nForce3 250 Platform Processor
    2. Super I/O: ITE IT8712F chip
    3. Integrated Peripherals
      1. ICS 1883 LAN PHY chip
      2. Realtek ALC850 Audio AC'97 Codec
  • Подсистема памяти
    1. Type: DDR400/ 333/ 266- 184pin
    2. Max capacity: Up to 3GB by 3 DIMM slots
  • Разъёмы для плат расширения
    1. 1 x AGP slot (8x/4x-AGP 3.0 compliant), supports 1.5v display card only.
    2. 5 x PCI slots (PCI 2.3 compliant)
  • Разъемы на системной плате
    1. 2 x Serial ATA connectors
    2. 2 x UDMA ATA 133/100/66 Bus Master IDE connectors
    3. 1 x FDD connector
    4. 2 x USB 2.0/1.1 connectors (supports 4 ports)
    5. S/P DIF input/output pin header
    6. 2 x cooling fan pin headers
    7. CD/AUX in
    8. 1 x Game/Midi connector
  • Разъемы на задней панели
    1. PS/2 Keyboard / Mouse
    2. 4 x USB 2.0/1.1 ports
    3. 1 x RJ45 ports
    4. 2 x COM ports
    5. 1 x LPT
    6. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
  • Контроль за состоянием системы
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for CPU voltage and fan speed.
  • Микросхема BIOS
    1. 2 M bit flash ROM, Award BIOS
  • Форм-фактор
    1. ATX form factor
    2. 30.5 X 23.0
  • CPU/AGP/DIMM setting
    1. CPU FSB / Vcore Voltage adjustable via BIOS
    2. AGP Voltage / Clock adjustable via BIOS
    3. DIMM Voltage / Clock adjustable via BIOS
  • Other Features
    1. Support NVIDIA Firewall
    2. XpressTM Installation
    3. XpressTM Recovery
    4. Q-FlashTM
    5. @BIOSTM
  • Power
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch
  • Примечания
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. This product does not support Win9X/ME, due to most hardware/software vendors no longer offer support for Win9X/ME. However we still offer available related drivers to serve our customers.
  • Процессор
    1. Socket 754 for AMD Athlon64
  • Чипсет
    1. NVIDIA nForce3 250 Platform Processor
    2. Super I/O: ITE IT8712F chip
    3. Integrated Peripherals
      1. ICS 1883 LAN PHY chip
      2. Realtek ALC850 Audio AC'97 Codec
  • Подсистема памяти
    1. Type: DDR400/ 333/ 266- 184pin
    2. Max capacity: Up to 3GB by 3 DIMM slots
  • Разъёмы для плат расширения
    1. 1 x AGP slot (8x/4x-AGP 3.0 compliant), supports 1.5v display card only.
    2. 5 x PCI slots (PCI 2.3 compliant)
  • Разъемы на системной плате
    1. 2 x Serial ATA connectors
    2. 2 x UDMA ATA 133/100/66 Bus Master IDE connectors
    3. 1 x FDD connector
    4. 2 x USB 2.0/1.1 connectors (supports 4 ports)
    5. S/P DIF input/output pin header
    6. 2 x cooling fan pin headers
    7. CD/AUX in
    8. 1 x Game/Midi connector
  • Разъемы на задней панели
    1. PS/2 Keyboard / Mouse
    2. 4 x USB 2.0/1.1 ports
    3. 1 x RJ45 ports
    4. 2 x COM ports
    5. 1 x LPT
    6. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
  • Контроль за состоянием системы
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for CPU voltage and fan speed.
  • Микросхема BIOS
    1. 2 M bit flash ROM, Award BIOS
  • Форм-фактор
    1. ATX form factor
    2. 30.5 X 23.0
  • CPU/AGP/DIMM setting
    1. CPU FSB / Vcore Voltage adjustable via BIOS
    2. AGP Voltage / Clock adjustable via BIOS
    3. DIMM Voltage / Clock adjustable via BIOS
  • Other Features
    1. Support NVIDIA Firewall
    2. XpressTM Installation
    3. XpressTM Recovery
    4. Q-FlashTM
    5. @BIOSTM
  • Power
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch
  • Примечания
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. This product does not support Win9X/ME, due to most hardware/software vendors no longer offer support for Win9X/ME. However we still offer available related drivers to serve our customers.

* Термины HDMI, HDMI High-Definition Multimedia Interface, фирменный стиль HDMI и логотип HDMI являются товарными знаками или зарегистрированными товарными знаками компании HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
