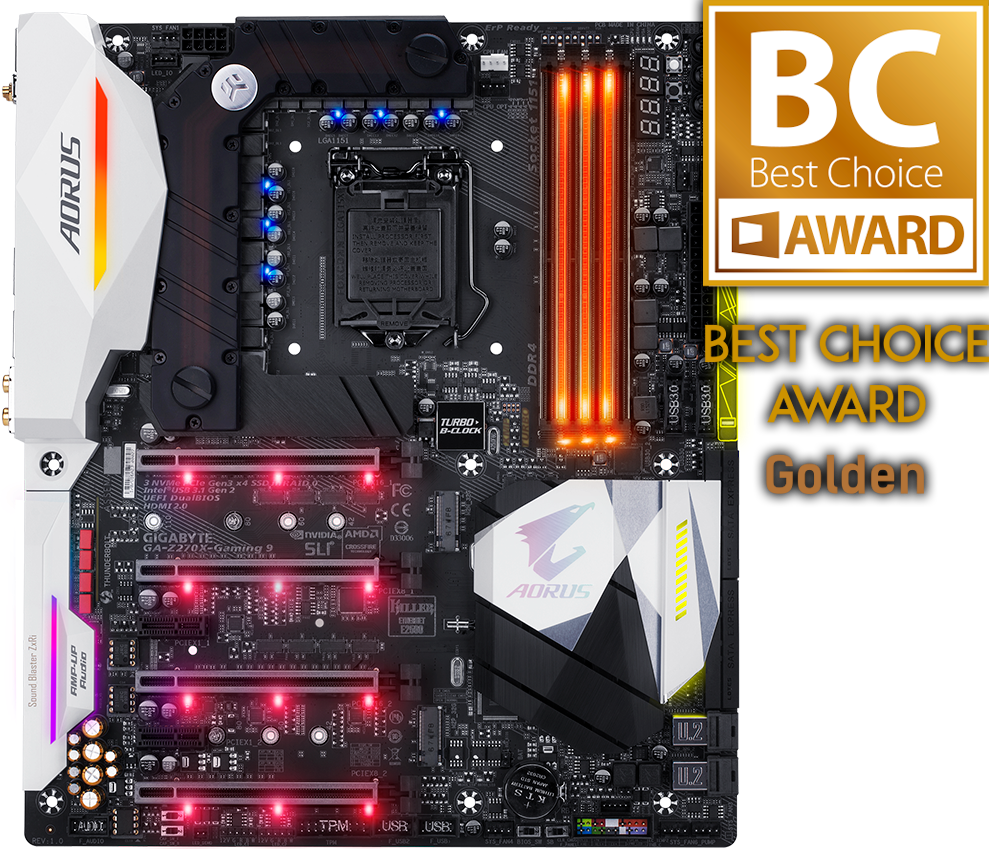

GA-Z270X-Gaming 9 (Rev. 1.0)

Intel^® Z270 Chipset

Compare

Спецификации

Процессор
1. Support for 7^th and 6^th generation Intel^® Core™ i7 processors/ Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1151 package
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)

Чипсет
1. Intel^® Z270 Express Chipset

Подсистема памяти
1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
  * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR4 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

Графический интерфейс
Integrated Graphics Processor+Intel^® Thunderbolt™ 3 Controller:
1. 1 x Intel^® Thunderbolt™ 3 connector, supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 4096x2304@60 Hz
  * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)
  * Support for DisplayPort 1.2 version.
Integrated Graphics Processor-Intel^® HD Graphics support:
1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
  * Support for DisplayPort 1.2 version.
Integrated Graphics Processor+MegaChips MCDP2800 chip:
1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.0 version. (Requires the latest Intel® graphics driver from the GIGABYTE website.)
Support for up to 3 displays at the same time
Maximum shared memory of 1 GB

Аудиоподсистема
1. Creative^® Sound Core 3D chip
2. 2 x JRC NJM2114 and 1 x TI Burr Brown^® OPA2134 operational amplifiers
3. Support for Sound Blaster ZxRi
4. High Definition Audio
5. 2/5.1-channel
6. Support for S/PDIF Out

Сетевой
LAN-интерфейс
1. 2 x Killer™ E2500 LAN chips (10/100/1000 Mbit)

Модули беспроводной связи
1. Killer™ Wireless-AC 1535
2. Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
3. Bluetooth 4.1
4. Support for 11ac wireless standard and up to 867 Mbps data rate
  * Actual data rate may vary depending on environment and equipment.

Разъёмы для плат расширения
1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.
2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
  * The PCIEX8_1 slot shares bandwidth with the PCIEX16_1 slot and the PCIEX8_2 slot with PCIEX16_2. The PCIEX16_1/PCIEX16_2 slot operates at up to x8 mode when the PCIEX8_1/PCIEX8_2 is populated.
  (All of the PCI Express x16 slots conform to PCI Express 3.0 standard.)
3. 2 x PCI Express x1 slots
  (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)

Масштабируемость видеоподсистемы
1. Support for NVIDIA^® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA^® SLI™ technologies
2. Support for AMD Quad-GPU CrossFireX™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies

Интерфейсы накопителей
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_32G)
2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G)
3. 2 x U.2 connectors
4. 3 x SATA Express connectors
5. 6 x SATA 6Gb/s connectors (SATA3 0~5)
6. Support for RAID 0, RAID 1, RAID 5, and RAID 10
  * Refer to "1-12 Internal Connectors," for the installation notices for the U.2, M.2, and SATA connectors.
ASMedia^® ASM1061 chip:
1. 2 x SATA 6Gb/s connectors (SATA3 6, 7), supporting AHCI mode only

Интерфейс USB
Chipset+Intel^® Thunderbolt™ 3 Controller:
1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
Chipset+Realtek^® USB 3.1 Gen 1 Hub:
1. 4 x USB 3.1 Gen 1 ports available through the internal USB headers
Chipset:
1. 5 x USB 3.1 Gen 1 ports on the back panel
2. 4 x USB 2.0/1.1 ports available through the internal USB headers

Разъемы на системной плате
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 4 x system fan headers
6. 2 x system fan/water cooling pump headers
7. 1 x I/O shield audio LED power connector
8. 2 x RGB (RGBW) LED strip extension cable headers
9. 3 x SATA Express connectors
10. 8 x SATA 6Gb/s connectors
11. 2 x M.2 Socket 3 connectors
12. 2 x U.2 connectors
13. 1 x front panel header
14. 1 x front panel audio header
15. 2 x USB 3.1 Gen 1 headers
16. 2 x USB 2.0/1.1 headers
17. 1 x Trusted Platform Module (TPM) header
18. 1 x Clear CMOS jumper
19. 2 x temperature sensor headers
20. 1 x power button
21. 1 x reset button
22. 1 x Clear CMOS button
23. 1 x ECO button
24. 1 x OC button
25. 2 x audio gain control switches
26. 2 x BIOS switches
27. Voltage Measurement Points

Разъемы на задней панели
1. 1 x PS/2 keyboard/mouse port
2. 2 x MMCX antenna connectors (2T2R)
3. 1 x HDMI port
4. 1 x DisplayPort
5. 1 x Thunderbolt™ 3 connector (USB Type-C™ port, with USB 3.1 Gen 2 support)
6. 1 x USB 3.1 Gen 2 Type-A port (red)
7. 5 x USB 3.1 Gen 1 ports
8. 2 x RJ-45 ports
9. 1 x optical S/PDIF Out connector
10. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone)

Микросхема
I/O-контроллера
1. iTE^® I/O Controller Chip

Контроль за состоянием системы
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

Микросхема BIOS
1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. Support for Q-Flash Plus
  * The USB flash drive used must be a USB 2.0 flash drive.
5. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Фирменные функции и технологии
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  3D OSD
  @BIOS
  AutoGreen
  BIOS Setup
  Color Temperature
  Cloud Station
  EasyTune
  Easy RAID
  Fast Boot
  Game Boost
  GIGABYTE HW OC APP
  ON/OFF Charge
  Platform Power Management
  RGB Fusion
  Smart Backup
  Smart Keyboard
  Smart TimeLock
  System Information Viewer
  USB Blocker
  USB DAC-UP 2
  V-Tuner
2. Support for 3TB+ Unlock
3. Support for Q-Flash
4. Support for Xpress Install

ПО в комплекте поставки
1. Norton^® Internet Security (OEM version)
2. Intel^® Optane™ Memory Ready

Операционная система
1. Windows^® 10 64-bit (for 7^th Generation Intel^® Processors)
2. Windows^® 10 64-bit / Windows^® 8.1 64-bit / Windows^® 7 32-bit / 64-bits (for 6^th Generation Intel^® Processors)
  * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

Форм-фактор
1. E-ATX Form Factor; 30.5cm x 26.4cm

Box Contents
1. GA-Z270X-Gaming 9 motherboard
2. Motherboard driver disk
3. User's Manual
4. Quick Installation Guide
5. Six SATA cables
6. I/O Shield
7. One Wi-Fi antenna
8. One Wi-Fi antenna retention cover
9. One GC-SLI23P SLI bridge connector
10. One 3-Way SLI bridge connector
11. One 4-Way SLI bridge connector
12. One 2-Way CrossFire bridge connector
13. Two RGB (RGBW) LED strip extension cables
14. One Accent Lighting LED Strip
15. Two thermistor cables
16. One G Connector
17. Two Velcro Cable Ties
18. One pack of back I/O dust covers

Примечания
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Процессор
1. Support for 7^th and 6^th generation Intel^® Core™ i7 processors/ Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1151 package
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)

Чипсет
1. Intel^® Z270 Express Chipset

Подсистема памяти
1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
  * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR4 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

Графический интерфейс
Integrated Graphics Processor+Intel^® Thunderbolt™ 3 Controller:
1. 1 x Intel^® Thunderbolt™ 3 connector, supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 4096x2304@60 Hz
  * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)
  * Support for DisplayPort 1.2 version.
Integrated Graphics Processor-Intel^® HD Graphics support:
1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
  * Support for DisplayPort 1.2 version.
Integrated Graphics Processor+MegaChips MCDP2800 chip:
1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.0 version. (Requires the latest Intel® graphics driver from the GIGABYTE website.)
Support for up to 3 displays at the same time
Maximum shared memory of 1 GB

Аудиоподсистема
1. Creative^® Sound Core 3D chip
2. 2 x JRC NJM2114 and 1 x TI Burr Brown^® OPA2134 operational amplifiers
3. Support for Sound Blaster ZxRi
4. High Definition Audio
5. 2/5.1-channel
6. Support for S/PDIF Out

Сетевой
LAN-интерфейс
1. 2 x Killer™ E2500 LAN chips (10/100/1000 Mbit)

Модули беспроводной связи
1. Killer™ Wireless-AC 1535
2. Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
3. Bluetooth 4.1
4. Support for 11ac wireless standard and up to 867 Mbps data rate
  * Actual data rate may vary depending on environment and equipment.

Разъёмы для плат расширения
1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.
2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
  * The PCIEX8_1 slot shares bandwidth with the PCIEX16_1 slot and the PCIEX8_2 slot with PCIEX16_2. The PCIEX16_1/PCIEX16_2 slot operates at up to x8 mode when the PCIEX8_1/PCIEX8_2 is populated.
  (All of the PCI Express x16 slots conform to PCI Express 3.0 standard.)
3. 2 x PCI Express x1 slots
  (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)

Масштабируемость видеоподсистемы
1. Support for NVIDIA^® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA^® SLI™ technologies
2. Support for AMD Quad-GPU CrossFireX™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies

Интерфейсы накопителей
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_32G)
2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G)
3. 2 x U.2 connectors
4. 3 x SATA Express connectors
5. 6 x SATA 6Gb/s connectors (SATA3 0~5)
6. Support for RAID 0, RAID 1, RAID 5, and RAID 10
  * Refer to "1-12 Internal Connectors," for the installation notices for the U.2, M.2, and SATA connectors.
ASMedia^® ASM1061 chip:
1. 2 x SATA 6Gb/s connectors (SATA3 6, 7), supporting AHCI mode only

Интерфейс USB
Chipset+Intel^® Thunderbolt™ 3 Controller:
1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
Chipset+Realtek^® USB 3.1 Gen 1 Hub:
1. 4 x USB 3.1 Gen 1 ports available through the internal USB headers
Chipset:
1. 5 x USB 3.1 Gen 1 ports on the back panel
2. 4 x USB 2.0/1.1 ports available through the internal USB headers

Разъемы на системной плате
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 4 x system fan headers
6. 2 x system fan/water cooling pump headers
7. 1 x I/O shield audio LED power connector
8. 2 x RGB (RGBW) LED strip extension cable headers
9. 3 x SATA Express connectors
10. 8 x SATA 6Gb/s connectors
11. 2 x M.2 Socket 3 connectors
12. 2 x U.2 connectors
13. 1 x front panel header
14. 1 x front panel audio header
15. 2 x USB 3.1 Gen 1 headers
16. 2 x USB 2.0/1.1 headers
17. 1 x Trusted Platform Module (TPM) header
18. 1 x Clear CMOS jumper
19. 2 x temperature sensor headers
20. 1 x power button
21. 1 x reset button
22. 1 x Clear CMOS button
23. 1 x ECO button
24. 1 x OC button
25. 2 x audio gain control switches
26. 2 x BIOS switches
27. Voltage Measurement Points

Разъемы на задней панели
1. 1 x PS/2 keyboard/mouse port
2. 2 x MMCX antenna connectors (2T2R)
3. 1 x HDMI port
4. 1 x DisplayPort
5. 1 x Thunderbolt™ 3 connector (USB Type-C™ port, with USB 3.1 Gen 2 support)
6. 1 x USB 3.1 Gen 2 Type-A port (red)
7. 5 x USB 3.1 Gen 1 ports
8. 2 x RJ-45 ports
9. 1 x optical S/PDIF Out connector
10. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone)

Микросхема
I/O-контроллера
1. iTE^® I/O Controller Chip

Контроль за состоянием системы
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

Микросхема BIOS
1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. Support for Q-Flash Plus
  * The USB flash drive used must be a USB 2.0 flash drive.
5. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Фирменные функции и технологии
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  3D OSD
  @BIOS
  AutoGreen
  BIOS Setup
  Color Temperature
  Cloud Station
  EasyTune
  Easy RAID
  Fast Boot
  Game Boost
  GIGABYTE HW OC APP
  ON/OFF Charge
  Platform Power Management
  RGB Fusion
  Smart Backup
  Smart Keyboard
  Smart TimeLock
  System Information Viewer
  USB Blocker
  USB DAC-UP 2
  V-Tuner
2. Support for 3TB+ Unlock
3. Support for Q-Flash
4. Support for Xpress Install

ПО в комплекте поставки
1. Norton^® Internet Security (OEM version)
2. Intel^® Optane™ Memory Ready

Операционная система
1. Windows^® 10 64-bit (for 7^th Generation Intel^® Processors)
2. Windows^® 10 64-bit / Windows^® 8.1 64-bit / Windows^® 7 32-bit / 64-bits (for 6^th Generation Intel^® Processors)
  * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

Форм-фактор
1. E-ATX Form Factor; 30.5cm x 26.4cm

Box Contents
1. GA-Z270X-Gaming 9 motherboard
2. Motherboard driver disk
3. User's Manual
4. Quick Installation Guide
5. Six SATA cables
6. I/O Shield
7. One Wi-Fi antenna
8. One Wi-Fi antenna retention cover
9. One GC-SLI23P SLI bridge connector
10. One 3-Way SLI bridge connector
11. One 4-Way SLI bridge connector
12. One 2-Way CrossFire bridge connector
13. Two RGB (RGBW) LED strip extension cables
14. One Accent Lighting LED Strip
15. Two thermistor cables
16. One G Connector
17. Two Velcro Cable Ties
18. One pack of back I/O dust covers

Примечания
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
