GS-R22PHLLegacy | Software updates supported

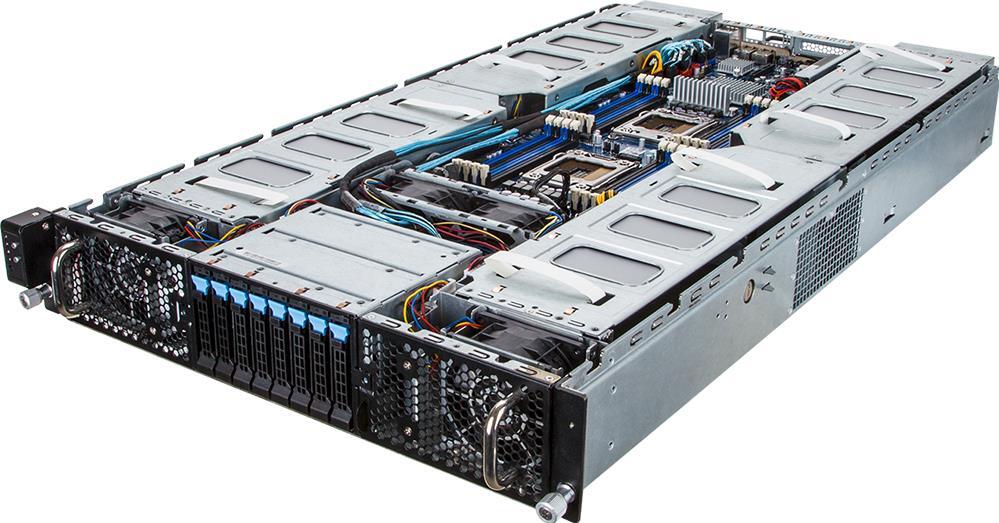

HPC Server - 8 x GPGPU Card Slots
  • Supports up to 8 x double slot GPU/MIC cards
  • Intel® Xeon® processor E5-2600 & 2600 V2 product families
  • 16 x RDIMM/UDIMM ECC DIMM slots
  • 2 x 10GbE BASE-T ports (Intel® X540)
  • 8 x 2.5" hot-swappable HDD/SSD bays
  • 80 PLUS Platinum 1600W redundant PSU
Save
This model has been saved to favorite!
  • Overview
  • Specifications
  • Support
  • Related Resources

Specifications

Dimensions (WxHxD, mm)
2U
482mm x 86mm x 871mm (DxHxW)
Motherboard
GA-7PPSP
CPU
Supports:
  • Intel® Xeon® E5-2600 V2 processors
  • Intel® Xeon® E5-1600 V2 processors (single CPU configuration only)
  • Intel® Xeon® E5-2600 processors
  • Intel® Xeon® E5-1600 processors (single CPU configuration only)
Socket
2 x LGA 2011
Mounting pitch: narrow ILM (56x94mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Chipset
Intel® C602
Memory
16 x DIMM slots
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz

*Supported by Intel® Xeon® E5-2600 V2 processors only

Download the detailed memory configuration table for the E5-1600/2600 V2 processors
Download the detailed memory configuration table for the E5-1600/2600 processors
LAN
2 x 10GbE BASE-T ports (Intel® X540)
1 x 10/100 management LAN
GC-MLBZ1 network card in option:
  • 2 x 10GbE SFP+ ports (Broadcom® BCM57810S)
  • PCIe 2.0 x8 connector
  • 145 x 68.9 mm
Video
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
8 x 2.5" hot-swappable HDD/SSD bays
SATA
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
4 x SATA II 3Gb/s ports (can be upgraded via Intel® upgrade key)
SAS
GC-MSLZ1 expansion card in option:
  • 2 x Mini-SAS (for 8 x SAS 6Gb/s ports)
  • LSI® SAS2208 controller
  • Hardware RAID 0/1/5/6/10/50/60
  • Hardware RAID 5/6 XOR Engine (single pass)
  • Low profile PCIe 2.0 x8 mezzanine connector
  • 76.8 x 98 mm
RAID
Intel® SATA RAID 0/1/5/10
Peripheral Drives
-
Expansion Slots
8 x PCIe x16 (Gen3 x16 bus) slots supporting:
  • 8 x Intel® Xeon Phi 7120P cards
  • 8 x Intel® Xeon Phi 5110P cards
  • 8 x Nvidia® Tesla K40 cards
  • 8 x Nvidia® Tesla K20 cards
  • 8 x Nvidia® Tesla K10 cards
  • 8 x AMD® FirePro S9150 cards
1 x Half-length low-profile slot
1 x PCIe x16 (Gen3 x8 bus) connector
1 x Proprietary PCIe x8 (Gen3 x4 bus) mezzanine connector
Internal I/O
1 x Front VGA header
1 x Front serial port header
1 x IPMB connector
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
4 x SATA/SAS 3Gb/s ports
1 x SATA SGPIO header
1 x SAS SGPIO header
1 x USB 2.0 header
1 x BIOS write protect jumper
1 x ME recovery jumper
1 x 18-pin SSI main power connector
2 x 14-pin ATX power connectors
1 x Front panel header (primary)
1 x Front panel header (secondary)
1 x HDD/SSD back plane board header
1 x PMBus Power Select jumper
1 x CMOS battery
1 x Clear CMOS jumper
1 x BMC firmware readiness LED
1 x Patsburg upgrade ROM header
1 x TPM header
1 x Force to Stop FRB Timer jumper
1 x S3 Power On Select jumper
1 x Chassis intrusion header
1 x BIOS recovery jumper
1 x Clearing Supervisor Password jumper
Front I/O
1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
1 x Reset button
Rear I/O
2 x USB 2.0
1 x VGA
1 x Serial
3 x RJ45
1 x Power button
1 x Reset button
1 x ID button
1 x NMI button
1 x System status LED
Backplane Board
N/A
TPM
1 x TPM header
Power Supply[#1]
2 x 1600W redundant PSU
80 PLUS Platinum

AC input:
- 100-127V/ 12.9A, 47-63Hz
- 200-240V/9.5A, 47-63Hz

DC output:
- 1000W@100-127V
- 1600W@200-240V
System Management
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:
  • Network settings
  • Network security settings
  • Users control
  • Services settings
  • IPMI settings
  • Sessions control
  • LDAP settings
  • Power control
  • Voltages, fans and temperatures monitoring
  • System event log
  • Events management (platform events, trap settings, email settings)
  • Serial Over LAN
  • vKVM & vMedia (launch, configuration)
OS Compatibility
Red Hat Enterprise Linux 6.2 (x86/x64)

SUSE Linux Enterprise Server 11.2 (x86/x64)
System Fans
8 x 80x80x38mm (15000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
ŠNon-operating temperature: -40°C to 60°C
10-80% operating humidity (non-condensing)
Weight
N/A
Part Numbers
Barebone without rail kit: 6NR22PHLMS-00
Barebone with rail kit: 6NR22PHLMS-SI
Rail kit: 25HB2-A86100-K0R

[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.
