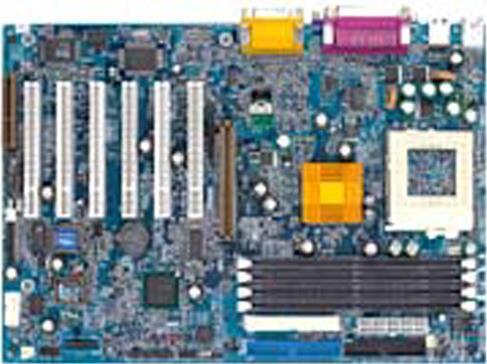

GA-6OXM7E (Rev. 1.x / 2.x)

SpecificatiesSupportNieuws&Awards

Specificaties

  • CPU
    1. Socket 370 for Intel® FC-PGA Pentium®III or other compatible processors
    2. AUTO detect CPU voltage
    3. Supports Auto/66/100/133 MHz FSB & other clocks by Gigabyte EasyTune III Utility
  • Chipset
    1. Intel® 815E AGPset
    2. iTE IT8712F-A I/O & health chip
    3. Creative CT5880 PCI sound chip; AC97
  • Memory
    1. 32MB to 512MB memory size
    2. 4 x DIMM sockets
    3. Supports 32/64/128/256/512 MB SDRAM module
  • Expansion Slots
    1. 1 x AGP slot supports 2X/4X mode AGP card or supports AIMM
    2. 1 x CNR (Communication Networking Riser) slot
    3. 6 x PCI slots support 33MHz & PCI 2.2 compliant
  • I/O Controller
    1. 2 x Ultra DMA 33/66/100 IDE ports on board
    2. 1 x FDD, 2 x COM (1 by optional cable), 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x VGA(DB15), 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. Provides one SPDIF connector (Optional)
    5. 2 x USB ports on board and another 2 front USB ports by cable (optional accessary)
    6. Provides header for Smart Card Reader
    7. IrDA header ready
    8. Front panel audio header ready
    9. 20 pin IA port header (Optional)
  • H/W Monitoring
    1. Auto speed down and alarm when CPU overheat or fan failure (OS independent & driverless)
    2. 3 fanpower & speed detection connectors; Case open detection
    3. System health status detect & report by BIOS, LDCM®
    4. H/W detect ±5V, ±12V, CPU voltage & CMOS battery status
  • BIOS
    1. Supports DualBIOS™ technology; 4Mbit flash RAM
    2. BIOS with enhanced ACPI feature for PC99/Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. Auto-detect & report system health status
  • Form Factor
    1. ATX , 4 layer PCB (30.5*21.5cm)
  • Driver
    1. Gigabyte Windows Utility Manager
    2. Gigabyte EasyTune III overclock Utility
    3. Intel® LDCM® utility
    4. Intel® 815 patch utility for Windows 95/98
    5. Creative PCI sound driver
  • Other Features
    1. Suspend-To-RAM (STR)
    2. Includes Wake-On-LAN header (WOL); Includes Wake-On-Ring (WOR)
    3. Poly fuse for keyboard, USB & game overcurrent protection
  • Power
    1. ATX power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/2000 shut down & Switch
    4. Supports USB device wake-up
    5. Suspend / Wake-on by ACPI & APM device
    6. AC recovery ON/OFF control; 3 level ACPI LED support
  • CPU
    1. Socket 370 for Intel® FC-PGA Pentium®III or other compatible processors
    2. AUTO detect CPU voltage
    3. Supports Auto/66/100/133 MHz FSB & other clocks by Gigabyte EasyTune III Utility
  • Chipset
    1. Intel® 815E AGPset
    2. iTE IT8712F-A I/O & health chip
    3. Creative CT5880 PCI sound chip; AC97
  • Memory
    1. 32MB to 512MB memory size
    2. 4 x DIMM sockets
    3. Supports 32/64/128/256/512 MB SDRAM module
  • Expansion Slots
    1. 1 x AGP slot supports 2X/4X mode AGP card or supports AIMM
    2. 1 x CNR (Communication Networking Riser) slot
    3. 6 x PCI slots support 33MHz & PCI 2.2 compliant
  • I/O Controller
    1. 2 x Ultra DMA 33/66/100 IDE ports on board
    2. 1 x FDD, 2 x COM (1 by optional cable), 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x VGA(DB15), 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. Provides one SPDIF connector (Optional)
    5. 2 x USB ports on board and another 2 front USB ports by cable (optional accessary)
    6. Provides header for Smart Card Reader
    7. IrDA header ready
    8. Front panel audio header ready
    9. 20 pin IA port header (Optional)
  • H/W Monitoring
    1. Auto speed down and alarm when CPU overheat or fan failure (OS independent & driverless)
    2. 3 fanpower & speed detection connectors; Case open detection
    3. System health status detect & report by BIOS, LDCM®
    4. H/W detect ±5V, ±12V, CPU voltage & CMOS battery status
  • BIOS
    1. Supports DualBIOS™ technology; 4Mbit flash RAM
    2. BIOS with enhanced ACPI feature for PC99/Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. Auto-detect & report system health status
  • Form Factor
    1. ATX , 4 layer PCB (30.5*21.5cm)
  • Driver
    1. Gigabyte Windows Utility Manager
    2. Gigabyte EasyTune III overclock Utility
    3. Intel® LDCM® utility
    4. Intel® 815 patch utility for Windows 95/98
    5. Creative PCI sound driver
  • Other Features
    1. Suspend-To-RAM (STR)
    2. Includes Wake-On-LAN header (WOL); Includes Wake-On-Ring (WOR)
    3. Poly fuse for keyboard, USB & game overcurrent protection
  • Power
    1. ATX power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/2000 shut down & Switch
    4. Supports USB device wake-up
    5. Suspend / Wake-on by ACPI & APM device
    6. AC recovery ON/OFF control; 3 level ACPI LED support

* De termen HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress en de HDMI logo's zijn handelsmerken of gedeponeerde handelsmerken van HDMI Licensing Administrator, Inc.
* Alle materialen zijn alleen voor uw referenctie. GIGABYTE behoudt zich het recht om zonder aankondiging de inhoud te wijzigen of te herzien.
* Alle handelsmerken en logo's zijn eigendom van hun respectieve houders.
* Door de standaard PC-architectuur, wordt een bepaalde hoeveelheid geheugen gereserveerd voor gebruik van het systeem en dus is de werkelijke geheugengrootte kleiner dan de aangegeven hoeveelheid.
