H310M A Ultra Durable motherboard with Intel GbE LAN with cFosSpeed, PCIe Gen2 x4 M.2, 7 colors RGB LED strips support, Anti-Sulfur Resistor, Smart Fan 5, CEC 2019 ready

  • Supports 9th and 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • Ultra-Fast M.2 with PCIe Gen2 X4 & SATA interface
  • Supports RGB LED strips in 7 colors
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • CEC 2019 Ready, Save Power With a Simple Click
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • All new GIGABYTE™ APP Center, simple and easy use
  • Anti-Sulfur Resistors Design
SPEC OVERVIEW
CONNECTIVITY
COOLING
PERFORMANCE
AUDIO
LIGHTING
ULTRA DURABLE
GIGABYTE EXCELLENCE
SPEC OVERVIEW
CONNECTIVITY
COOLING
PERFORMANCE
AUDIO
LIGHTING
ULTRA DURABLE
GIGABYTE EXCELLENCE

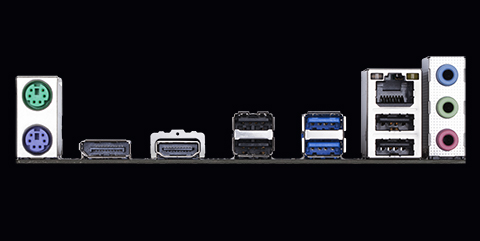

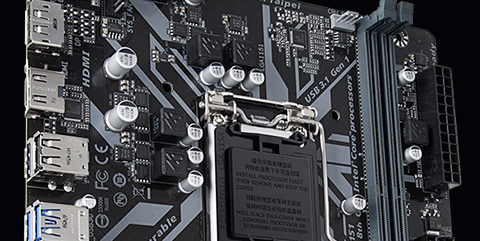

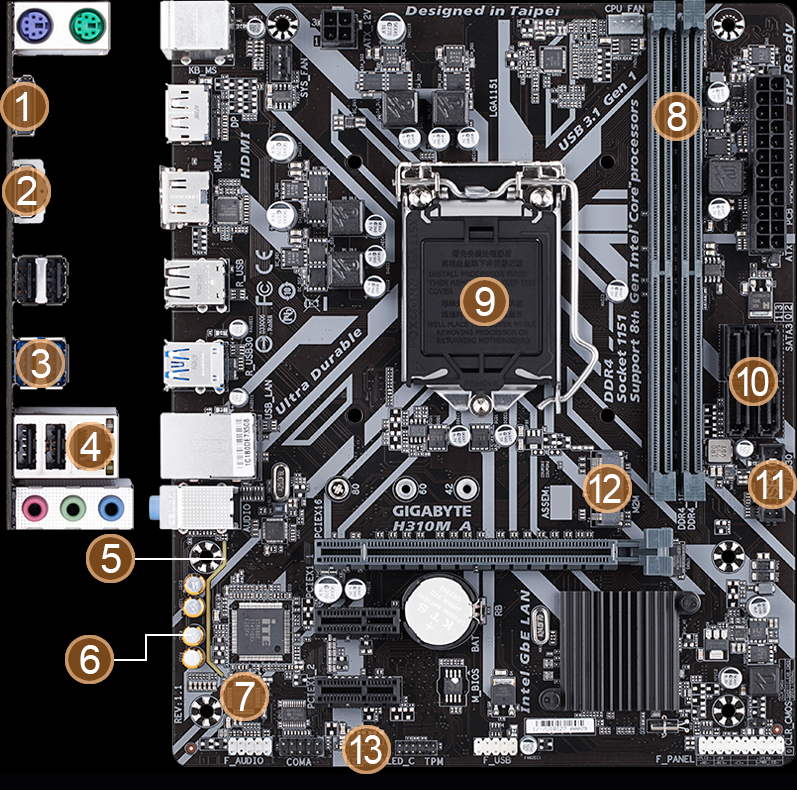

1
DisplayPort
2
HDMI
3
USB 3.1 Gen1 Type-A
4
Intel GbE LAN
5
Audio Noise Guard
6
Audio Capacitors
7
High Quality Onboard Audio Design
8
Dual Channel DDR4, 2 DIMMs
9
Supports 9th and 8th Gen Intel® Core™ Processor
10
SATA 6Gb/s
11
USB3.1 Gen1 Header
12
M.2 Connector
13
RGB LED Pin Header
CONNECTIVITY

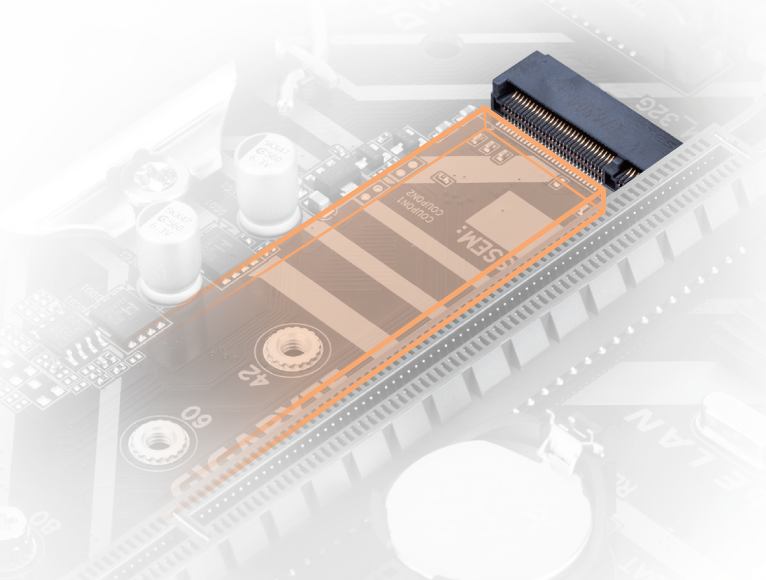

NVMe PCIe Gen2 x4 2280 M.2 Connector

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

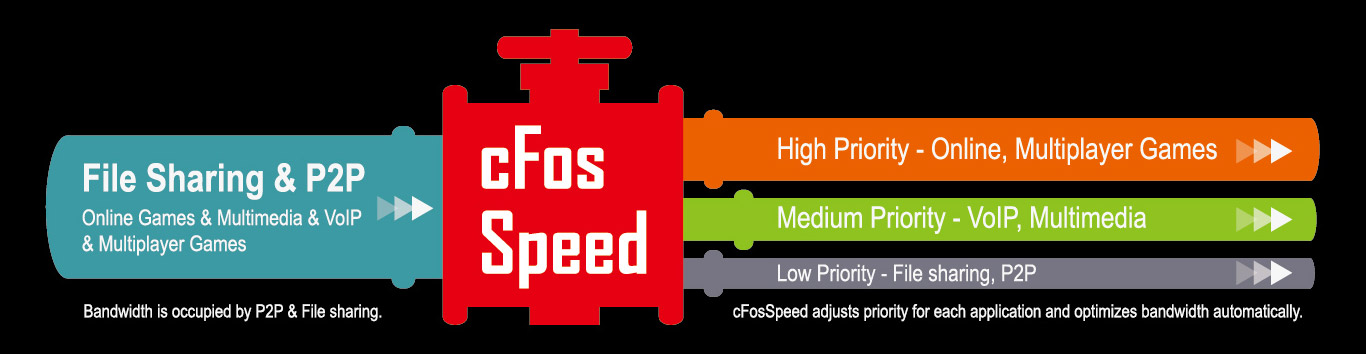

Intel® GbE LAN with cFosSpeed Internet Accelerator Software

Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.



COOLING
Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Fan / Water Pump Connectors
Internal Temperature Sensors
Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.
Temperature Sensors
Hybrid Fan Headers
■ 4 Temperature Sensors
■ 2 Fan Pin Headers
■ All Fan Pin Headers Upgraded to Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Intuitive UI for Fan Control
FAN STOP
Hybrid FAN Header
Smart Fan 5 Software

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

Intelligent Fan Control Design

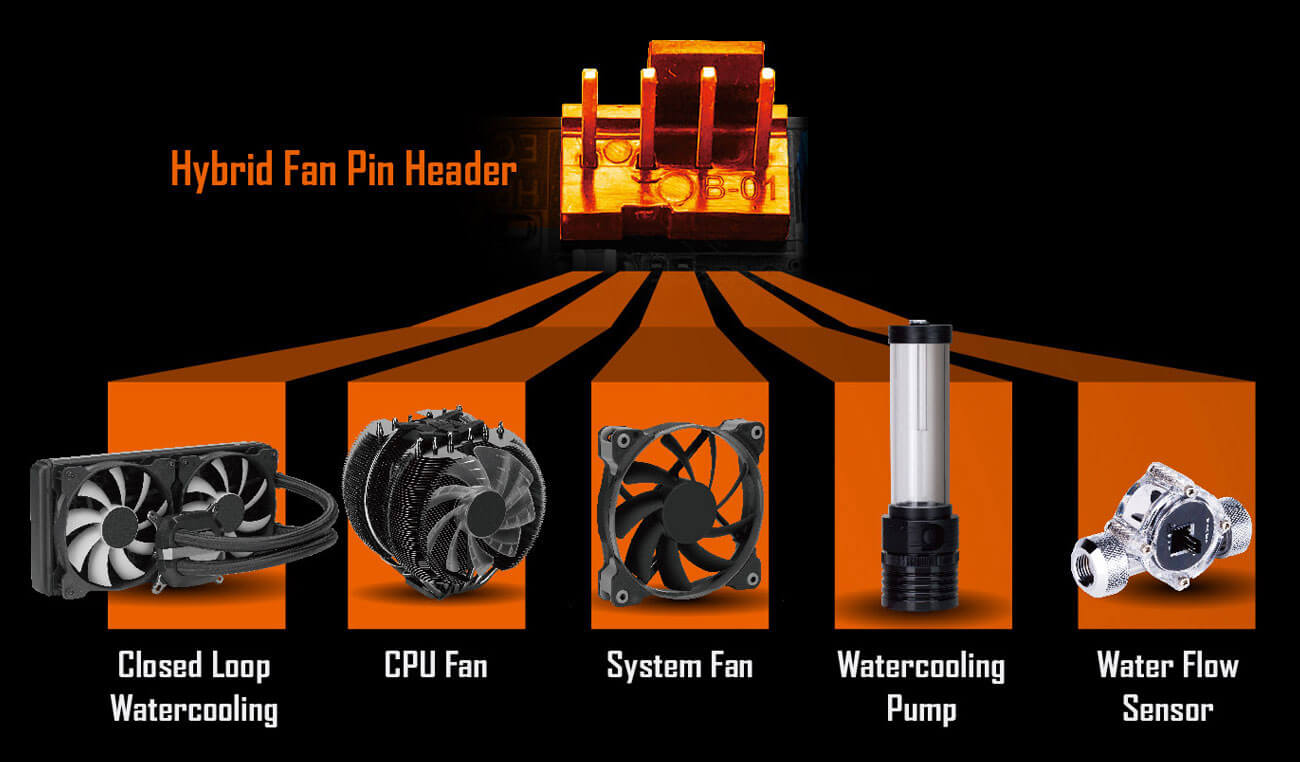

Hybrid Fan Pin Headers

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC.
• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

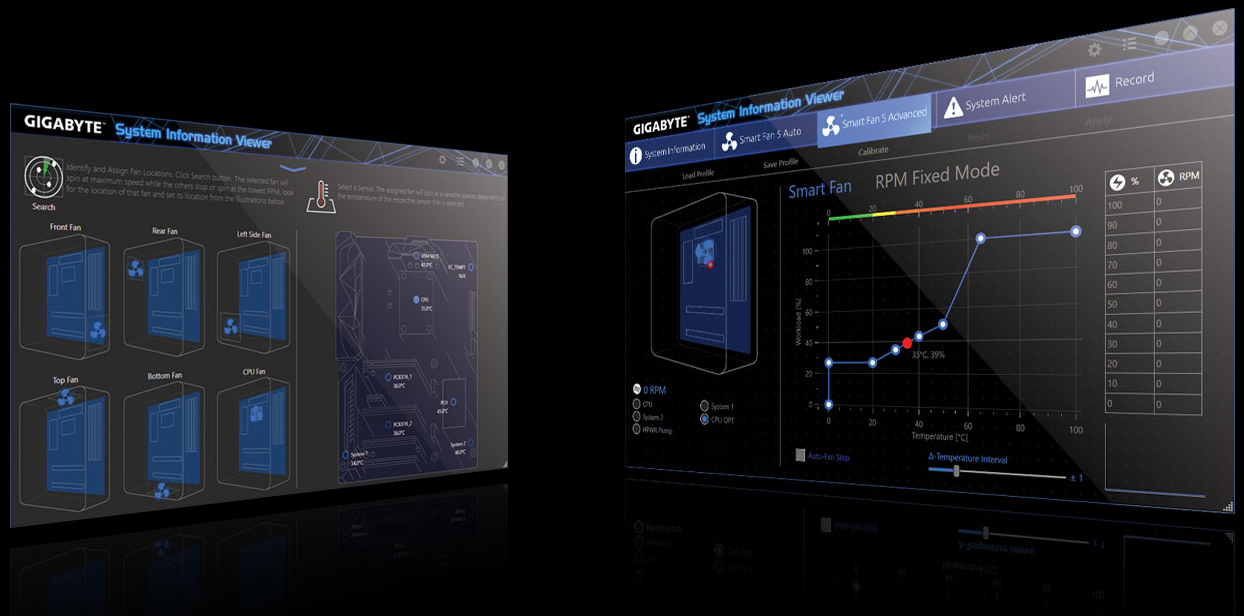

New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage preferences.
For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.
PERFORMANCE
Immersive VR
Gaming Experience

> VR requires more performance than Full HD graphics for a steady 90FPS or greater.
> Only Gaming PCs can provide the best VR experience.

Recommended configuration for VR Gaming PC*
■ Graphics Card: NVIDIA GTX 1060 / AMD RX 480 or greater, Compatible HDMI 1.4 video output.
■ CPU: Intel i5 equivalent or greater
■ Motherboard: GIGABYTE H370 / B360 / H310 series motherboards
■ Memory: 8GB RAM or greater
■ USB Ports: 3x USB 3.0 ports plus 1x USB 2.0 port or greater
■ OS: Windows 10 64-bit or newer
*Please check VR vendor website for full system requirements.
To create a seamless VR experience GIGABYTE Motherboards offer the best features to make your virtual reality feel like your actual reality. With technologies such as NVMe support via M.2 or U.2 it's obvious that GIGABYTE has the tools you need to start your journey in VR.

Any copyrighted images or trademarks displayed are the property of their respective owners and are shown for reference purposes only. Reference herein does not constitute or imply affiliation or endorsement of Gigabyte products by the respective trademark owners. VR Gaming photo for reference only.

AUDIO

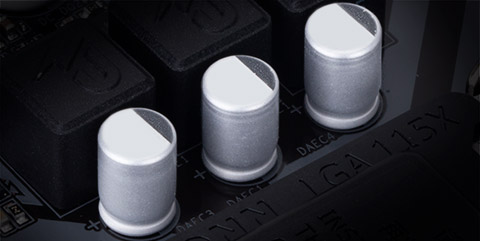

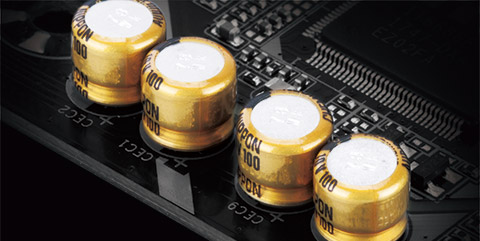

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

LIGHTING

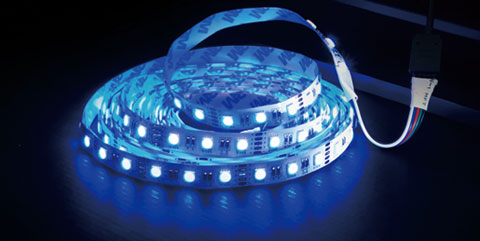

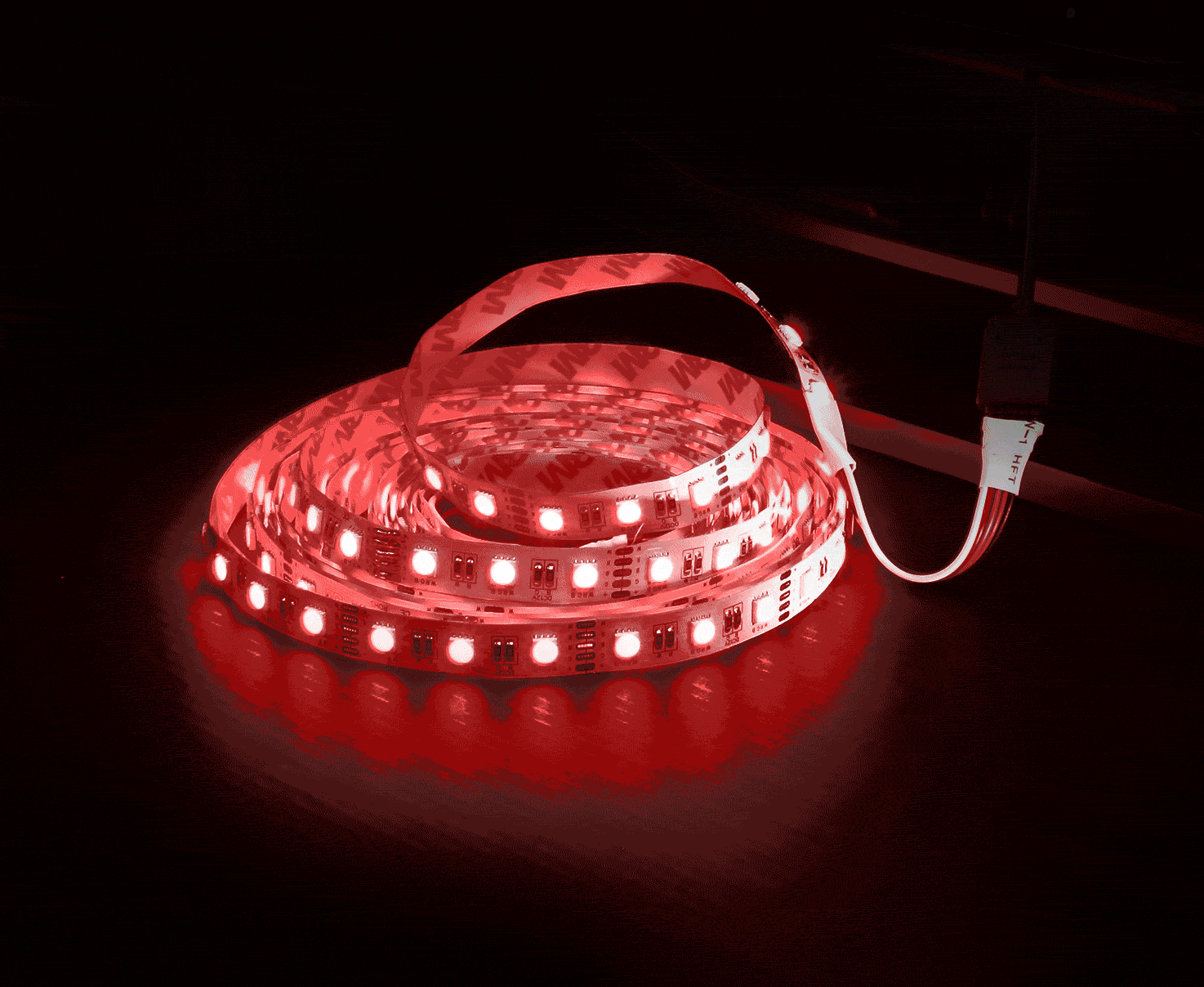

Supports RGB Light Strips in 7 Colors

Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip. A total of 7 colors are available to make your system appearance unique!

* LED strips not included.
* Lighting effects may vary by model.
ULTRA DURABLE

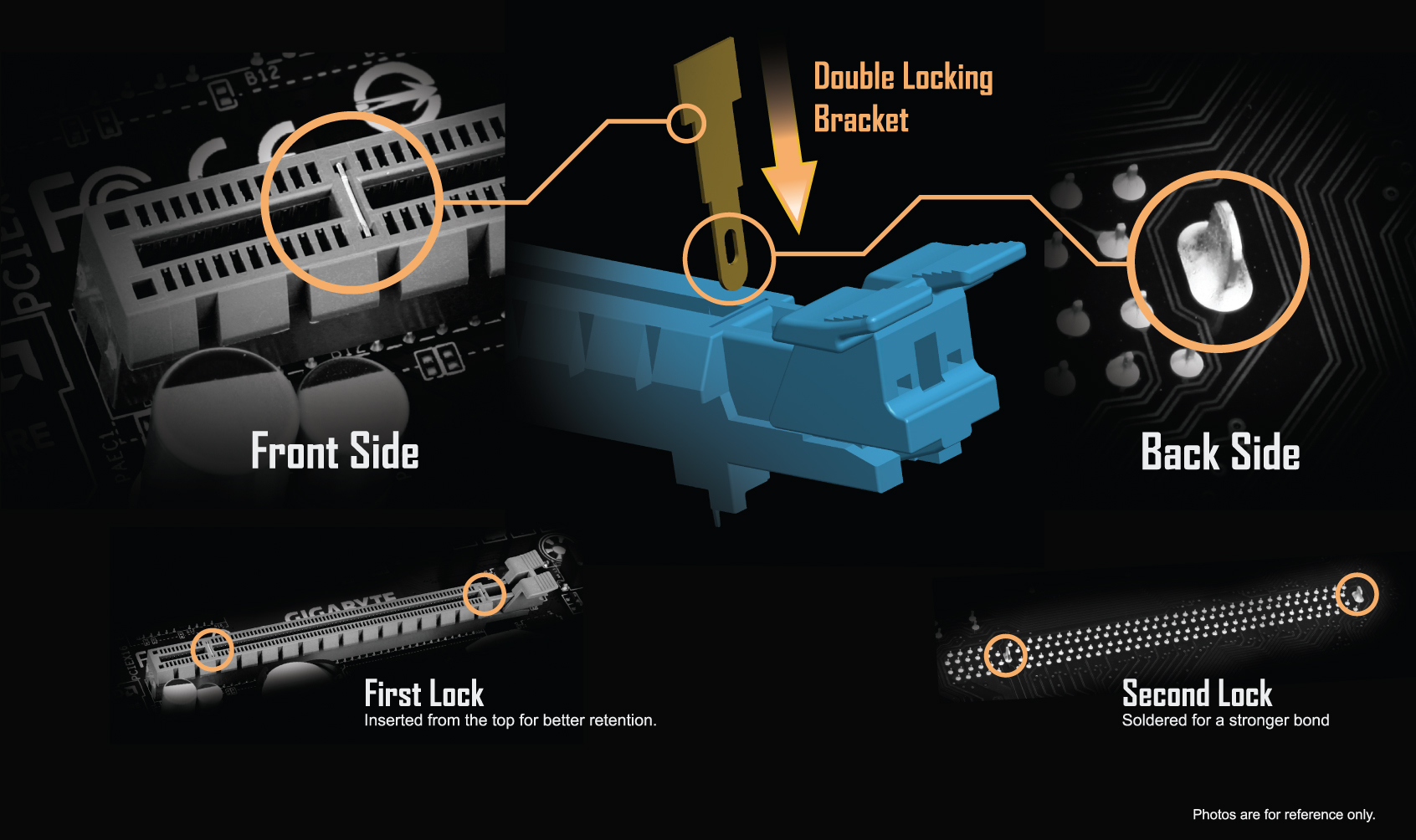

GIGABYTE Patented Double Locking Bracket

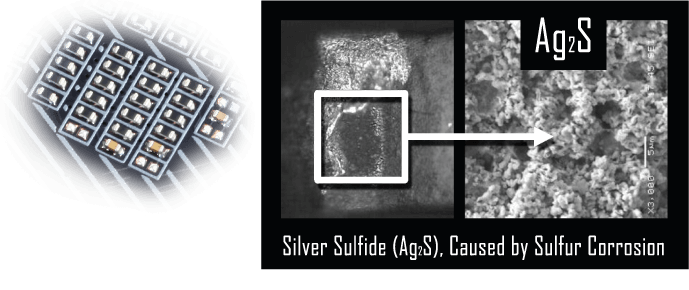

START SULFURIZATION PROTECTION

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

The Industry's Leading Surge Protection

GIGABYTE motherboards also feature special anti-surge IC that protect your motherboard, helping to ensure that your PC is equipped to deal with any potentially irregular electrical spikes.

Humidity Protection Glass Fabric PCB

There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.

High Temperature Protection Lower RDS(on) MOSFETs Design

GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.

GIGABYTE EXCELLENCE

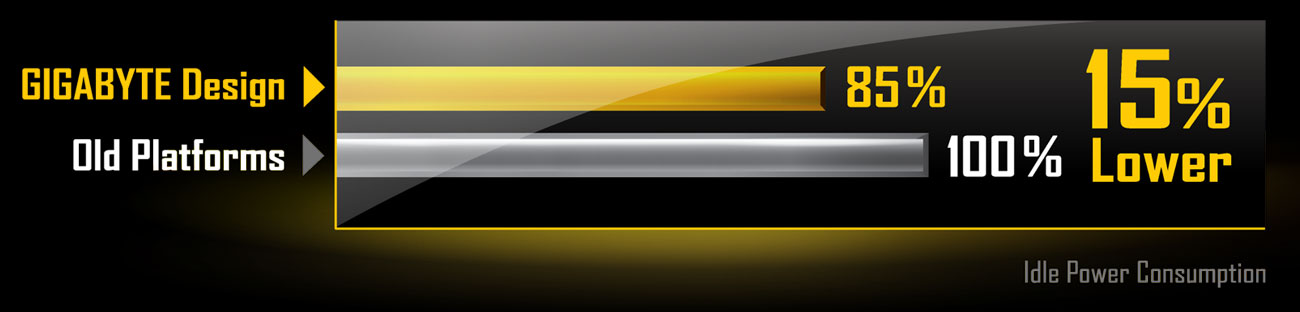

CEC 2019 Ready

Save power with a simple click
CEC Requirement : PC power consumption must be under a certain level when it's in off mode, idle mode, stand-by mode. With high power efficiency hardware components and fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.
GIGABYTE BIOS & Applications
Refreshed BIOS
APP CENTER
3D OSD
System Information Viewer
Refreshed BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

* Photos are for reference only. Product features may vary by model.


APP CENTER
GIGABYTE APP CENTER is an useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with latest utilities and drivers version.

3D OSD

3D OSD automatically detects and displays your system information during games, allowing you to easily get a hold of your system information without switching between screens.

System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

4K Ultra HD Support

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.

HDMI™ - The Next Generation Multimedia Interface

HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
