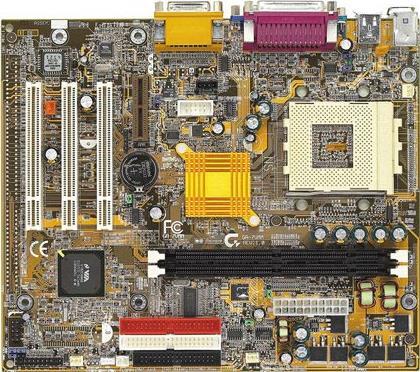

GA-7VMM (Rev. 1.0)

EspecificaciónSoporte y DescargasNoticias / PremiosWhere to Buy

Especificación

  • Procesador
    1. Socket A for AMD Athlon™ /Duron™ 200/266MHz FSB processors
    2. Supports 600MHz ~ 1.2GHz and faster
    3. Auto-detects CPU voltage
  • Chipset
    1. VIA 8361 (KLE133) North Bridge
    2. VIA 686B South Bridge
    3. AC97 codec
  • Memoria
    1. 2 x 168 pin DIMM sockets
    2. Supports PC-100 / PC-133 SDRAM
    3. Supports up to 2GB DRAM
    4. Supports only 3.3V SDRAM DIMM
  • Puertos de Expansión
    1. 1 x AMR(Audio Modem Riser) slot
    2. 3 x PCI slots support 33Mhz & PCI 2.2 compliant
  • Controlador de E/S
    1. 2 x USB,1 x COM, 1 x LPT, PS/2 keyboard, PS/2 mouse & 1 x VGA out on rear side
    2. 2 x ATA 66/100 bus master IDE ports on board
    3. 1 x FDD, 2xHDD and 1xCD Audio Input on board
    4. IrDA(1x5) and COM2 on board
    5. GBT standard front panel and 2 x front USB port on board
  • Monitorización H/W
    1. System voltage detect (Vcore, VDD, Vcc,+12V)
    2. H/W detect & report power-in voltage, CPU voltage and CMOS battery status
    3. CPU/System fan revolution & temperature detect
  • BIOS
  • Diseño
    1. Micro ATX and 4 layers PCB (24.4 x 20.5 cm)
  • Controlador
    1. Gigabyte Windows Utility Manager
    2. VIA 4 in 1 service pack utility
  • Otras Características
    1. 2Mbit flash ROM
    2. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    3. Auto-detect & report system health status
    4. AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) &Anti-Virus functions
    5. Supports @BIOS™ Live Update
  • Energía
    1. ATX 20-pin power connector
    2. Includes CPU, power, system fan control
    3. ACPI states supported
    4. Wake up from S1 and power on from S5
  • Procesador
    1. Socket A for AMD Athlon™ /Duron™ 200/266MHz FSB processors
    2. Supports 600MHz ~ 1.2GHz and faster
    3. Auto-detects CPU voltage
  • Chipset
    1. VIA 8361 (KLE133) North Bridge
    2. VIA 686B South Bridge
    3. AC97 codec
  • Memoria
    1. 2 x 168 pin DIMM sockets
    2. Supports PC-100 / PC-133 SDRAM
    3. Supports up to 2GB DRAM
    4. Supports only 3.3V SDRAM DIMM
  • Puertos de Expansión
    1. 1 x AMR(Audio Modem Riser) slot
    2. 3 x PCI slots support 33Mhz & PCI 2.2 compliant
  • Controlador de E/S
    1. 2 x USB,1 x COM, 1 x LPT, PS/2 keyboard, PS/2 mouse & 1 x VGA out on rear side
    2. 2 x ATA 66/100 bus master IDE ports on board
    3. 1 x FDD, 2xHDD and 1xCD Audio Input on board
    4. IrDA(1x5) and COM2 on board
    5. GBT standard front panel and 2 x front USB port on board
  • Monitorización H/W
    1. System voltage detect (Vcore, VDD, Vcc,+12V)
    2. H/W detect & report power-in voltage, CPU voltage and CMOS battery status
    3. CPU/System fan revolution & temperature detect
  • BIOS
  • Diseño
    1. Micro ATX and 4 layers PCB (24.4 x 20.5 cm)
  • Controlador
    1. Gigabyte Windows Utility Manager
    2. VIA 4 in 1 service pack utility
  • Otras Características
    1. 2Mbit flash ROM
    2. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    3. Auto-detect & report system health status
    4. AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) &Anti-Virus functions
    5. Supports @BIOS™ Live Update
  • Energía
    1. ATX 20-pin power connector
    2. Includes CPU, power, system fan control
    3. ACPI states supported
    4. Wake up from S1 and power on from S5

* Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
