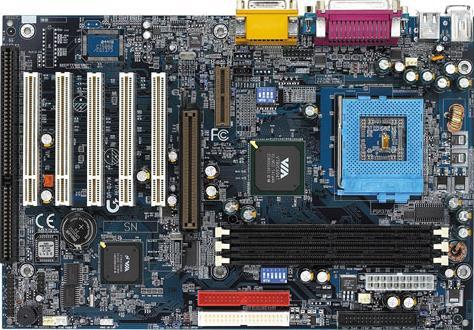

GA-6VTX (Rev. 1.2)

SpecificatiesSupportNieuws&AwardsWhere to Buy

Specificaties

  • CPU
    1. Universal socket 370 supports Intel® FC-PGA/FC-PGA2 Pentium® III (CopperMine/Tualatin)or other compatible processors
    2. Auto/66/100/133/137*/142* MHz FSB
    3. AUTO detect CPU voltage
  • Chipset
    1. VIA 694T AGPset
    2. Realtek ALC201A audio chip
  • Memory
    1. 3 x 168-pin DIMM sockets
    2. Supports PC-100 / PC-133 SDRAM and VCM SDRAM
    3. Supports up to 1.5GB DRAM
    4. Supports 72bit ECC type DRAM integrity mode
  • Expansion Slots
    1. 1 x AMR (Audio Modem Riser) slot
    2. 1 x AGP slot supports 4X mode & AGP 2.0 compliant
    3. 5 x PCI slots support 33MHz & PCI 2.2 compliant
    4. 1 x ISA slot
  • I/O Controller
    1. 2 x UDMA ATA 100/66 Bus Master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 2 x USB ports on board
    5. 2 x USB ports by cable (optional accessory)
    6. IrDA header ready
  • H/W Monitoring
    1. CPU/System fan revolution detect
    2. CPU /System temperature detect
    3. System voltage detect (Vcore,Vcc3,Vcc,+12V)
    4. CPU overheat shutdown detect
  • BIOS
    1. 2Mbit flash RAM
    2. AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000/WinME compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. Supports @BIOS™ Live Update
  • Form Factor
    1. ATX , 4 layer PCB (30.5 x 20.3 cm)
  • Driver
    1. Gigabyte Windows Utility Manager
    2. VIA 4 in 1 service pack utility
  • Other Features
    1. Suspend-To-RAM (STR)
    2. Includes Wake-On-LAN header (WOL)
    3. Includes Wake-On-Ring (WOR)
    4. Includes 3 fan power connectors
    5. Supports Gigabyte EasyTune III™
    6. Poly fuse for keyboard over-current protection
  • Power
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/2000/ME shut down & switch
    4. Supports USB device wake-up
  • CPU
    1. Universal socket 370 supports Intel® FC-PGA/FC-PGA2 Pentium® III (CopperMine/Tualatin)or other compatible processors
    2. Auto/66/100/133/137*/142* MHz FSB
    3. AUTO detect CPU voltage
  • Chipset
    1. VIA 694T AGPset
    2. Realtek ALC201A audio chip
  • Memory
    1. 3 x 168-pin DIMM sockets
    2. Supports PC-100 / PC-133 SDRAM and VCM SDRAM
    3. Supports up to 1.5GB DRAM
    4. Supports 72bit ECC type DRAM integrity mode
  • Expansion Slots
    1. 1 x AMR (Audio Modem Riser) slot
    2. 1 x AGP slot supports 4X mode & AGP 2.0 compliant
    3. 5 x PCI slots support 33MHz & PCI 2.2 compliant
    4. 1 x ISA slot
  • I/O Controller
    1. 2 x UDMA ATA 100/66 Bus Master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 2 x USB ports on board
    5. 2 x USB ports by cable (optional accessory)
    6. IrDA header ready
  • H/W Monitoring
    1. CPU/System fan revolution detect
    2. CPU /System temperature detect
    3. System voltage detect (Vcore,Vcc3,Vcc,+12V)
    4. CPU overheat shutdown detect
  • BIOS
    1. 2Mbit flash RAM
    2. AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000/WinME compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. Supports @BIOS™ Live Update
  • Form Factor
    1. ATX , 4 layer PCB (30.5 x 20.3 cm)
  • Driver
    1. Gigabyte Windows Utility Manager
    2. VIA 4 in 1 service pack utility
  • Other Features
    1. Suspend-To-RAM (STR)
    2. Includes Wake-On-LAN header (WOL)
    3. Includes Wake-On-Ring (WOR)
    4. Includes 3 fan power connectors
    5. Supports Gigabyte EasyTune III™
    6. Poly fuse for keyboard over-current protection
  • Power
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/2000/ME shut down & switch
    4. Supports USB device wake-up

* De termen HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress en de HDMI logo's zijn handelsmerken of gedeponeerde handelsmerken van HDMI Licensing Administrator, Inc.
* Alle materialen zijn alleen voor uw referenctie. GIGABYTE behoudt zich het recht om zonder aankondiging de inhoud te wijzigen of te herzien.
* Alle handelsmerken en logo's zijn eigendom van hun respectieve houders.
* Door de standaard PC-architectuur, wordt een bepaalde hoeveelheid geheugen gereserveerd voor gebruik van het systeem en dus is de werkelijke geheugengrootte kleiner dan de aangegeven hoeveelheid.
