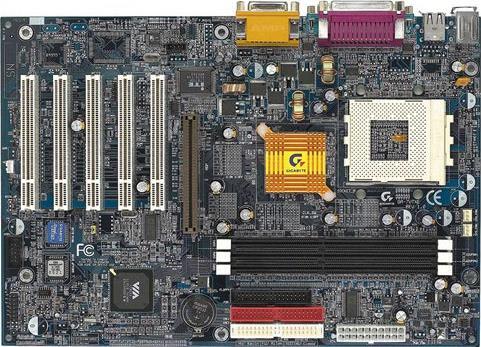

GA-7VTXE (Rev. 1.0)

SpecificatiesSupportNieuws&AwardsWhere to Buy

Specificaties

  • CPU
    1. Socket A for AMD Athlon™/Athlon™XP/Duron™ 200/266 MHz FSB processors
    2. Supports 500MHz ~ 1.5GHz CPU and faster
    3. FSB adjustable by BIOS up to 161MHz(no guarantee)
    4. CPU voltage overclockable by adding 5%, 10% CPU voltage
  • Chipset
    1. VIA KT266A(VT8366A) System controller north bridge
    2. VIA VT8233 V-Link south bridge
    3. RealTek ALC201A audio codec
  • Memory
    1. Supports PC1600/DDR200 or PC2100/DDR266 DDR memory
    2. Supports up to 3GB DDR memory
    3. 3DIMMs of 184-pin DDR sockets
  • Expansion Slots
    1. 1 x AGP 4X slot
    2. 5 x PCI slots support 33MHz & PCI 2.2 compliant
  • I/O Controller
    1. 2 x UDMA ATA 66/100 bus master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x joystick, 1 x line-in, 1 x line-out and 1 x MIC on board
    4. 2 x USB ports on board, 2 x USB ports by cable
    5. 1 x IrDA connector
  • H/W Monitoring
    1. 2 cooling fan connectors
    2. System health status detect and report by BIOS
    3. H/W detect and report power-in voltage, CPU voltage and CMOS battery status
  • BIOS
    1. Dual BIOS, 2 x 2Mbit flash ROM, enhanced ACPI feature for PC98/Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    2. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    3. AC recovery ON/OFF control
    4. Auto-detect and report system health status
    5. Supports @BIOS™
  • Form Factor
    1. ATX form factor, 4 layers PCB (21 x 30.40 cm)
  • Driver
    1. VIA 4 in 1 service pack utility
    2. Hardware monitor utility
  • Other Features
    1. Suspend-To-RAM (STR)
    2. Supports USB KB/MS Wake up from S3
    3. Poly fuse for keyboard over-current protection
    4. Supports EasyTune III™
  • Power
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem and Switch
    3. Power-off by Windows 95/98/Me/2000/NT/XP shut down and Switch
  • CPU
    1. Socket A for AMD Athlon™/Athlon™XP/Duron™ 200/266 MHz FSB processors
    2. Supports 500MHz ~ 1.5GHz CPU and faster
    3. FSB adjustable by BIOS up to 161MHz(no guarantee)
    4. CPU voltage overclockable by adding 5%, 10% CPU voltage
  • Chipset
    1. VIA KT266A(VT8366A) System controller north bridge
    2. VIA VT8233 V-Link south bridge
    3. RealTek ALC201A audio codec
  • Memory
    1. Supports PC1600/DDR200 or PC2100/DDR266 DDR memory
    2. Supports up to 3GB DDR memory
    3. 3DIMMs of 184-pin DDR sockets
  • Expansion Slots
    1. 1 x AGP 4X slot
    2. 5 x PCI slots support 33MHz & PCI 2.2 compliant
  • I/O Controller
    1. 2 x UDMA ATA 66/100 bus master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x joystick, 1 x line-in, 1 x line-out and 1 x MIC on board
    4. 2 x USB ports on board, 2 x USB ports by cable
    5. 1 x IrDA connector
  • H/W Monitoring
    1. 2 cooling fan connectors
    2. System health status detect and report by BIOS
    3. H/W detect and report power-in voltage, CPU voltage and CMOS battery status
  • BIOS
    1. Dual BIOS, 2 x 2Mbit flash ROM, enhanced ACPI feature for PC98/Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    2. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    3. AC recovery ON/OFF control
    4. Auto-detect and report system health status
    5. Supports @BIOS™
  • Form Factor
    1. ATX form factor, 4 layers PCB (21 x 30.40 cm)
  • Driver
    1. VIA 4 in 1 service pack utility
    2. Hardware monitor utility
  • Other Features
    1. Suspend-To-RAM (STR)
    2. Supports USB KB/MS Wake up from S3
    3. Poly fuse for keyboard over-current protection
    4. Supports EasyTune III™
  • Power
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem and Switch
    3. Power-off by Windows 95/98/Me/2000/NT/XP shut down and Switch

* De termen HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress en de HDMI logo's zijn handelsmerken of gedeponeerde handelsmerken van HDMI Licensing Administrator, Inc.
* Alle materialen zijn alleen voor uw referenctie. GIGABYTE behoudt zich het recht om zonder aankondiging de inhoud te wijzigen of te herzien.
* Alle handelsmerken en logo's zijn eigendom van hun respectieve houders.
* Door de standaard PC-architectuur, wordt een bepaalde hoeveelheid geheugen gereserveerd voor gebruik van het systeem en dus is de werkelijke geheugengrootte kleiner dan de aangegeven hoeveelheid.
