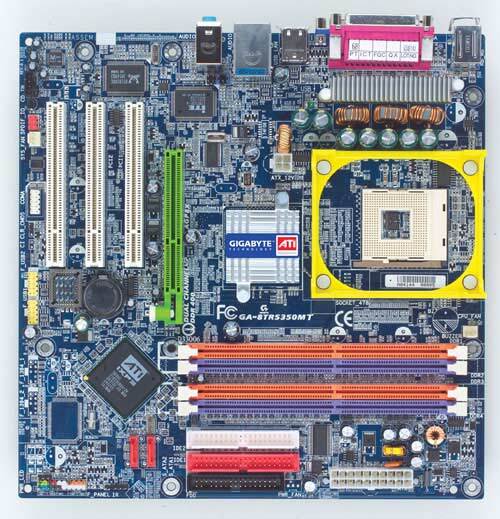

GA-8TRS350MT (rev. 1.0)
- Supports 800MHz FSB Intel®Pentium®4 Processor with HT Technology
- New generation Dual Channel DDR400 architecture support
- Integrated ATi Radeon 9100 Pro IGP based on Radeon 9200 GFX
- Integrated TV-out function
- Integrated Serial-ATA interface with RAID 0,1 function
- Supports AGP 8x interface for outstanding graphics performance
- Supports triple view with additional ATi graphic card
- Integrated 10/100 Network Connection
- Provides 8 USB 2.0 ports for high-speed connectivity
IntroductionThe GA-8TRS350MT is the best value-oriented P4 platform with its excellent performance and impressive features. Powered by the latest ATI 9100 Pro IGP chipsets along with Gigabyte's unique technologies, the GA-8TRS350MT delivers a new architecture to boost system performance. The new framework supports dual channel DDR 400, AGP 8X and Intel® Pentium® 4 800MHz FSB 3GHz+ processor with Hyper-Threading Technology. The P4 Titan™ GA-8TRS350MT contains an integrated graphics core, the 9100 Pro IGP, based on the Radeon 9200. Inherent to the 9100 Pro IGP are 3D features that provide astounding visual imagery as well as enhance the overall multimedia experience. The GA-8TRS350MT also provides a variety of features such as Serial ATA, 8 USB 2.0 ports, 6-channel audio, 10/100Mbps network connection, and high speed ATA133 interface. The GA-8TRS350MT delivers the best all-in-one solution and fulfills the requirements for a full range of applications today and for the future.
Superb Bandwidth AGP 8X Graphics InterfaceAGP8X the new generation VGA interface specification that enables enhanced graphics performance with high bandwidth speeds up to 2.12GB/s. With a bus of 533MHz, AGP8X is twice as fast as AGP4X.
EasyTuneTM 4 – The User Friendly Overclocking UtilityA user-friendly windows based utility developed by GIGABYTE provides a brand new experience of easily operation and enjoyment for overclocking on your platform.
Ethernet 10/100Mbps Network ConnectionThe onboard 10/100 Mbps Ethernet LAN connection offers a cost-saving and reliable solution for value-minded users requiring straightforward network connectivity.
Serial ATA InterfaceSerial ATA is the next generation ATA specification that provides scalable performance for today and tomorrow. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA, while providing 100% software compatibility.
TV-Out functionThrough TV-Out function, user can connect to TV directly with TV-Out cable. User can enjoy the larger vision from their television.
Great Expandability with 8 USB 2.0 PortsUSB 2.0 interface, with data transfer rate up to 480Mbps, is 40 times faster than USB1.1, providing a faster interface for computer peripherals.
Norton Internet Security™ IncludedNorton Internet Security™ 2004 is the essential protection from viruses, hackers, and privacy threats that may occur during online activities such as e-mailing, shopping, banking, and game play.
Dual Channel DDR400 Memory ArchitectureWith double the bandwidth of your system memory and hence boosts the system performance to out perform any memory existing solutions in the market. The GA-8IPE775-G (Rev 1.1) allows you to handle memory-intensive tasks with ease
Supports Intel Hyper-Threading TechnologySupporting the latest Intel Pentium 4 with Hyper-Threading Technology processor up to 3.06 GHz or above, this platform offers higher levels of performance, creativity and productivity than ever before.
Integrated High Quality 6-Channel AC97 AudioIntegrated Realtek ALC662 audio CODEC chip, enabling users to experience the seamless high quality 6-channel audio while watching movies or gaming
Integrated ATi Radeon 9100 Pro IGP Graphics AcceleratorWith Microsoft DirectX 8.1 support, ATI's Radeon 9100PRO IGP is engineered to provide new levels in visual effects. Revolutionary support for pixel shading technology enables game play, business presentations and multimedia to reach cinematic levels of quality- all on an integrated platform. Superior system performance is fueled by the award-winning Radeon 2D/3D graphics technology, which lacks the slowed, choppy response times of traditional integrated 3D solutions. Based on the Radeon 9200 GPU, the ATi 9100PRO IGP chipset delivers a high bandwidth of up to 3.2GB/s through its 2 pixel rendering pipelines and 4 texture 3D graphics engine while its advanced hardware acceleration allows for DVD playback and shared memory size of up to 128MB. Advanced features such as ATI's SMARTSHADER ™ technology enhances realism in game images and environments, Vertex Shaders adds rich detail to complex characters and surroundings, the innovative HYPERZ™ technology boosts memory performance while FULLSTREAM™ technology reduces blocks in Internet streaming video to produce sharper and crisper images.
