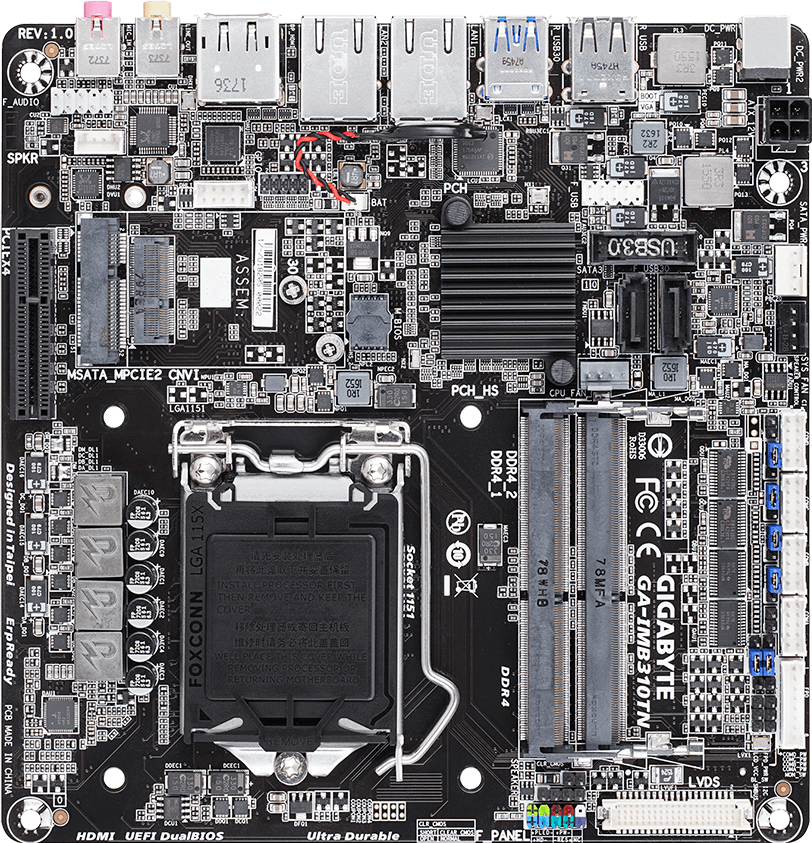

GA-IMB310TN (Rev. 1.0)

Supports 9th and 8th Generation Intel^® Core™ Processors up to 65W

Dual Channel DDR4 SO-DIMM, 2 DIMMs

2 x RS232/422/485, 2 x RS232, Digital I/O 4-in/4-out

M.2 Socket 1 for PCIe WIFI co-lay with CNVI Hybird E key WIFI

M.2 Socket 2260/80 Storage support PCIe/SATA Mode

Mini-PCIe Slot Full size Support mSATA/PCIe mode

VGA Header for legacy Monitor

LVDS Header for System Integrated Flat Panel Display Support

Rear Panel DisplayPort, HDMI 2.0 Ports & D-sub Header for Multi-Display Connection

Amplified Speaker Header Able to Drive Up to 3W System Integrated Speaker

Dual Intel^® GbE LAN for WOL and PXE Support

4 USB 3.0 and 4 USB 2.0 Ports, USB 3.0 support OTG function

OP 0~60 degree

Thin Mini-ITX 170x170mm Form Factor with 12/19~24V DC-In Power Design

Compatible with GIGABYTE Thin mini ITX Chassis

Specificaties
