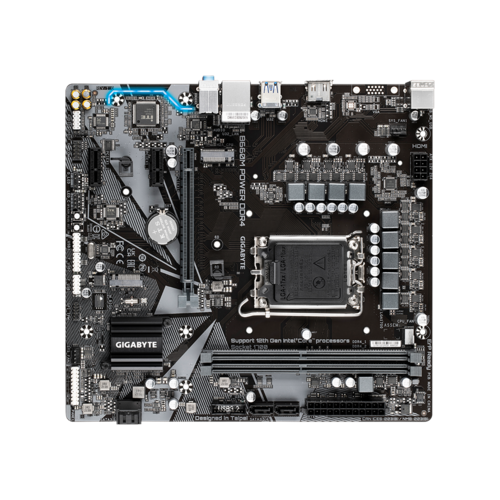

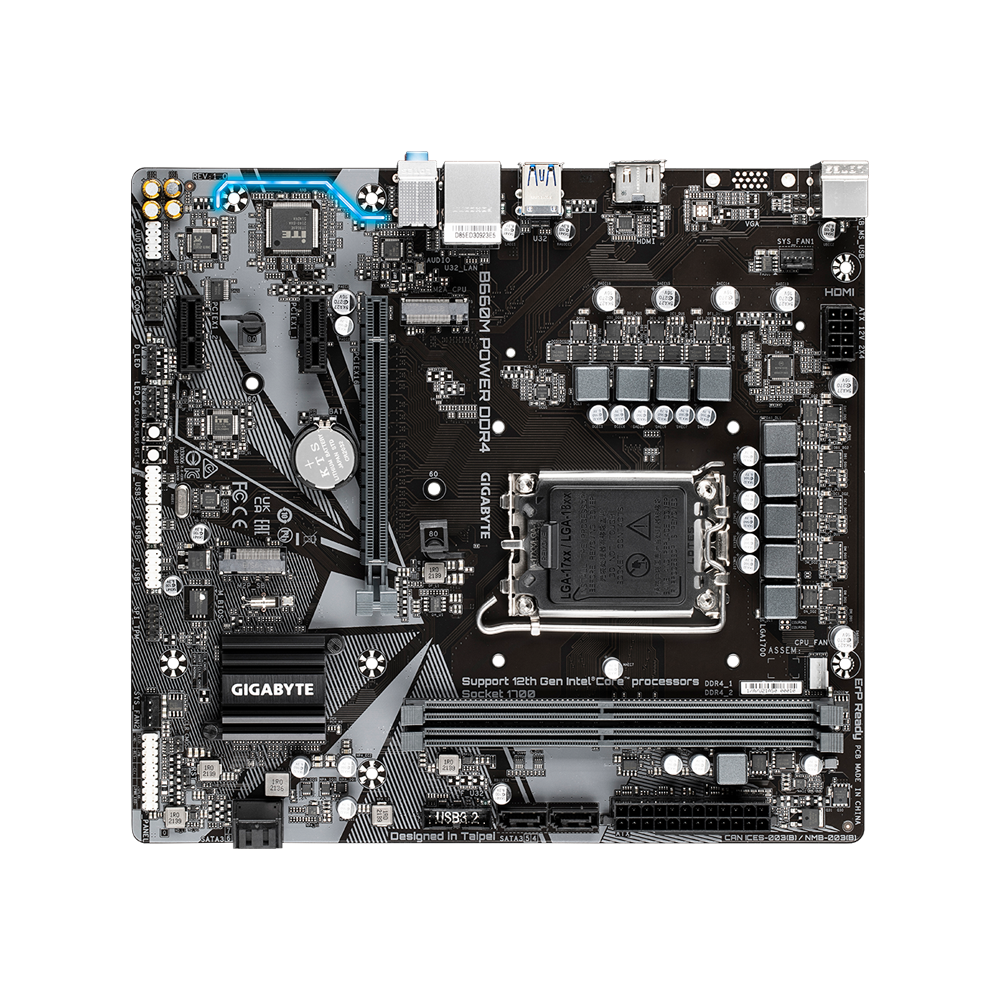

Intel® B660 Motherboard with 6+2+1 Phases Hybrid Digital, 2 x PCIe 4.0 M.2, GbE LAN, RGB FUSION 2.0, Q-Flash Plus​​​​

  • Supports Intel® Core™ 14th/ 13th /12th processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 6+2+1 Phases Hybrid Digital VRM​
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software​
  • Ultra-Fast NVMe PCIe 4.0 x4 M.2​
  • High Quality Audio Capacitors and Audio Noise Guard​
  • RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​​
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP​​
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​​
OVERVIEW
POWER
PERFORMANCE
CONNECTIVITY
ULTRA DURABLE
GIGABYTE EXCELLENCE
OVERVIEW
POWER
PERFORMANCE
CONNECTIVITY
ULTRA DURABLE
GIGABYTE EXCELLENCE
1
HDMI
2
USB 3.1 Gen1 Type-A
3
Intel® GbE LAN
4
2 x M.2 Ultra Storage Performance Connectors
  1. 2 x PCIe 4.0 x4 M.2
5
Audio Solutions
  1. 8-ch HD Audio
  2. Audio Noise Guard
  3. High-End Audio Capacitors
6
RGB FUSION 2.0
  1. Addressable LED Header*1
  2. RGB LED Header*1
7
Solid Pin Power Connectors
  1. 8 pin CPU Power Connector
8
6+2+1 Hybrid Digital VRM Design
  1. PCIe 4.0 Ready PCB
  2. Premium Choke and Capacitor
9
Supports 12th Gen. Intel Core™ Processors
10
Dual Channel DDR4, 2 DIMMs
11
4 x SATA3
12
Full PCIe 4.0 Design
  1. 1 x PCIe 4.0 x16 slot
  2. 2 x PCIe 4.0 x4 M.2 Connectors
13
Reboot System Button
14
Q-FLASH Plus Onboard Button
POWER
Hybrid Digital VRM Design
6+2+1 Phases Hybrid Power Design
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
  1. 6+2+1 Phases Low RDS(on) MOSFETs
  2. Solid capacitors to improve transient response and minimize oscillation
  3. 8-pin Solid Pin CPU Power Connector
PERFORMANCE
DDR4 XMP
PCIe 4.0 Design
Smart Fan 6
Hybrid Cores Optimization
Support for DDR4 XMP Up to 5333MHz and Beyond*
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.
* XMP Profile support may vary depending on memory module.
Please see the complete validated memory support list. Product features may vary by model.
1. PCIe 4.0 M.2 slot
2. PCIe 4.0 x16 slot
3. Low Signal Loss PCB
GIGABYTE B660 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience triple bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
Hybrid Cores Optimization
With new Intel Hybrid technology, GIGABYTE exclusively creates two new " CPU Upgrade " in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.
GAMING
MAX PERFORMANCE
• Deactivate all E-Core
• Zero compromise on gaming performance
• Up to 20% lower CPU package power
• Up to 5°C lower CPU temperature
• Activate all P-Core and E-Core
• Maximize full multi-cores performance
CONNECTIVITY
2X PCIe 4.0 M.2 Slots
Intel® GbE LAN
HDMI 2.0
Hi-Fi Audio
Dual PCIe 4.0 x4 M.2 Connectors
Intel® GbE LAN with cFosSpeed Internet Accelerator Networking
Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.


HDMI 2.0 for 4K UHD Display and HDCP 2.2 supported
HDMI 2.0, which is backwards compatible with HDMI 1.4, offers 18 Gb/s of bandwidth – nearly twice that of the previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), offering the best visual experience for viewers.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
ULTRA DURABLE
Q-Flash Plus
Solid Pin
Solid Pin Power Connectors
B660 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
  1. Larger contact area for electricity
  2. More metal quantity to sustain higher power and generated heat
  3. Ultra durable and longer lifespan
GIGABYTE EXCELLENCE
RGB FUSION
BIOS
EASY TUNE
System Information Viewer
Refreshed BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system. * Photos are for reference only. Product features may vary by model.

EasyTune™
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment.

System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
