1. Supports AMD Athlon™ XP 400MHz FSB processor
  2. Enhanced system performance with DDR memory
  3. Supports AGP 8x interface for outstanding graphics performance
  4. Integrated 10/100Mb Ethernet controller
  5. Integrated 6-channel AC’97 audio
  • Introduction

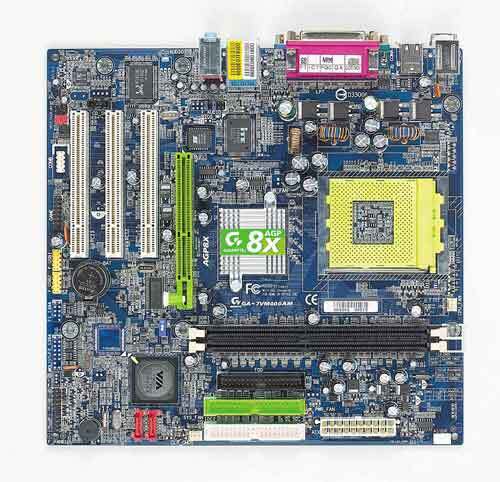

    The GA-7VM400AM is the new generation in all-in-one solutions for the AMD Athlon™ XP processor. Built on the VIA UniChrome KM400A chipset and loaded with numerous features, the GA-7VM400AM is definitely a full-functioning platform that delivers excellent performance. The VIA UniChrome KM400A chipset integrates the UniChrome™ 2D/3D graphics core with MPEG-2 acceleration for enhanced multimedia experience and true flexibility on the desktop. A flexible and ultra fast Front Side Bus (FSB) allows data exchange at speeds of up to 400MHz between the North Bridge chipset and the CPU, and an AGP 8X controller allows for graphics upgrade. The KM400A also supports a complete range of DDR memory speeds, including DDR400/333/266. In addition, Serial ATA , USB 2.0 and 6-channel audio are also integrated to provide a complete solution for corporate mainstream and consumer desktop systems. The GA-7VM400AM series truly represents the best choice in integrated solutions for the AMD Athlon™ XP platform.
  • Supports AMD AthlonTM XP 400MHz FSB Processor
    This platform enhances system responsiveness and fully utilizes the intense computing power of the AMD AthlonTM XP processor by supporting the highest CPU frequency and system bandwidth.
  • Superb Bandwidth AGP 8X Graphics Interface
    AGP8X the new generation VGA interface specification that enables enhanced graphics performance with high bandwidth speeds up to 2.12GB/s. With a bus of 533MHz, AGP8X is twice as fast as AGP4X.
  • DDR400 Memory Support
    The AMD Athlon™ 64 processor improves the memory performance by integrating a DDR memory controller into the processor. By running at the processor's core frequency, an integrated memory controller greatly increases bandwidth directly available to the processor at significantly reduced latencies.
  • Serial ATA Interface with RAID 0, 1
    Serial ATA is the next generation ATA specification that provides scalable performance for today and tomorrow. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA, while providing 100% software compatibility.
  • Great Expandability of 8 USB 2.0 Ports
    USB 2.0 interface, with data transfer rate up to 480Mbps, 40 times faster than USB1.1, providing a faster interface for computer peripherals.
  • High Quality 6-Channel Audio Support
    Integrated Realtek ALC662 audio CODEC chip, enabling users to experience the seamless high quality 6-channel audio while watching movies or gaming
  • Ethernet 10/100Mb LAN Network Connection
    The onboard 10/100 Mbps Ethernet LAN connection offers a cost-saving and reliable solution for value-minded users requiring straightforward network connectivity.
  • Norton Internet Security Included
    Norton Internet Security™ 2003 is the essential protection from viruses, hackers, and privacy threats that may occur during online activities such as e-mailing, shopping, banking, and game play.
