  1. Supports LGA775 Intel® Pentium® 4 processor FSB533 with HT technology
  2. Enhance system performance with DDR 400 memory
  3. Integrated MirageTM Graphics engine
  4. Integrated Serial-ATA interface with RAID 0,1 function
  5. Integrated 6-channel AC' 97 audio with Jack-Sensing
  6. Integrated 10/100Mb Ethernet controller
  7. Provides 8 USB 2.0 ports for high-speed connectivity
  • Introduction

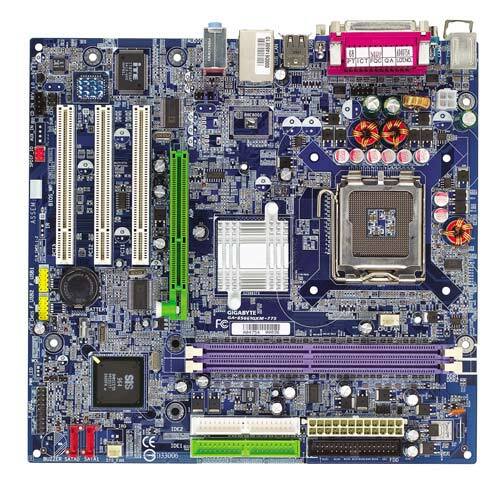

    GA-8S661GXM-775 (Rev 1.x) is a highly value-oriented P4 platform for the latest LGA775 Intel® Pentium® 4 processor with 800(OC)/533MHz FSB and Hyper-Threading Technology. Empowered by the latest SiS 661GX/964L chipsets, and Gigabyte's R&D expertise, GA-8S661GXM-775 (Rev 1.x) delivers a new architecture to uplift the system performance. The new framework supports DDR 400, AGP 8X and Intel® Pentium® 4 platform, especially for the latest LGA 775 90nm process Pentium® 4 processor with Hyper-Threading Technology, while Hyper Streaming Engine technologies enhances the platform performance to extreme. The integrated graphics, SiS® MirageTM Graphics engine, provides high quality graphics to ensure outstanding visual experience for multimedia equipments. GA-8S661GXM-775 (Rev 1.x) also provides a variety of features such as 8 USB 2.0 ports, 6-channel audio, 10/100Mbps network connection, and high speed ATA133 interface. GA-8S661GXM-775 (Rev 1.x) is designed to deliver the best all-in-one solution and fulfill the requirement for full range of applications now and future.
  • Ready for Intel 90nm process LGA 775 Pentium® 4 processor
    This platform is ready for the latest Pentium® 4 / Pentium® D processor, built on the new 90 nm technology for levels of performance, stability and productivity higher than ever before.
  • Integrated SiS® MirageTM 2D/3D Graphics Accelerator
    The SiS661FX chipset provides Ultra-AGPII Technology to deliver the highest bandwidth 3.2GB/s by 2 Pixel Rendering Pipelines and 4 Texture 3D Graphic Engine. It also has advanced HW acceleration for DVD playback and shared memory size up to 64MB.
  • Supports DDR 400/333/266 up to 2GB Memory
    The AMD Athlon™ 64 processor improves the memory performance by integrating a DDR memory controller into the processor. By running at the processor's core frequency, an integrated memory controller greatly increases bandwidth directly available to the processor at significantly reduced latencies.
  • Integrated SiS HyperStreaming Engine
    The HyperStreaming Engine, developed for users that have strong needs for bandwidth and speed, optimizes the performance of the entire computer system. It smartly manages the data streaming to flow effortlessly from the peripherals to the core logic chipsets, between the North and South bridge and to the front side bus, memory and graphic interface. This greatly improves the total performance of desktop platform.
  • Serial ATA with RAID 0, 1, JBOD function
    Serial ATA is the revolutionary ATA interface that provides scalable performance for IDE device. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA and delivers superior input/output performance. In addition, the Serial ATA interface is furnished with RAID 0,1 function for extra performance enhancement and data protection.
  • AGP 8X Graphics Interface
    AGP8X the new generation VGA interface specification that enables enhanced graphics performance with high bandwidth speeds up to 2.12GB/s. With a bus of 533MHz, AGP8X is twice as fast as AGP4X.
  • Great Expandability of 8 USB 2.0 ports
    USB 2.0 interface, with data transfer rate up to 480Mbps, 40 times faster than USB1.1, providing a faster interface for computer peripherals.
  • High quality 6-channel AC'97 audio with Jack-Sensing function
    Integrated ADI AD1888 AC'97 audio CODEC chip, enables users to experience the seamless high quality 6-channel audio while watching movies or gaming. With new Jack-Sensing feature users won't have to worry about how to install speakers correctly.
  • Ethernet 10/100Mbps Network Connection
    The onboard 10/100 Mbps Ethernet LAN connection offers a cost-saving and reliable solution for value-minded users requiring straightforward network connectivity.
  • EasyTune™5 ‏(Hardware monitor only)‏
    A user-friendly windows based utility developed by Gigabyte provides a brand new experience of easily operation and enjoyment for over-clocking on your platform.
  • GIGABYTE Xpress3 Series Software
    The Xpress3 series software includes 3 unique software features, 1) Xpress Install for easier driver installation ,2) Xpress BIOS Rescue for restoring BIOS back to its original stage if the BIOS is crashed (This feature is currently not available), 3) Xpress Recovery 2 a revolutionary software feature that backup or restore system files thru GIGABYTE driver CD or BIOS function
  • Norton Internet Security Included
    Norton Internet Security™ 2005 is the essential protection from viruses, hackers, and privacy threats. It protects user during the online activities such as e-mailing, shopping, banking, and game playing.
