1. Revolution energy saving design with DES Advanced featuring hardware based Dynamic 4-Gear switching
  2. Supports 45nm Intel® Core™ 2 multi-core processors with FSB 1600 MHz
  3. Dual channel DDR2 1200 for remarkable system performance
  4. Ultimate graphics performance with PCI-E 2.0 x16 interface
  5. Features high speed Gigabit Ethernet connector
  6. DualBIOS solution gives a multiple security to the system
  7. Home theater quality 8-channel High Definition Audio
(Note) This motherboard is designed with VRD11.1 power phase, and cannot be compatible with VRD10 designed CPU. Please refer to "CPU Support List" for details.
  • Introduction

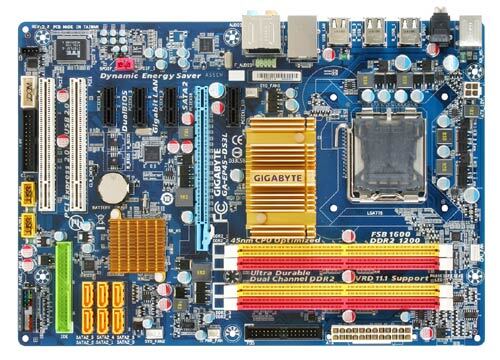

    Based on the new Intel P45 chipset, GA-EP45-DS3L delivers a record setting 1600MHz Front Side Bus for the latest Intel® Core 2™ multi-core processors, including 45nm CPUs and supporting dual channel DDR2 up to 1333+MHz. GA-EP45-DS3L features PCI Express 2.0 x16 interfaces, delivering double the PCI Express bandwidth of 5 Gbit/s for the ultimate in extreme gaming performance. GA-EP45-DS3L delivers several advanced GIGABYTE innovations including the DES Advanced, Ultra Durable design which provide optimized power savings, ultra cooling and ultra durability.
  • Qualified for Windows® 7
    The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more
  • کوچک تر، سریع تر و کم مصرف تر
    مادربرد GA-G41M-Combo با پردازنده های 45 نانومتری اینتل ترکیب شده است و ارائه دهنده بهترین پیکره بندی برای انجام کارهای چند منظوره، چند رسانه ای و بازی های ویدئویی سنگین است. مادربردهای جدید گیگابایت که بر پایه چیپ ست Eaglelake تولید می شوند از جدیدترین نسل پردازنده های 45 نانومتری چند هسته ای اینتل پشتیبانی می کنند.


  • Dual Channel DDR2 1333+ MHz
    با ارائه پشتیبانی محلی از حافظه های DDR2 با فرکانس 1333 مگاهرتز، مادربورد‌هاي جديد گيگابايت مجهز به فناوری UD3 این اجازه را به کاربران می دهد که بر روی ولتاژ پایینتری به فرکانس حافظه بالاتری دست پیدا کنند. همچنین با مصرف انرژی کمتری کارایی بالاتری را از حافظه داشته باشند و به واسطه این قابلیت نرم افزارهای حجیم مانند ویدئوهای با کیفیت بسیار بالا و بازی های سه بعدی سنگین را به سادگی و بدون مشکل اجرا کند.
    * تنها زمانی پشتیبانی از حافظه DDR2 1333+ صورت می گیرد که از ترکیب پردازنده AM3 و برخی ماژول های حافظه های خاص استفاده شود، برای کسب اطلاعات بیشتر درباره حافظه های پشتیبانی شده به بخش "لیست حافظه های پشتیبانی شده" مراجعه کنید.
  • PCI-E 2.0 Graphic Interface
    PCI-E 2.0 doubles the bus standard's bandwidth from 2.5 Gbit/s to 5 Gbit/s, meaning a x32 connector can transfer data at up to 16 GB/s in each direction. PCIE 2.0 also features improvements to the point-to-point data transfer protocol and its software architecture.
  • صدای با کیفیت بسیار بالای اینتل
    صدای با کیفیت بسیار بالای اینتل دارای یک خروجی صدای 8 کاناله دیجیتال است که ارائه دهنده یک صدای فراگیر و شفاف است. به علاوه، صدای HD اینتل ارائه دهنده صدای چند کاناله است که به واسطه این ویژگی شما می توانید در یک زمان دو خروجی مجزا از کامپیوتر خود بگیرید و صدای خروجی را در دو اتاق مجزا پخش کنید.


  • Dynamic Energy Saver Advanced
    GIGABYTE Dynamic Energy Saver Advanced provides better energy saving capabilities and enhanced system performance. GIGABYTE Dynamic Energy Saver Advanced is the world’s only motherboard energy saving technology with hardware-based Dynamic 4-Gear* Switching. With support for VRD 11.1, GIGABYTE’s DES Advanced allows the motherboard to switch to 1 Gear phase switching during idle, allowing for a dramatic increase in power savings.

    GIGABYTE has also retooled Dynamic Energy Saver to allow overclockers to experience the benefits of multi-gear power phase switching while overclocking, providing ultra stable, ultra smooth overclocking performance.
    * The 4-Gear feature may vary by model. Gear 1 phase switching requires 45nm processors with PSI signal enabled.
  • The Industry's Leading All-Solid Capacitor motherboard Design
    To ensure a longer operation life time for systems in daily operation and boost system stability under extreme conditions, this platform adopts cutting-edge Conductive Polymer Aluminum Solid Capacitors from the world's leading vendors. With these high-qualitycomponents , users can take advantage of better electronic conductivity and excellent heat resistance for enhanced system durability.


  • Gigabit LAN connectivity
    The Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents

    Adjusts power consumption automatically according to your LAN cable lengths, up to 10% power savings.
  • Hardware Overvoltage Control ICs
    Hardware Overvoltage Control ICs which provide more voltage control options than before for the CPU. The overvoltage controllers also provide hardware linear real-time voltage control. In addition, Hardware Overvoltage Controller ICs also allow for much finer voltage control, allowing power users to adjust voltage in as little increments as 20mV for better overclocking performance.
  • EasyTune6
    شركت گیگابایت با طراحی نرم‌افزار پیشرفته و اختصاصی Easy tune 6، یک امكان مدیریتی كامل را برای مدیریت دما و ولتاژ قطعات سخت‌افزاری در اختیار كاربر قرار می‌دهد كه با وجود آن می‌توان تنظیمات سیستم را به گونه‌ای انجام داد تا بدون بروز مشكل حداكثر كارایی را از قطعات سیستم خود بدست آورید. پس اگر شما یک كاربر علاقه‌مند به اوركلاک و یا كاربر مبتدی باشید به راحتی می‌توانید با استفاده از نرم‌افزار Easy Tune 6 سیستم خود را بهترین نحو تنظیم كنید.


  • DualBIOS™ - Patented Dual Hardware BIOS Protection
    DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
  • 5‎0 هزار ساعت عمر مفید خازن‌های جامد ژاپنی
    مادربرد‌های جدید شركت گیگابایت كه بر‌اساس فن آوری UD به بازار ارائه می‌شوند، همگی مجهز به خازن‌های جامدی هستند که توسط بهترین شرکت های ژاپنی تولید شده اند. این خازن‌ها كه 50 هزار ساعت عمر مفید دارند باعث افزایش ثبات و اطمینان سیستم و ماندگاری مادربرد در شرایط سخت كاری می‌شود. این عوامل باعث می شوند تا شما بتوانید از جدیدترین و قدرتمندترین پردازنده ها و قطعات روی سیستم خود اسفاده کنید و سنگین ترین برنامه ها و بازی ها را با آن اجرا کنید. *50000 ساعت عمر مفید خازن ها در دمای 85 درجه سانتیگراد اندازه گیری شده است

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* کلیه موارد ارایه شده در این صفحه تنها مربوط به نوع مرجع می باشد. گیگابایت حق تغییر یا تجدید نظر محتویات را در هر لحظه و بدون اطلاع قبلی دارد.
* کارایی ارایه شده بر اساس مقادیر حداکثر نظری رابط است که توسط فروشنده چیپ ست یا سازمان هایی که مشخصات رابط را تعیین کردند، ارائه شده است. کارایی واقعی ممکن است بنا بر پیکربندی سیستم متفاوت باشد.
* کلیه لوگو ها و آرم های ثبت شده تحت مالکیت مالکین مربوطه آن ها قرار دارد.
* با توجه به معماری استاندارد رایانه های شخصی، مقدار مشخصی از حافظه جهت استفاده درونی سیستم درنظر گرفته می شود و طبیعتا مقدار واقعی حافظه سیستم کم تر از مقدار اظهار شده خواهد بود.
