  1. Revolution energy saving design with DES Advanced featuring hardware based Dynamic 6-Gear switching
  2. Supports 45nm Intel® Core 2™ multi-core processors with FSB 1600 MHz
  3. Dual channel DDR2 1200 for remarkable system performance
  4. 2 PCI-E 2.0 x16 graphic interface with CrossFireX support for ultimate graphics performance
  5. Built-in TPM chip with 2048bits encryption to highest level digital data protection
  6. Smart Backup provides data backup solution with 4 serial ATA device attachment from 2 hardware RAID chip
  7. Diagnostic LED and ACPI LEDs on board to display system and power status
  8. 2 Gigabit Ethernet LAN with Teaming functionality
  9. Supports Dolby Home Theater® audio to create a stunning surround sound listening experience.
  10. DualBIOS solution gives a multiple security to the system
  11. Power/reset/Clr CMOS onboard button for easily operation on the workbench
  12. Hardware Overvoltage Control IC Provides more voltage control options on CPU, North bridge and memory
  13. Blu-ray playback outputs supported by high quality 106dB SNR ALC889A HD audio
(Note) This motherboard is designed with VRD11.1 power phase, and cannot be compatible with VRD10 designed CPU. Please refer to "CPU Support List" for details.
  • Introduction

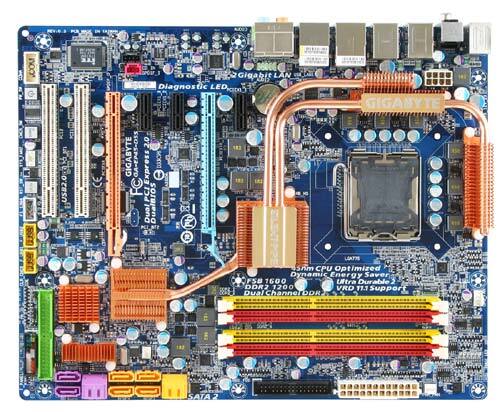

    Based on the new Intel P45 chipset, GA-EP45-DS5 delivers a record setting 1600MHz Front Side Bus for the latest Intel® Core 2™ multi-core processors, including 45nm CPUs. With supporting dual channel DDR2 up to 1333+MHz, GA-EP45-DS5 motherboard provides the highest levels of performance and maximum overclocking potential. In additional, GA-EP45-DS5 is further equipped to support ATI CrossFireX™ Technology with dual PCI Express 2.0 x8 interfaces, delivering double the PCI Express bandwidth of 5 Gbit/s for the ultimate in extreme gaming performance. GA-EP45-DS5 delivers several advanced GIGABYTE innovations including the DES Advanced, Ultra Durable 2, Ultra TPM design which provide optimized power savings, ultra cooling and ultra secure data protection.
  • Qualified for Windows® 7
    The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more
  • کوچک تر، سریع تر و کم مصرف تر
    مادربرد GA-G41M-Combo با پردازنده های 45 نانومتری اینتل ترکیب شده است و ارائه دهنده بهترین پیکره بندی برای انجام کارهای چند منظوره، چند رسانه ای و بازی های ویدئویی سنگین است. مادربردهای جدید گیگابایت که بر پایه چیپ ست Eaglelake تولید می شوند از جدیدترین نسل پردازنده های 45 نانومتری چند هسته ای اینتل پشتیبانی می کنند.


  • Dual Channel DDR2 1333+ MHz
    Delivering native support for DDR2 memory up to 1333MHz, GIGABYTE Ultra Durable 3 series motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease.
    * DDR2 1333+ is supported with combination of AM3 processors and qualified memory modules, please refer "Memory Support List" for detail memory support information.
  • PCI-E 2.‎0 Graphic Interface
    PCI-E 2.0 doubles the bus standard's bandwidth from 2.5 Gbit/s to 5 Gbit/s, meaning a x32 connector can transfer data at up to 16 GB/s in each direction. PCIe 2.0 also features improvements to the point-to-point data transfer protocol and its software architecture.
  • ATI CrossFireX
    With support for ATI CrossFireX, GIGABYTE pushes the envelope once again by delivering highly optimized performance and flexibility demanded by power users and extreme gaming enthusiasts. Designed to provide unmatched multi-GPU support with dual PCI Express connectivity, the GA-EP45-DS5 allows users to take advantage of the ultra smooth 3D rendering, blazing-fast frame rates and enhanced visual quality possible with a dual graphics card solution.

    Attention: When attempting to enable ATI CrossfireX Technology on this board.In case of unable to get Crossfire Technology working normally, please make sure to use ATI graphic cards that have hardware Crossfire bridge.(Please refer to ATI official website for more Crossfire Technology supporting details: (http://ati.amd.com/technology/crossfire/charts.html)
  • Dolby Home Theater® - Enjoy a Rich Home Theater Surround Sound Experience
    Dolby Home Theater places listeners in the middle of the action, giving their PCs a powerful set of tools to deliver a cinema-style experience in vivid surround sound.
    • Delivers vivid surround sound for music, movies, and games, using two to eight speakers or any set of headphones
    • Designed to automatically deliver the best possible listening experience


  • Dynamic Energy Saver Advanced
    GIGABYTE Dynamic Energy Saver Advanced provides better energy saving capabilities and enhanced system performance. GIGABYTE Dynamic Energy Saver Advanced is the world's only motherboard energy saving technology with hardware-based Dynamic 6-Gear* Switching. With support for VRD 11.1, GIGABYTE’s DES Advanced allows the motherboard to switch to 1 Gear phase switching during idle, allowing for a dramatic increase in power savings.

    GIGABYTE has also retooled Dynamic Energy Saver to allow overclockers to experience the benefits of multi-gear power phase switching while overclocking, providing ultra stable, ultra smooth overclocking performance.
    * The 6-Gear feature may vary by model. Gear 1 phase switching requires 45nm processors with PSI signal enabled.


  • Ultra TPM - Industry’s highest level of data Security via onboard TPM
    • Maximum level of data protection with 2048 bit encryption
    • Security, manageability and flexibility that surpasses software-based encryption
    • Portable User Key to protect data when away from your system
    • Additional backup of user key in BIOS in case of misplaced key
    ......more
    • After creating the password(s) and key(s) associated the TPM, be sure to store them in a secure location and back them up. Loss of the password(s) or the key(s) will render the files encrypted via the TPM unable to be cracked or read.
    • Though the TPM delivers the latest data security technology, it does not guarantee data integrity or give hardware protection. GIGABYTE is not liable for loss of encrypted data as a result of hardware damage.
    (Note)If you want to uninstall the Ultra TPM utility, be sure to insert the USB flash drive containing the TPM key into your computer before the uninstallation.


  • High Velocity 2X Bandwidth Boost
    the dual lan with teaming functionality enabled allows 2 single connections to act as 1 single connection for 2x bandwidth, improving overall throughput.

    prevents network downtime by transferring the workload from a failed port to a working port.

    receive side scaling balances the network traffic load evenly between 2 cpu cores in order to improve performance.

    adjusts power consumption automatically according to your lan cable lengths, up to 10% power savings.
  • Hardware Overvoltage Control ICs
    Hardware Overvoltage Control ICs which provide more voltage control options than before for the CPU North Bridge and memory. The overvoltage controllers also provide hardware linear real-time voltage control. In addition, Hardware Overvoltage Controller ICs also allow for much finer voltage control, allowing power users to adjust voltage in as little increments as 20mV for better overclocking performance.
  • EasyTune6
    شركت گیگابایت با طراحی نرم‌افزار پیشرفته و اختصاصی Easy tune 6، یک امكان مدیریتی كامل را برای مدیریت دما و ولتاژ قطعات سخت‌افزاری در اختیار كاربر قرار می‌دهد كه با وجود آن می‌توان تنظیمات سیستم را به گونه‌ای انجام داد تا بدون بروز مشكل حداكثر كارایی را از قطعات سیستم خود بدست آورید. پس اگر شما یک كاربر علاقه‌مند به اوركلاک و یا كاربر مبتدی باشید به راحتی می‌توانید با استفاده از نرم‌افزار Easy Tune 6 سیستم خود را بهترین نحو تنظیم كنید.


  • Smart Backup- Plug & Play Hardware RAID
    GIGABYTE’s Smart Backup allows users to connect up to 4 Serial ATA devices for effortless RAID data protection. Dual onboard RAID controller chips automatically configure RAID setup without user intervention, making it easier than ever for users to enjoy enhanced data transfer performance, low CPU utilization, real-time backup on-the-fly and protection against HDD failure.
  • بایوس دوگانه انحصاری با حفاظت بایوس دوگانه سخت افزاری
    بایوس دوگانه یکی از تکنولوژی های انحصاری گیگابایت است که به صورت خودکار در زمان خرابی احتمالی بایوس اصلی اطلاعات را بازیابی می کند و از پاک شدن آنها جلوگیری می کند. بواسطه وجود دو ROM بایوس فیزیکی مجتمع آنبرد، تکنولوژی بایوس دوگانه گیگابایت می تواند به سرعت و به راحتی اطلاعات بایوس صدمه دیده را بازیابی کند و یا اطلاعات را از بایوس ویروسی شده به بایوس جایگزین انتقال دهد.
  • Onboard Diagnostic LEDs - Hardware Troubleshoot at a Glance

    7 onboard leds controlled by the system bios indicate if a malfunction is occurring, allowing users to directly see where the problem is occurring, so they can quickly take question.
  • Onboard ACPI LEDs - Power Status Indicators to avoid improper hardware removal
    the advanced configuration and power interface (acpi) gives the operating system direct control over the power management. there are 4 embedded leds onboard to indicate system power status to prevent potential h/w damage due to improper plug/unplug actions.
  • Onboard Quick Switches
    Onboard Power, Clear CMOS and Reset buttons allow for quick and easy tweaking for power users working in an in chassis environment.
  • Ultra Durable 2 -Designed with Top Quality Highly Efficient Components

    ultra cooling - low rds(on) mosfet design
    low rds(on) mosfets specially designed to produce lower switching resistance for faster electric current charging and discharging...more


    low power loss - ferrite core choke design
    ferrite core chokes comprised of a compound of iron oxide and other metal elements whose properties hold energy much longer than common iron core at high frequency...more

    longer life - all-solid capacitor design
    solid capacitors contain a solid organic polymer, while electrolytic capacitors use a common liquid electrolyte, hence, the terms solid capacitor versus electrolytic capacitors...more
  • 5‎0 هزار ساعت عمر مفید خازن‌های جامد ژاپنی
    مادربرد‌های جدید شركت گیگابایت كه بر‌اساس فن آوری UD به بازار ارائه می‌شوند، همگی مجهز به خازن‌های جامدی هستند که توسط بهترین شرکت های ژاپنی تولید شده اند. این خازن‌ها كه 50 هزار ساعت عمر مفید دارند باعث افزایش ثبات و اطمینان سیستم و ماندگاری مادربرد در شرایط سخت كاری می‌شود. این عوامل باعث می شوند تا شما بتوانید از جدیدترین و قدرتمندترین پردازنده ها و قطعات روی سیستم خود اسفاده کنید و سنگین ترین برنامه ها و بازی ها را با آن اجرا کنید. *50000 ساعت عمر مفید خازن ها در دمای 85 درجه سانتیگراد اندازه گیری شده است
* کلیه موارد ارایه شده در این صفحه تنها مربوط به نوع مرجع می باشد.‎ گیگابایت حق تغییر یا تجدید نظر محتویات را در هر لحظه و بدون اطلاع قبلی دارد.‎
* کارایی ارایه شده بر اساس مقادیر حداکثر نظری رابط است که توسط فروشنده چیپ ست یا سازمان هایی که مشخصات رابط را تعیین کردند، ارائه شده است.‎ کارایی واقعی ممکن است بنا بر پیکربندی سیستم متفاوت باشد.‎
* کلیه لوگو ها و آرم های ثبت شده تحت مالکیت مالکین مربوطه آن ها قرار دارد.‎
* با توجه به معماری استاندارد رایانه های شخصی، مقدار مشخصی از حافظه جهت استفاده درونی سیستم درنظر گرفته می شود و طبیعتا مقدار واقعی حافظه سیستم کم تر از مقدار اظهار شده خواهد بود.‎
