1. Revolution energy saving design with DES Advanced featuring hardware based Dynamic 4-Gear switching
  2. Supports 45nm Intel Core 2 multi-core processors with FSB 1600 MHz
  3. Dual channel DDR2 1366+ for remarkable system performance
  4. Ultimate graphics performance with PCI-E x16 interface
  5. Features high speed Gigabit Ethernet connection
  6. Patented DualBIOS with dual hardware BIOS protection
  7. Home theater quality 8-channel High Definition Audio
  • Introduction

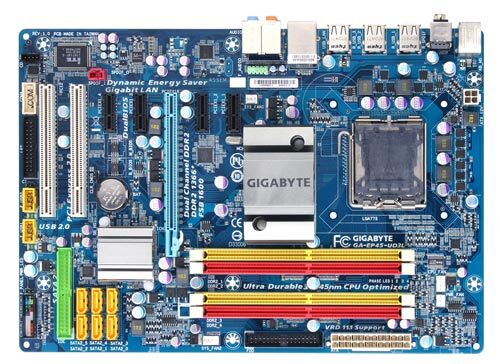

    The GA-EP45-UD3L introduces revolutionary GIGABYTE Ultra Durable 3 technology featuring a 2 oz copper PCB to help reduce system temperature and dramatically enhance performance. Based on the Intel P45 chipset the GA-EP45-UD3L delivers a record-setting 1600MHz FSB for the latest Intel® Core 2™ multi-core processors, and supports dual channel DDR2 memory at speeds of up to 1366MHz and even higher. Additionally, the GA-EP45-UD3L incorporates GIGABYTE DES Advanced technology for industry leading energy saving and enhanced system efficiency.
  • Qualified for Windows® 7
    The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more


  • Ultra Durable 3 – Copper Cooled Quality


    GIGABYTE Ultra Durable 3 series motherboards once again lead the motherboard industry for the highest quality and most innovative motherboard design. Featuring the industry’s first consumer desktop motherboard design to introduce 2 ounces of copper for both the Power and Ground layers, delivering a dramatically lower system temperature, improved energy efficiency and enhanced stability for overclocking.
    GIGABYTE Ultra Durable 3 motherboards are also equipped with the GIGABYTE Ultra Durable signature features including Japanese Solid Capacitors boasting an operational life time of more than 50,000 hours, Ferrite core chokes with higher energy efficiency compared to the commonly used iron core chokes and Lower RDS(on) MOSFETs that features a lower resistance, which reduces power consumption and heat generation. GIGABYTE Ultra Durable 3 series motherboards promise to provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games...more
    Enlarge View Enlarge View


  • DDR2 1366+ Support --The World's Fastest DDR2 Motherboard
    با ارائه پشتیبانی محلی از حافظه های DDR2 تا فرکانس +1366 ، مادربوردهای سری UD3 گیگابایت این اجازه را به کاربران می دهند که در ولتاژ پایین تری به راحتی به فرکانس حافظه بالاتری دست پیدا کنند و در حالی که انرژی کمتری مصرف می کنند کارایی بیشتری را از حافظه سیستم خود دریافت کنند و از این طریق نرم افزارهای حجیم مثل ویدئوهای با کیفیت بسیار بالا و بازی های سه بعدی سنگین را به راحتی اجرا کنند.
    * برای کسب اطلاعات بیشتر درباره حافظه های پشتیبانی شده، لطفا به "لیست حافظه های پشتیبانی شده" مراجعه کنید.


  • Dynamic Energy Saver Advanced
    GIGABYTE Dynamic Energy Saver Advanced provides better energy saving capabilities and enhanced system performance. GIGABYTE Dynamic Energy Saver Advanced is the world’s only motherboard energy saving technology with hardware-based Dynamic 4-Gear* Switching. With support for VRD 11.1, GIGABYTE’s DES Advanced allows the motherboard to switch to 1 Gear phase switching during idle, allowing for a dramatic increase in power savings.

    GIGABYTE has also retooled Dynamic Energy Saver to allow overclockers to experience the benefits of multi-gear power phase switching while overclocking, providing ultra stable, ultra smooth overclocking performance.
    * The 4-Gear feature may vary by model. Gear 1 phase switching requires 45nm processors with PSI signal enabled.
  • سريع و بدون دردسر تنها با يك كليك اوركلاك كنيد
    نرم افزار Quick Boost شركت گيگابايت در سه مرحله امكان اوركلاك پردازنده را بدون كمترين دردسر و در كوتاه‌ترين زمان تنها با يك كليك براي كاربران فراهم مي‌كند. فقط کافیست بر روی درجه مورد نظر خود یک کلیک کنید و به عنوان یک کاربر مبتدی یا حرفه ای از تجربه یک اورکلاک سریع و بدون دردسر لذت ببرید.
  • EasyTune6
    شركت گیگابایت با طراحی نرم‌افزار پیشرفته و اختصاصی Easy tune 6، یک امكان مدیریتی كامل را برای مدیریت دما و ولتاژ قطعات سخت‌افزاری در اختیار كاربر قرار می‌دهد كه با وجود آن می‌توان تنظیمات سیستم را به گونه‌ای انجام داد تا بدون بروز مشكل حداكثر كارایی را از قطعات سیستم خود بدست آورید. پس اگر شما یک كاربر علاقه‌مند به اوركلاک و یا كاربر مبتدی باشید به راحتی می‌توانید با استفاده از نرم‌افزار Easy Tune 6 سیستم خود را بهترین نحو تنظیم كنید.


  • DualBIOS™ - Patented Dual Hardware BIOS Protection
    DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.


  • Gigabit LAN connectivity
    The Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents

    Adjusts power consumption automatically according to your LAN cable lengths, up to 10% power savings.
  • صدای با کیفیت بسیار بالای اینتل
    صدای با کیفیت بسیار بالای اینتل دارای یک خروجی صدای 8 کاناله دیجیتال است که ارائه دهنده یک صدای فراگیر و شفاف است. به علاوه، صدای HD اینتل ارائه دهنده صدای چند کاناله است که به واسطه این ویژگی شما می توانید در یک زمان دو خروجی مجزا از کامپیوتر خود بگیرید و صدای خروجی را در دو اتاق مجزا پخش کنید.
  • 5‎0 هزار ساعت عمر مفید خازن‌های جامد ژاپنی
    مادربرد‌های جدید شركت گیگابایت كه بر‌اساس فن آوری UD به بازار ارائه می‌شوند، همگی مجهز به خازن‌های جامدی هستند که توسط بهترین شرکت های ژاپنی تولید شده اند. این خازن‌ها كه 50 هزار ساعت عمر مفید دارند باعث افزایش ثبات و اطمینان سیستم و ماندگاری مادربرد در شرایط سخت كاری می‌شود. این عوامل باعث می شوند تا شما بتوانید از جدیدترین و قدرتمندترین پردازنده ها و قطعات روی سیستم خود اسفاده کنید و سنگین ترین برنامه ها و بازی ها را با آن اجرا کنید. *50000 ساعت عمر مفید خازن ها در دمای 85 درجه سانتیگراد اندازه گیری شده است

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* کلیه موارد ارایه شده در این صفحه تنها مربوط به نوع مرجع می باشد. گیگابایت حق تغییر یا تجدید نظر محتویات را در هر لحظه و بدون اطلاع قبلی دارد.
* کارایی ارایه شده بر اساس مقادیر حداکثر نظری رابط است که توسط فروشنده چیپ ست یا سازمان هایی که مشخصات رابط را تعیین کردند، ارائه شده است. کارایی واقعی ممکن است بنا بر پیکربندی سیستم متفاوت باشد.
* کلیه لوگو ها و آرم های ثبت شده تحت مالکیت مالکین مربوطه آن ها قرار دارد.
* با توجه به معماری استاندارد رایانه های شخصی، مقدار مشخصی از حافظه جهت استفاده درونی سیستم درنظر گرفته می شود و طبیعتا مقدار واقعی حافظه سیستم کم تر از مقدار اظهار شده خواهد بود.
