  1. Ultra Durable 3 technology with 2 oz copper PCB for 50°C cooler working temperature
  2. Revolution energy saving design with DES Advanced featuring hardware based Dynamic 6-Gear switching
  3. Supports 45nm Intel® Core 2™ multi-core processors with FSB 1600 MHz
  4. Natively support to dual channel DDR2 1366+* for remarkable system performance
  5. 2 PCI-E 2.0 x16 graphic interface with CrossFireX support for ultimate graphics performance
  6. Built-in TPM chip with 2048bits encryption to highest level digital data protection
  7. 2 Gigabit Ethernet LAN with Teaming functionality
  8. 100% 50,000 hour lifespan Japanese solid capacitors design
  9. DualBIOS solution gives a multiple security to the system
  10. Hardware Overvoltage Control IC Provides more voltage control options on CPU, North bridge and memory
  11. Supports Dolby Home Theater® audio to create a stunning surround sound listening experience.
  12. Blu-ray playback outputs supported by high quality 106dB SNR ALC889A HD audio
* Refer to Memory Support List for more information.
  • Introduction

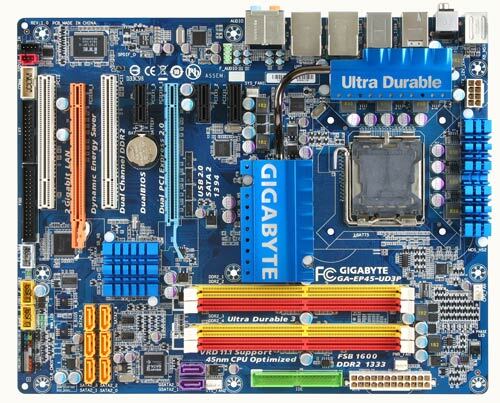

    The GA-EP45-UD3P introduces revolutionary GIGABYTE Ultra Durable 3 technology featuring a 2 oz copper PCB to help reduce system temperature and dramatically enhance performance. Based on the Intel P45 chipset the GA-EP45-UD3P delivers a record-setting 1600MHz FSB for the latest Intel® Core 2™ multi-core processors, and supports dual channel DDR2 memory at speeds of up to 1366MHz and even higher. The GA-EP45-UD3P boasts dual PCI Express 2.0 VGA card slots for ATI CrossFireX™ support with ultra smooth 3D rendering and blazingly-fast frame rates. Additionally, the board incorporates GIGABYTE DES Advanced technology for industry leading energy saving and enhanced system efficiency.
  • دارای تاییدیه Windows® 7 WHQL
    این مادربرد موفق به دریافت تاییدیه (Windows Hardware Quality Labs) WHQL برای Windows 7 مایکروسافت که استانداردی برای نسل آینده قطعات است گردید... more


  • Ultra Durable 3 – Copper Cooled Quality


    GIGABYTE Ultra Durable 3 series motherboards once again lead the motherboard industry for the highest quality and most innovative motherboard design. Featuring the industry’s first consumer desktop motherboard design to introduce 2 ounces of copper for both the Power and Ground layers, delivering a dramatically lower system temperature, improved energy efficiency and enhanced stability for overclocking.
    GIGABYTE Ultra Durable 3 motherboards are also equipped with the GIGABYTE Ultra Durable signature features including Japanese Solid Capacitors boasting an operational life time of more than 50,000 hours, Ferrite core chokes with higher energy efficiency compared to the commonly used iron core chokes and Lower RDS(on) MOSFETs that features a lower resistance, which reduces power consumption and heat generation. GIGABYTE Ultra Durable 3 series motherboards promise to provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games...more
    Enlarge View Enlarge View


  • DDR2 1366+ Support --The World's Fastest DDR2 Motherboard
    delivering native support for ddr2 memory up to 1366+mhz, gigabyte ultra durable 3 series motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3d games with ease.
    * please refer "memory support list" for memory support information.


  • Ultra TPM - Industry’s highest level of data Security via onboard TPM
    • Maximum level of data protection with 2048 bit encryption
    • Security, manageability and flexibility that surpasses software-based encryption
    • Portable User Key to protect data when away from your system
    • Additional backup of user key in BIOS in case of misplaced key
    • After creating the password(s) and key(s) associated the TPM, be sure to store them in a secure location and back them up. Loss of the password(s) or the key(s) will render the files encrypted via the TPM unable to be cracked or read.
    • Though the TPM delivers the latest data security technology, it does not guarantee data integrity or give hardware protection. GIGABYTE is not liable for loss of encrypted data as a result of hardware damage.
    (Note)If you want to uninstall the Ultra TPM utility, be sure to insert the USB flash drive containing the TPM key into your computer before the uninstallation.


  • High Velocity 2X Bandwidth Boost
    the dual lan with teaming functionality enabled allows 2 single connections to act as 1 single connection for 2x bandwidth, improving overall throughput.

    prevents network downtime by transferring the workload from a failed port to a working port.

    receive side scaling balances the network traffic load evenly between 2 cpu cores in order to improve performance.

    adjusts power consumption automatically according to your lan cable lengths, up to 10% power savings.

    (note) to enable teaming or bonding (ieee 802.3ad link aggregation) feature, it is required the connected network switch or router device supports 802.3.ad lacp function.
    please refer to your network switch or router device manual for further details.


  • Dynamic Energy Saver Advanced
    GIGABYTE Dynamic Energy Saver Advanced provides better energy saving capabilities and enhanced system performance. GIGABYTE Dynamic Energy Saver Advanced is the world’s only motherboard energy saving technology with hardware-based Dynamic 6-Gear* Switching. With support for VRD 11.1, GIGABYTE’s DES Advanced allows the motherboard to switch to 1 Gear phase switching during idle, allowing for a dramatic increase in power savings.

    GIGABYTE has also retooled Dynamic Energy Saver to allow overclockers to experience the benefits of multi-gear power phase switching while overclocking, providing ultra stable, ultra smooth overclocking performance.
    * The 6-Gear feature may vary by model. Gear 1 phase switching requires 45nm processors with PSI signal enabled.
  • سريع و بدون دردسر تنها با يك كليك اوركلاك كنيد
    نرم افزار Quick Boost شركت گيگابايت در سه مرحله امكان اوركلاك پردازنده را بدون كمترين دردسر و در كوتاه‌ترين زمان تنها با يك كليك براي كاربران فراهم مي‌كند. فقط کافیست بر روی درجه مورد نظر خود یک کلیک کنید و به عنوان یک کاربر مبتدی یا حرفه ای از تجربه یک اورکلاک سریع و بدون دردسر لذت ببرید.
  • EasyTune6
    شركت گیگابایت با طراحی نرم‌افزار پیشرفته و اختصاصی Easy tune 6، یک امكان مدیریتی كامل را برای مدیریت دما و ولتاژ قطعات سخت‌افزاری در اختیار كاربر قرار می‌دهد كه با وجود آن می‌توان تنظیمات سیستم را به گونه‌ای انجام داد تا بدون بروز مشكل حداكثر كارایی را از قطعات سیستم خود بدست آورید. پس اگر شما یک كاربر علاقه‌مند به اوركلاک و یا كاربر مبتدی باشید به راحتی می‌توانید با استفاده از نرم‌افزار Easy Tune 6 سیستم خود را بهترین نحو تنظیم كنید.
  • Hardware OverVoltage Control IC-- Enabling Extreme Overclocking
    GIGABYTE Hardware Overvoltage Control ICs featuring more voltage control options than before for the CPU North Bridge and memory. The overvoltage controllers also provide hardware linear real-time voltage control, which means there is no delay compared to the GPIO controller in past implementations. In addition, GIGABYTE’s Hardware Overvoltage Controller ICs also allow for much finer voltage control, allowing power users to adjust voltage in as little increments as 20mV for better overclocking performance.


  • DualBIOS™ - Patented Dual Hardware BIOS Protection
    DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
  • ATI CrossFireX
    With support for ATI CrossFireX, GIGABYTE pushes the envelope once again by delivering highly optimized performance and flexibility demanded by power users and extreme gaming enthusiasts. Designed to provide unmatched multi-GPU support with dual PCI Express connectivity, the GA-EP45-DS3 allows users to take advantage of the ultra smooth 3D rendering, blazing-fast frame rates and enhanced visual quality possible with a dual graphics card solution.

    Attention: When attempting to enable ATI CrossfireX Technology on this board.In case of unable to get Crossfire Technology working normally, please make sure to use ATI graphic cards that have hardware Crossfire bridge.(Please refer to ATI official website for more Crossfire Technology supporting details: (http://ati.amd.com/technology/crossfire/charts.html)
  • Dolby Home Theater® - Enjoy a Rich Home Theater Surround Sound Experience
    Dolby Home Theater places listeners in the middle of the action, giving their PCs a powerful set of tools to deliver a cinema-style experience in vivid surround sound.
    • Delivers vivid surround sound for music, movies, and games, using two to eight speakers or any set of headphones
    • Designed to automatically deliver the best possible listening experience
  • 5‎0 هزار ساعت عمر مفید خازن‌های جامد ژاپنی
    مادربرد‌های جدید شركت گیگابایت كه بر‌اساس فن آوری UD به بازار ارائه می‌شوند، همگی مجهز به خازن‌های جامدی هستند که توسط بهترین شرکت های ژاپنی تولید شده اند. این خازن‌ها كه 50 هزار ساعت عمر مفید دارند باعث افزایش ثبات و اطمینان سیستم و ماندگاری مادربرد در شرایط سخت كاری می‌شود. این عوامل باعث می شوند تا شما بتوانید از جدیدترین و قدرتمندترین پردازنده ها و قطعات روی سیستم خود اسفاده کنید و سنگین ترین برنامه ها و بازی ها را با آن اجرا کنید. *50000 ساعت عمر مفید خازن ها در دمای 85 درجه سانتیگراد اندازه گیری شده است
* کلیه موارد ارایه شده در این صفحه تنها مربوط به نوع مرجع می باشد.‎ گیگابایت حق تغییر یا تجدید نظر محتویات را در هر لحظه و بدون اطلاع قبلی دارد.‎
* کارایی ارایه شده بر اساس مقادیر حداکثر نظری رابط است که توسط فروشنده چیپ ست یا سازمان هایی که مشخصات رابط را تعیین کردند، ارائه شده است.‎ کارایی واقعی ممکن است بنا بر پیکربندی سیستم متفاوت باشد.‎
* کلیه لوگو ها و آرم های ثبت شده تحت مالکیت مالکین مربوطه آن ها قرار دارد.‎
* با توجه به معماری استاندارد رایانه های شخصی، مقدار مشخصی از حافظه جهت استفاده درونی سیستم درنظر گرفته می شود و طبیعتا مقدار واقعی حافظه سیستم کم تر از مقدار اظهار شده خواهد بود.‎
