  1. Ultra Durable 3 Technology with copper cooled quality for lower working temperature
  2. Supports the newest Intel® Core™ i7 processors in socket LGA1366 with QPI 6.4 GT/s
  3. Revolution energy saving design with DES Advanced featuring hardware based Dynamic 6-Gear switching
  4. Supports 3 channel DDR3 2100+ memory by 6 DIMMs
  5. Scalable ability to both 3 way CrossFireX and 3 way SLI support for ultimate graphics performance
  6. Advanced 12+2+2 power phase design with VRD 11.1 support
  7. Built-in TPM chip with 2048bits encryption to highest level digital data protection
  8. Unique hardware control IC to provide more precision voltage control
  9. 100% 50,000 hour lifespan Japanese solid capacitors design
  10. Professed onboard LED allow user to easily catch on PC status
  11. Patented DualBIOS with dual hardware BIOS protection
  12. Features high speed Gigabit Ethernet connection
  13. Supports Dolby Home Theater audio to create a stunning surround sound listening experience
  14. Power/reset/Clr CMOS onboard button for easily operation on the workbench
  15. Blu-ray playback outputs supported by high quality 106dB SNR ALC889A HD audio
  • Get Ready to Unleash the Power of 32nm 6 Core CPUs
    GIGABYTE's entire line of X58-based motherboards are ready to support the new generation of Intel 32nm 6-core processors, delivering the very best platform for multitasking, multimedia and high performance gaming.
  • Introduction

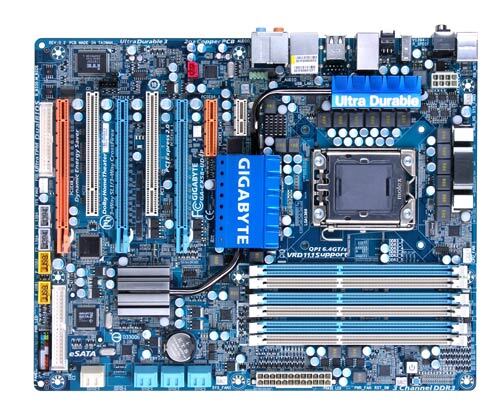

    The EX58-UD4P is the latest high performance X58 Series motherboards of GIGABYTE, designed from the ground up to unleash the awesome power of Intel’s new Core i7 processors. Equipped with a host of new features including the new QPI interface, 3 channel DDR3 support, 3 Way SLI™ and CrossFireX™ support, Ultra Durable 3 technology and the industry’s most extensive range of overclocking features, the EX58-UD4P is bringing excitement back into the high performance motherboard industry.
  • Intel® Core™ i7 Processor and X58 Chipset support


    The EX58-UD4P was designed specifically to take advantage of the raw power of the next generation Intel® Core i7 processors and the Intel® X58 Express chipset, whose new evolution in computing architecture is able to deliver an amazing performance break through from past processor generations. Replacing the Front Side Bus is the new Quick Path Interconnect, or QPI, whose 25.6 GB/sec transfer rate (double the bandwidth of the 1600MHz FSB) eliminates the communication bottleneck between the processor and chipset.
    The Intel® Core i7 processors also feature an integrated memory controller inside the processor die and support 192bit 3-channel DDR3 memory that delivers a 50% memory bandwidth enhancement and lower memory latency for incredibly fast memory access. Additionally, The EX58-UD4P features Intel® Turbo Boost Technology, which is able to power down idle processor cores and dynamically reroute the power to the active cores for significant performance boosts, and at the same time, maintain greater energy efficiency.
  • پشتیبانی از فن آوری On/Off Charge
    فن آوری On/Off Charge گیگابایت باعث می شود که ابزارهای iPhone، iPad و iPod Touch در هنگام اتصال به رایانه با سرعت بیشتری شارژ شوند. این فن آوری به عنوان یکی از زیر شاخه های ویژگی 3x USB Power به حساب می آید و نسبت به درگاه های USB معمولی توان بیشتری را در اختیار ابزار اتصالی برای شارژ قرار می دهد. به این ترتیب iPhone، iPad یا iPod Touch شما باسرعت بیشتری شارژ خواهد شد. علاوه بر این اگر رایانه شما در حالت standby یا حتی خاموش باشد نیز عملیات شارژ قطع نخواهد شد.more
    * با توجه به محدودیت هایی که در برخی گوشی های تلفن همراه وجود دارد، ممکن است نیاز باشد تلفن همراه خود را قبل از ورود رایانه به حالت S4/S5 به آن متصل کنید. تنها در این صورت است که عملیات شارژ سریع از طریق یک درگاه USB فاقد قابلیت On/Off Charge فعال می شود. نتایج عملیات شارژ ممکن است با توجه به نوع و مدل گوشی های تلفن همراه متفاوت باشد.
    On/Off Charge Driver download
  • Qualified for Windows® 7
    The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more
  • Integrated Memory Controller
    Intel® Core™ i7 Processors feature triple channel DDR3 support
    Intel Core™ i7 processors feature the memory controller integrated directly into the processor die, rather than as part of the Northbridge as in previous generations, allowing for faster memory performance. Core™ i7 processors also provide additional memory support including.
  • QPI , QuickPath Interconnect
    Replacing the role of FSB
    Intel uses the QPI to connect internal components of Core™ i7 processors , and to connect the CPU itself to the Northbridge and banks of memory.

    QPI delivers:
    Up to 25.6GB/sec of bandwidth between Core™ i7 processors and the rest of the system,providing exactly double the bandwidth of 1600 Hz FSB
  • Intel Turbo Boost Technology
    Dynamically reroutes power to improve performance For situations when all cores are not needed for a particular workload, Intel Turbo Boost Technology powers down the idle cores and dynamically reroutes the power to the active cores, boosting their performance without wasting power. This allows the active cores to achieve significant overclocks.


  • Ultra TPM - Industry’s highest level of data Security via onboard TPM
    • Maximum level of data protection with 2048 bit encryption
    • Security, manageability and flexibility that surpasses software-based encryption
    • Portable User Key to protect data when away from your system
    • Additional backup of user key in BIOS in case of misplaced key
    • After creating the password(s) and key(s) associated the TPM, be sure to store them in a secure location and back them up. Loss of the password(s) or the key(s) will render the files encrypted via the TPM unable to be cracked or read.
    • Though the TPM delivers the latest data security technology, it does not guarantee data integrity or give hardware protection. GIGABYTE is not liable for loss of encrypted data as a result of hardware damage.
    (Note)If you want to uninstall the Ultra TPM utility, be sure to insert the USB flash drive containing the TPM key into your computer before the uninstallation.
  • Multi-display support with 3 way CrossFireX and 3 way SLI™
    flexible graphics capabilities - up to 3 vga cards are supported for either 3 way crossfirex™ or 3 way sli™ action, delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.


  • Ultra Durable 3

    Ultra Durable 3
    GIGABYTE Ultra Durable 3 design, featuring 2 ounces of copper for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. GIGABYTE’s Ultra Durable 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2oz Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking...more
  • Benefits of 2 oz Copper PCB
    • Cooler than traditional motherboards
    • Enhanced durability
    • Improved energy efficiency
    • Greater margins for overclocking
  • 2‎X Lower Impedance


    In addition, doubling the amount of copper lowers the PCB impedance by 50%. Impedance is a measure of how much the circuit impedes the flow of current. The less the flow of current is impeded, the less amount of energy is wasted. For GIGABYTE Ultra Durable 3 motherboards, this means total PCB electrical waste is reduced by 50%, which also means less heat is generated. 2 ounces of copper also provides improved signal quality, providing better system stability and allowing for greater margins for overclocking.
  • Dynamic Energy Saver™ 2
    GIGABYTE Dynamic Energy Saver™ 2 incorporates a host of intelligent features that use a proprietary hardware and software design to considerably enhance PC system energy efficiency, Reduce power consumption and deliver optimized auto-phase-switching for the CPU, Memory, Chipset, VGA, HDD, and fans with a simple click of button.
  • Cloud OC

    Cloud OC گیگابایت یک نرم افزار رایگان برای اورکلاک است. کاربران به واسطه این نرم افزار می توانند از طریق ابزارهایی مثل تلفن های هوشمند، iPhone، iPad، نت بوک یا نوت بوک که قادر به جستجو در اینترنت می باشند، رایانه خود را اورکلاک کنند. اتصال مرورگر وب می تواند از طریق اینترنت بدون سیم، بلوتوث یا کابل اترنت باشد و تمامی امکانات آن در سه گروه Tuner، System Info و Control طبقه بندی می شوند.more
    Cloud OC download

  • Hotkey OC
    GIGABYTE Hotkey OC allows users to create and save various profiles that can be adopted for different benchmarks. Hotkey OC then allows users to jump between these profiles on the fly so that the best profile for each segment within the benchmark can be used to optimize scores and boost overall performance. So, for example, when running 3DMark 06 the 1st profile might be optimized for graphics and can be used for the first two graphics tests, then the next two tests can utilize the 2nd profile which might be optimized for CPU tests, and one could jump back to the 1st profile again for the final two graphics (shader) tests...more
    Hotkey OC download


  • DualBIOS™ - Patented Dual Hardware BIOS Protection
    DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.


  • Hardware OverVoltage Control IC - Enabling Extreme Overclocking
    GIGABYTE Hardware Overvoltage Control ICs featuring more voltage control options than before for the CPU North Bridge and memory. The overvoltage controllers also provide hardware linear real-time voltage control, which means there is no delay compared to the GPIO controller in past implementations. In addition, GIGABYTE’s Hardware Overvoltage Controller ICs also allow for much finer voltage control, allowing power users to adjust voltage in as little increments as 20mV for better overclocking performance.
  • OV-Alert LED
    4 sets of OV-Alert LEDs indicate the overvoltage level of the CPU, Memory, North Bridge and South Bridge to prevent component damage.
  • Visible Overclocking Reminder
    OC-Alert LED indicates the level of CPU overclock from low to high.
  • Visible Temperature Reminder
    Two sets of Temperature Alert LEDs indicate the current temperature level of the CPU and North Bridge
  • Onboard Quick Switches
    Onboard Power, Clear CMOS and Reset buttons allow for quick and easy tweaking for power users working in an in chassis environment.
  • EasyTune6
    شركت گیگابایت با طراحی نرم‌افزار پیشرفته و اختصاصی Easy tune 6، یک امكان مدیریتی كامل را برای مدیریت دما و ولتاژ قطعات سخت‌افزاری در اختیار كاربر قرار می‌دهد كه با وجود آن می‌توان تنظیمات سیستم را به گونه‌ای انجام داد تا بدون بروز مشكل حداكثر كارایی را از قطعات سیستم خود بدست آورید. پس اگر شما یک كاربر علاقه‌مند به اوركلاک و یا كاربر مبتدی باشید به راحتی می‌توانید با استفاده از نرم‌افزار Easy Tune 6 سیستم خود را بهترین نحو تنظیم كنید.
  • Dolby Home Theater® - Enjoy a Rich Home Theater Surround Sound Experience
    Dolby Home Theater places listeners in the middle of the action, giving their PCs a powerful set of tools to deliver a cinema-style experience in vivid surround sound.
    • Delivers vivid surround sound for music, movies, and games, using two to eight speakers or any set of headphones
    • Designed to automatically deliver the best possible listening experience
  • 5‎0 هزار ساعت عمر مفید خازن‌های جامد ژاپنی
    مادربرد‌های جدید شركت گیگابایت كه بر‌اساس فن آوری UD به بازار ارائه می‌شوند، همگی مجهز به خازن‌های جامدی هستند که توسط بهترین شرکت های ژاپنی تولید شده اند. این خازن‌ها كه 50 هزار ساعت عمر مفید دارند باعث افزایش ثبات و اطمینان سیستم و ماندگاری مادربرد در شرایط سخت كاری می‌شود. این عوامل باعث می شوند تا شما بتوانید از جدیدترین و قدرتمندترین پردازنده ها و قطعات روی سیستم خود اسفاده کنید و سنگین ترین برنامه ها و بازی ها را با آن اجرا کنید. *50000 ساعت عمر مفید خازن ها در دمای 85 درجه سانتیگراد اندازه گیری شده است
* کلیه موارد ارایه شده در این صفحه تنها مربوط به نوع مرجع می باشد.‎ گیگابایت حق تغییر یا تجدید نظر محتویات را در هر لحظه و بدون اطلاع قبلی دارد.‎
* کارایی ارایه شده بر اساس مقادیر حداکثر نظری رابط است که توسط فروشنده چیپ ست یا سازمان هایی که مشخصات رابط را تعیین کردند، ارائه شده است.‎ کارایی واقعی ممکن است بنا بر پیکربندی سیستم متفاوت باشد.‎
* کلیه لوگو ها و آرم های ثبت شده تحت مالکیت مالکین مربوطه آن ها قرار دارد.‎
* با توجه به معماری استاندارد رایانه های شخصی، مقدار مشخصی از حافظه جهت استفاده درونی سیستم درنظر گرفته می شود و طبیعتا مقدار واقعی حافظه سیستم کم تر از مقدار اظهار شده خواهد بود.‎
