• Supports 7th / 6th Generation Intel® Core™ Processors
  • Dual Channel DDR4 SO-DIMM, 2 DIMMs
  • 2 x RS232/422/485, 2 x RS232, Digital I/O 4-in/4-out
  • Mini-PCIe Slot for Full/ Half-Height WIFI Card Support
  • Mini-PCIe Dual Purpose Slot for mSATA SSD Support
  • LVDS Header for System Integrated Flat Panel Display Support
  • Rear Panel DisplayPort, HDMI 1.4 Ports & D-sub Header for Multi-Display Connection
  • Amplified Speaker Header Able to Drive Up to 3W System Integrated Speaker
  • Dual Intel® GbE LAN for WOL and PXE Support
  • Features 4 USB 3.0 and 4 USB 2.0 Ports
  • GIGABYTE UEFI DualBIOS™ Technology

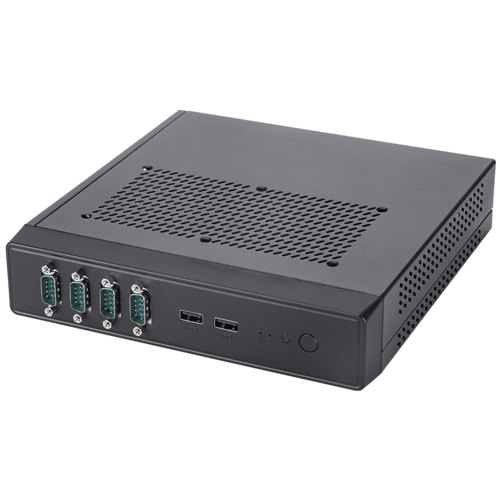

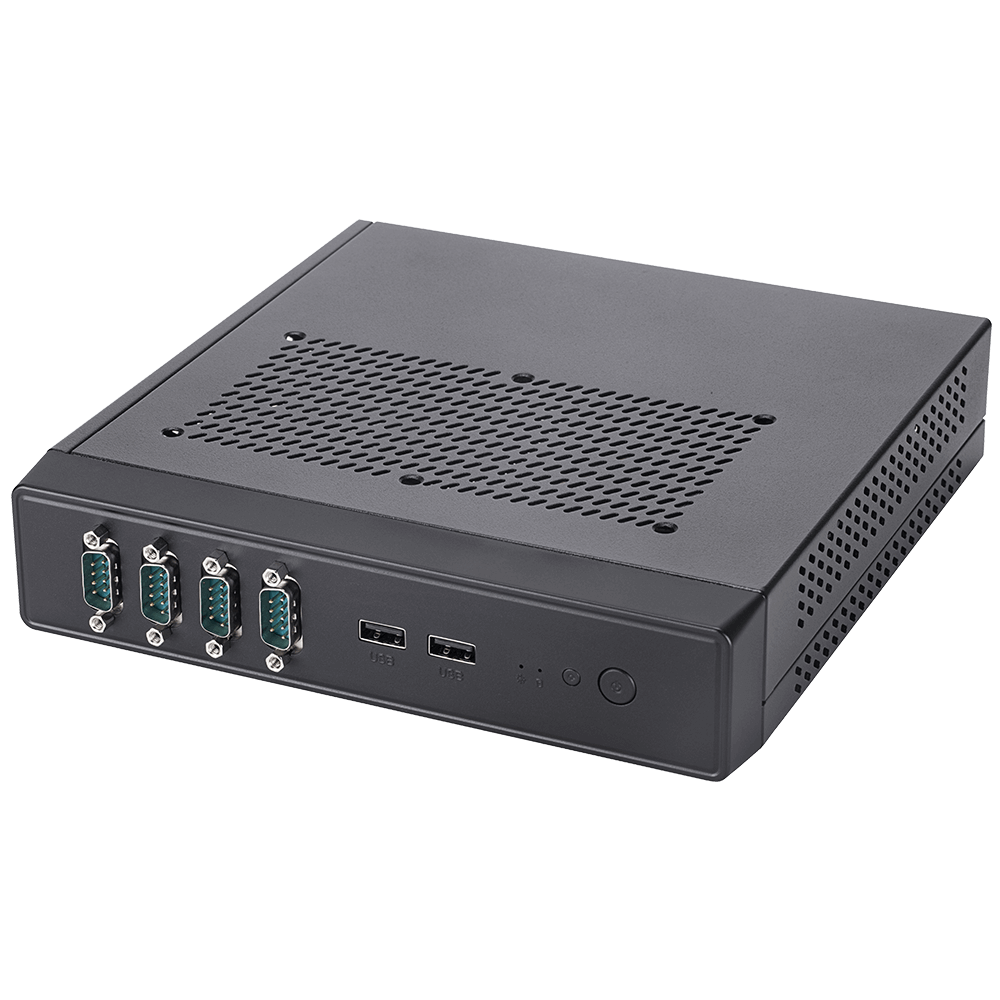

  • Small chassis 205 mm(L) x 205 mm(W) x 45 mm(H) with 12/19~24V DC-In Power Design

* Self Assembly Required
  • Compatible with GIGABYTE Thin mini ITX Chassis






  • GIGABYTE Ultra Durable of Mini-ITX Motherboard
    GIGABYTE H110 Thin Mini-ITX motherboards support the latest 6th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build. Offering an All-in-One, small form factor and slim profile PC experience, GIGABYTE H110 Thin Mini-ITX motherboards are 43% thinner than traditional Mini-ITX designs. Complying with the latest Thin Mini-ITX guidelines, GIGABYTE motherboards offer additional flexibility making them suited to broad range of innovative PC designs.
  • Dual Intel® GbE LAN with cFosSpeed
    The Dual Intel® Gigabit LAN with cFosSpeed features advanced technology to help deliver better network responsiveness in crowded LAN environments and allows optimization and improved network performance for specific applications, making it a popular choice amongst gamers.
    Dual Intel® GbE LAN with WOL and PXE Support

  • High Definition Digital Outputs
    Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.
     * Support for up to 2 displays at the same time.
    High Definition Digital Outputs
  • 4K Ultra HD Support
    4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.



  • HDMI™-The Next Generation Multimedia Interface
    HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
  • Display Port Support
    Selected GIGABYTE motherboards feature DisplayPort, a next generation graphics display interface that delivers up to 10.8 Gbps of bandwidth over standard cables, providing billions of colors with the fastest refresh rates and the greatest color depths.
  • USB 3.0 Ports Onboard
    With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users legacy USB 2.0 devices will still work.


    * USB 3.0 10x performance is a maximum theoretical value.
    Actual performance may vary by system configuration.
    USB 3.0 Ports Onboard
  • Ferrite core chokes comprised of a compound of iron oxide and other metal elements whose properties hold energy much longer than common iron core at high frequency.

    Low Power Loss

    Low Power Loss - Ferrite Core Choke Design
  • GIGABYTE Patented DualBIOS™ (UEFI) Design
    GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.
    DualBIOS™ ‏(UEFI)‏ Design
  • 2x Copper PCB Design (2 oz Copper PCB)
    GIGABYTE’s exclusive 2X Copper PCB design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.


    2‎x Copper PCB Design ‏(2 oz Copper PCB)‏
  • INTEL® SMALL BUSINESS BASICS
    With 6th Generation Intel® Core™ Processor
    Security and Productivity Solution with built in IT
    New compelling usages in one intuitive Customizable UI
    INTEL® SMALL BUSINESS BASICS
