• Supports 6th Generation Intel® Core™ Processor
  • Dual Channel DDR4 SO-DIMM, 2 DIMMs
  • Mini-PCIe Slot for Full/ Half-Height WIFI Card Support
  • Mini-PCIe Dual Purpose Slot for mSATA SSD Support
  • LVDS Header for System Integrated Flat Panel Display Support
  • Rear Panel DisplayPort, HDMI 1.4 Ports for Multi-Display Connection
  • Amplified Speaker Header Able to Drive Up to 3W System Integrated Speaker
  • Intel® GbE LAN for WOL and PXE Support
  • Features 4 USB 3.0 and 4 USB 2.0 Ports
  • GIGABYTE UEFI DualBIOS™ Technology
  • Thin Mini-ITX 170x170mm Form Factor with 12/19~24V DC-In Power Design
  • GIGABYTE Ultra Durable of Mini-ITX Motherboard

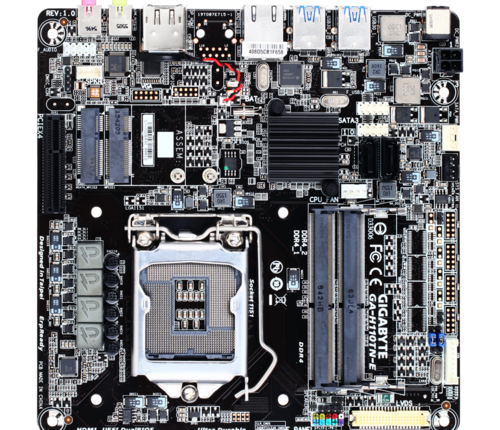

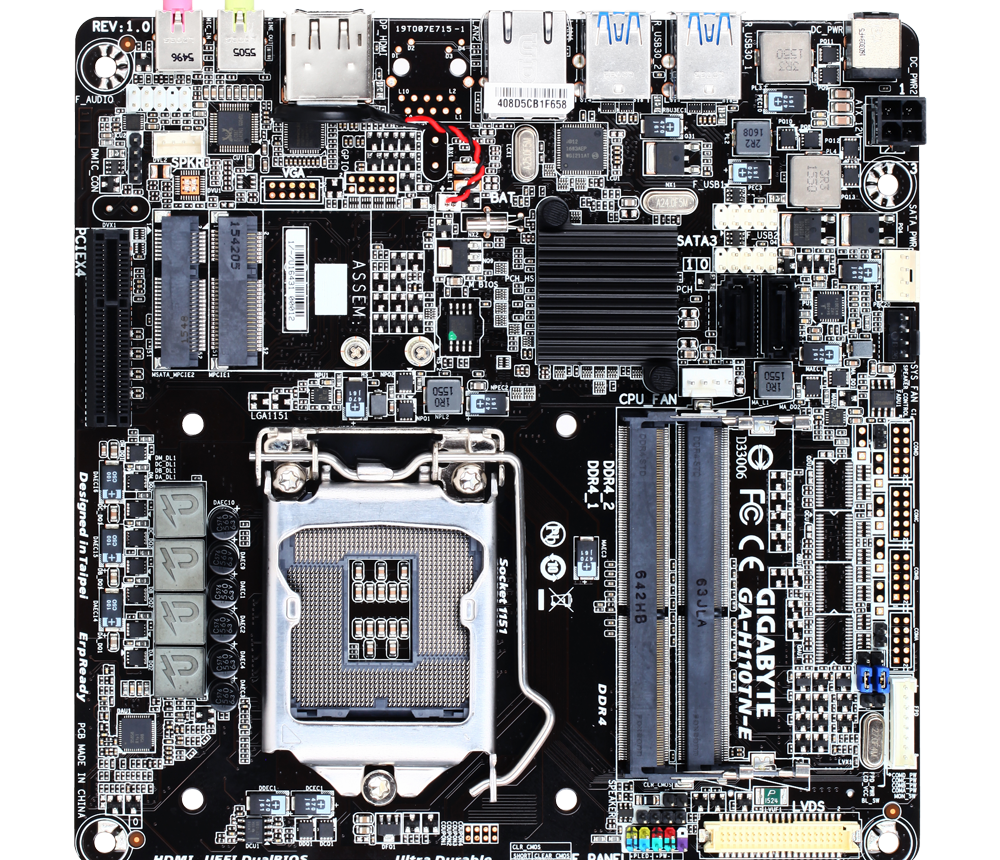

    GIGABYTE H110 Thin Mini-ITX motherboards support the latest 6th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build. Offering an All-in-One, small form factor and slim profile PC experience, GIGABYTE H110 Thin Mini-ITX motherboards are 43% thinner than traditional Mini-ITX designs. Complying with the latest Thin Mini-ITX guidelines, GIGABYTE motherboards offer additional flexibility making them suited to broad range of innovative PC designs.
  • Intel® GbE LAN with WOL and PXE Support
    Intel® Gigabit LAN with WOL and PXE support, deliver better network responsiveness and conveniently user experience in crowded LAN environments, to offer hassle free and high speed network connectivity.
    Intel® GbE LAN with WOL and PXE Support

  • High Definition Digital Outputs
    Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.
  • 4‎K Ultra HD Support
    4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.
  • HDMI™-The Next Generation Multimedia Interface
    HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
  • پشتیبانی از Display Port
    مادربردهای گیگابایت مجهز به جدیدترین نسل رابط های تصویری یعنی Display Port هستند. این رابط ارائه دهنده 10.8 گیگابیت در ثانیه پهنای باند به وسیله یک کابل استاندارد است. این رابط ارائه دهنده میلیارها رنگ، بالاترین سرعت نرخ بازیابی اطلاعات و بیشترین عمق رنگ است.
  • USB 3.0 Ports Onboard
    With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users legacy USB 2.0 devices will still work.


    * USB 3.0 10x performance is a maximum theoretical value.
    Actual performance may vary by system configuration.
    USB 3.0 Ports Onboard
  • Low Power Loss - Ferrite Core Choke Design
    Ferrite core chokes comprised of a compound of iron oxide and other metal elements whose properties hold energy much longer than common iron core at high frequency.

    Low Power Loss

    Low Power Loss - Ferrite Core Choke Design
  • GIGABYTE Patented DualBIOS™ (UEFI) Design
    GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.
  • 2x Copper PCB Design (2 oz Copper PCB)
    GIGABYTE’s exclusive 2X Copper PCB design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.


  • INTEL® SMALL BUSINESS BASICS
    With 6th Generation Intel® Core™ Processor
    Security and Productivity Solution with built in IT
    New compelling usages in one intuitive Customizable UI


* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* کلیه موارد ارایه شده در این صفحه تنها مربوط به نوع مرجع می باشد. گیگابایت حق تغییر یا تجدید نظر محتویات را در هر لحظه و بدون اطلاع قبلی دارد.
* کارایی ارایه شده بر اساس مقادیر حداکثر نظری رابط است که توسط فروشنده چیپ ست یا سازمان هایی که مشخصات رابط را تعیین کردند، ارائه شده است. کارایی واقعی ممکن است بنا بر پیکربندی سیستم متفاوت باشد.
* کلیه لوگو ها و آرم های ثبت شده تحت مالکیت مالکین مربوطه آن ها قرار دارد.
* با توجه به معماری استاندارد رایانه های شخصی، مقدار مشخصی از حافظه جهت استفاده درونی سیستم درنظر گرفته می شود و طبیعتا مقدار واقعی حافظه سیستم کم تر از مقدار اظهار شده خواهد بود.
