  1. Supports AMD AM3 Phenom II/ Phenom/ Athlon series processors
  2. Solid capacitors design for CPU VRM
  3. Dual Channel DDR2 1066 for outstanding system performance
  4. Integrated NVIDIA CineFX 3.0 graphics
  5. Ultimate graphics performance with PCI-E x16 interface
  6. Integrated SATA 3Gb/s with RAID function
  7. Features high speed 10/100 Ethernet connection
  8. Integrated 6/8-Channel High Definition audio
  • Introduction

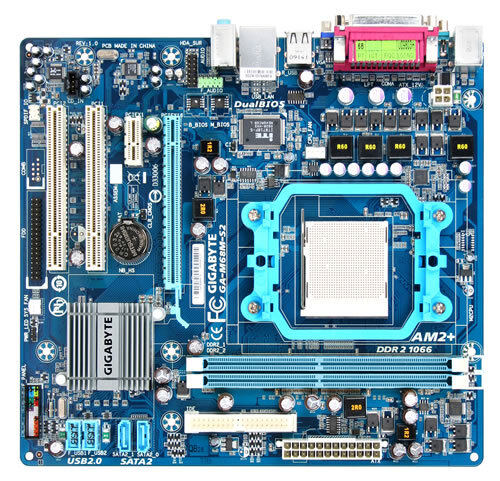

    GIGABYTE Technology latest S series motherboards for AMD, features Gigabyte's latest design innovations; Smart and Safe Technologies. The new S series motherboard, GA-M68M-S2, has dual channel DDR2 1066MHz supporting high frequency memories provides reliable and user friendly computing by easily reaching maximum system performance via personalized software settings. GIGABYTE S series motherboards, the champion's choice for the latest AMD platform!
  • Supports next generation of 45nm AMD AM3 CPU
    This motherboard designs with Split Power Plane, 3+1 phase VRM to support AMD the latest 45nm AM3 Phenom™II series processors, delivering the great performance enchantment to system and ultimate scalability hardware expending.
    (Note) If you install AMD AM2+ CPU on AM2 motherbord, the system bus speed will downgrade from HT3.0(5200MHz) to HT1.0(2000 MT/s) spec; however, the frequency of AM2+ CPU will not be impacted. Please refer "CPU Support List" for more information.
  • Smart
    The Smart featured motherboards of GIGABYTE S-series provide GIGABYTE proprietary innovative software such as Download Center, @BIOS, Q-Flash, Xpress Install, Boot menu, and Smart Fan. BIOS and driver management now becomes much easier and user friendly through GIGABYTE Smart features!...more
  • Safe
    Safe is the key feature of GIGABYTE S-series motherboards with the following elements: Excellent hardware design, reinforced BIOS protection through GIGABYTE Virtual Dual BIOS Technology and GIGABYTE BIOS Setting Recovery Technology. Unique system software such as Xpress Recovery 2, PC Health Monitor, HDD S.M.A.R.T., and C.O.M. further strengthen the stability and reliability of your PC!...more
  • NVIDIA GeForce 7025 / NVIDIA nForce 630a GPU
    The brand new NVIDIA® GeForce 6100 / NVIDIA® nForce 430GPU features CineFX™ 3.0 Engine. This unique combination of 6100 GPU creates a single motherboard featuring a world-class DX9, Shader Model 3.0 GPU for faster and smoother game-play, a high quality video processing engine for advance quality of video and DVD playback.
  • PCI Express Interface
    Revolutionary PCI Express interface provides scalable bandwidth for multi-purpose usage. PCI-E x16 interface doubles the bandwidth of graphics interface of previous generation thus delivering the utmost gaming experience. PCI-E x1interface provides twice the bandwidth of PCI interface up to 250MB/s for new generation I/O peripheral devices.
  • Dual Channel DDR2 1066* MHz
    Experience the advanced technology of DDR2 1066* memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications.
    * DDR2 1066 is supported with combination of AM2+ processors and DDR2 1066 memory modules, please refer "Memory Support List" for detail memory support information.
  • SATA 3Gb/s & RAID
    This platform supports reliable storage solution for enhanced data protection and data accessing performance. Serial ATA 3Gb/s is firstly introduced in this platform to provide blazingly 3Gb/s bus bandwidth thus higher disk performance. The NVIDIA® RAID allows multi-disk designs to be set up as RAID 0, 1, based on users' priority of protection/ performance. This NVIDIA RAID function makes the RAID even more accessible by introducing the innovative windows-based facility.
  • High Definition Audio
    Experience home theater-quality sound with your PC using High Definition Audio for enhanced multi-channel audio, improved voice and communication input, and multi-streaming capability.
  • بایوس دوگانه انحصاری با حفاظت بایوس دوگانه سخت افزاری
    بایوس دوگانه یکی از تکنولوژی های انحصاری گیگابایت است که به صورت خودکار در زمان خرابی احتمالی بایوس اصلی اطلاعات را بازیابی می کند و از پاک شدن آنها جلوگیری می کند. بواسطه وجود دو ROM بایوس فیزیکی مجتمع آنبرد، تکنولوژی بایوس دوگانه گیگابایت می تواند به سرعت و به راحتی اطلاعات بایوس صدمه دیده را بازیابی کند و یا اطلاعات را از بایوس ویروسی شده به بایوس جایگزین انتقال دهد.
  • Windows® 7 WHQL Certified
    The motherboard has obtained WHQL (Windows Hardware Quality Labs) certification for Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more
* کلیه موارد ارایه شده در این صفحه تنها مربوط به نوع مرجع می باشد.‎ گیگابایت حق تغییر یا تجدید نظر محتویات را در هر لحظه و بدون اطلاع قبلی دارد.‎
* کارایی ارایه شده بر اساس مقادیر حداکثر نظری رابط است که توسط فروشنده چیپ ست یا سازمان هایی که مشخصات رابط را تعیین کردند، ارائه شده است.‎ کارایی واقعی ممکن است بنا بر پیکربندی سیستم متفاوت باشد.‎
* کلیه لوگو ها و آرم های ثبت شده تحت مالکیت مالکین مربوطه آن ها قرار دارد.‎
* با توجه به معماری استاندارد رایانه های شخصی، مقدار مشخصی از حافظه جهت استفاده درونی سیستم درنظر گرفته می شود و طبیعتا مقدار واقعی حافظه سیستم کم تر از مقدار اظهار شده خواهد بود.‎
