1. Supports AMD Athlon™64 X2/ Athlon™64 Socket AM2 platform
  2. Dual-Channel DDR2 800 for outstanding system performance
  3. Integrated ATI™ Radeon™ X1250-based graphics
  4. Dual PCI-E graphics interfaces to support ATI CrossFire technology
  5. Integrated SATA 3Gb/s with RAID function
  6. Features high speed Gigabit Ethernet and IEEE 1394
  7. Integrated ALC889A 8-Channel High Definition audio with 106 dB Signal to Noise ratio, fully support Blu-ray/ HD DVD playback
  8. Integrated HDMI interface with HDCP
  9. Supports Windows Vista Premium
  • Introduction

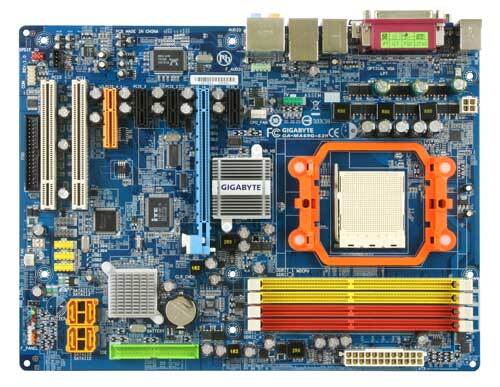

    GIGABYTE Technology latest S series motherboards for AMD socket AM2 platform, featuring with innovative features- Safe, Smart, Speed Technologies. The new S series motherboards GA-MA69G-S3H; supporting AMD new generation AM2 processor with dual channel DDR2 800MHz high frequency memories, providing reliable and user friendly computing and reaching the maximum system performance easily via personalized software settings. GIGABYTE S series motherboards, the champion's choice for AMD Socket AM2 platform!
  • AMD Phenom™ Processors Support
    The AMD Phenom™ processors are an ideal choice for multi-media enthusiasts and intensive multi-tasking environments to offer significant performance boosts and provides an overall more energy efficient platform.
  • Speed
    The Speed compliant motherboards of GIGABYTE S series provide intelligent over-clocking and over-voltage software settings through the well known EasyTune5, R.G.B. and & M.I.T. utilities!...more
  • Smart
    The Smart featured motherboards of GIGABYTE S series provide GIGABYTE proprietary innovative software such as Download Center, @BIOS, Q-Flash, Xpress Install, Boot menu, and Smart Fan. BIOS and driver management now becomes much easier and user friendly through GIGABYTE Smart features!...more
  • Safe
    Safe is the key feature of GIGABYTE S series motherboards with the following elements: Excellent hardware design, reinforced BIOS protection through GIGABYTE Virtual Dual BIOS Technology and GIGABYTE BIOS Setting Recovery Technology. Unique system software such as Xpress Recovery 2, PC Health Monitor, HDD S.M.A.R.T., and C.O.M. further strengthen the stability and reliability of your PC!...more
  • پردازنده‌هاي AMD Athlon 64FX/ 64 X2/ 64/ Sempron
    کارایی بالا و تکنولوژی غیر خطی پردازنده های سری AMD Athlon 64 با سوکت AM2 باعث شده است که پیکره نام آشنا و قدرتمندی تحت عنوان AMD64 به وجود آید که شامل پلاتفورم محاسباتی 64 بیتی، تکنولوژی HyperTransport، و کنترل کننده حافظه مجتمع می شود. جدیدترین پردازنده های Athlon 64 با سوکت AM2 ارائه دهنده قدرت بالا و توانایی انجام کارهای چند منظوره هستند و گزینه مناسبی برای کامپیوترهای رومیزی هستند که برنامه های مهم تجارتی و بازرگانی بر روی آنها اجرا می شوند.
  • AMD 690G Chipset
    The brand new AMD 690G chipset features ATI™ Radeon™ X1250-based graphics architecture. This unique combination of Integrated Graphics Processor (IGP) creates a single motherboard featuring a world-class DX9, Pixel Shader V2.0, ATI™ Avivo Technology, ATI™ SurroundView™ Technology for faster and smoother game-play, a high quality video processing engine for advance quality of video and DVD playback.
  • Dual Channel DDR2 800
    Experience the advanced technology of DDR2 800 memory by overclocking, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications.
    * Please refer "Memory Support List" for memory support information
  • درگاه PCI Express
    Revolutionary PCI Express interface provides scalable bandwidth for multi-purpose usage. PCI-E x16 interface delivers the utmost graphics experience; PCI-E x1interface delivers twice the bandwidth.
  • پشتيباني از ATI Cross Fire
    With support for ATI CrossFire, GIGABYTE pushes the envelope once again by delivering highly optimized performance and flexibility demanded by power users and extreme gaming enthusiasts. Designed to provide unmatched multi-GPU support with dual PCI Express connectivity, the GA-965G-DS4 allows users to take advantage of the ultra smooth 3D rendering, blazing-fast frame rates and enhanced visual quality possible with a dual graphics card solution.

    Attention: When attempting to enable ATI Crossfire Technology on this board. In case of unable to get Crossfire Technology working normally, please make sure to use ATI graphic cards that have hardware Crossfire bridge. (Please refer to ATI official website for more Crossfire Technology supporting details: http://ati.amd.com/technology/crossfire/charts.html)
  • HDMI Interface
    HDMI (High Definition Multimedia Interface) درگاهی است که امکان انتقال اطلاعات تصویری بیش از 5 گیگابیت در ثانیه را همراه با صدای با کیفیت بسیار بالا تنها از طریق یک کابل فراهم می‌کند. با وجود این درگاه امکان بازگشایی کردن و انتقال داده های صوتی با کیفیت بالا و تصاویر دیجیتالی با کیفیت 1080pبه صورت غیر فشرده در روی یک کابل فراهم شده است بدون آن که کیفیت صدا و تصویر بر اثر تبدیل دیجیتال به آنالوگ کاهش پیدا کند. به علاوه اینکه HDMI با HDCP (محافظ محتوای دیجیتال در پهنای باند بالا) سازگار است. همچنین قادر به پخش Blu-ray/HD DVD و دیگر محتواهای رسانه ای محافظت شده می باشد.
  • ALC889A Enables a Superior Audio Experience

    Excellent Audio Performance
    High-performance DAC (Digital-Analog Converter) with 106 dB Signal-to-Noise ratio playback quality, designed especially for Windows Vista Premium PCs.



    Blu-ray/HD DVD Full Rate Audio Support
    The ALC889A enables high quality Full Rate Lossless Audio for content protected media and support for both Blu-ray and HD DVD formats for an exhilarating home theater entertainment experience.

    7.1+2 Channel High Definition Output
    The ALC889A provides support for 7.1 sound playback, plus 2 channels of independent stereo output (multiple streaming) through the front panel stereo outputs.
  • اتصال LAN گیگابیت
    رابط شبکه گیگابیت ارائه دهنده یک اتصال LAN پر سرعت با سرعت انتقال داده برابر با 1000Mb/s است که یک نسل جدید در پهنای باند اتصال ها به شمار می رود. اتصال LAN گیگابیت یک گزینه مناسب برای اتصال اینترنتی یکپارچه مثل محتویات صوتی و تصویری جریانی به شمار می رود.
  • SATA 3Gb/s & RAID
    This platform supports reliable storage solution for enhanced data protection and data accessing performance. Serial ATA 3Gb/s is firstly introduced in this platform to provide blazingly 3Gb/s bus bandwidth thus higher disk performance. The NVIDIA® RAID allows multi-disk designs to be set up as RAID 0, 1, based on users' priority of protection/ performance. This NVIDIA RAID function makes the RAID even more accessible by introducing the innovative windows-based facility.
  • IEEE1394 پشتيباني از
    This motherboard with IEEE1394 FireWire interface from Texas Instruments (TI). With the transfer speed up to 400Mb/s, the new generation IEEE1394 interface further enhances PC connectivity with consumer electronics audio/video.

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* کلیه موارد ارایه شده در این صفحه تنها مربوط به نوع مرجع می باشد. گیگابایت حق تغییر یا تجدید نظر محتویات را در هر لحظه و بدون اطلاع قبلی دارد.
* کارایی ارایه شده بر اساس مقادیر حداکثر نظری رابط است که توسط فروشنده چیپ ست یا سازمان هایی که مشخصات رابط را تعیین کردند، ارائه شده است. کارایی واقعی ممکن است بنا بر پیکربندی سیستم متفاوت باشد.
* کلیه لوگو ها و آرم های ثبت شده تحت مالکیت مالکین مربوطه آن ها قرار دارد.
* با توجه به معماری استاندارد رایانه های شخصی، مقدار مشخصی از حافظه جهت استفاده درونی سیستم درنظر گرفته می شود و طبیعتا مقدار واقعی حافظه سیستم کم تر از مقدار اظهار شده خواهد بود.
