  1. Supports AMD AM3 Phenom II/ Phenom/ Athlon series processors
  2. Solid capacitors design for CPU VRM
  3. Dual Channel DDR2 1066 for outstanding system performance
  4. Integrated ATI Radeon 2100 graphics
  5. Ultimate graphics performance with PCI-Ex16 interface
  6. Integrated 6/8 Channel High Definition audio
  7. Integrated DVI interface with HDCP support
  8. Patented DualBIOS with dual hardware BIOS protection
  9. Compatible with Windows 7 to deliver the best operation experience
Note:
* If you install AMD AM3/ AM2+ CPU on AM2 motherboard, the system bus speed will downgrade from HT3.0 (5200MT/s) to HT1.0 (2000 MT/s) spec; however, the frequency of AM3/ AM2+ CPU will not be impacted. Please refer "CPU Support List" for more information.
* DDR2 1066 is supported with combination of AM3/ AM2+ processors and qualified memory modules, please refer "Memory Support List" for detail memory support information.
* To use 8-channel HD audio, please use the system case with HD audio front panel featured and see manual for detail configuration.
  • Get Ready to Unleash the Power of AMD 6-Core CPU
    GIGABYTE's AMD motherboards are ready to support the new generation of AMD Phenom™II X 6 processors, delivering the very best platform for multitasking, multimedia and high performance gaming.
  • پشتیبانی از فن آوری On/Off Charge
    فن آوری On/Off Charge گیگابایت باعث می شود که ابزارهای iPhone، iPad و iPod Touch در هنگام اتصال به رایانه با سرعت بیشتری شارژ شوند. این فن آوری به عنوان یکی از زیر شاخه های ویژگی 3x USB Power به حساب می آید و نسبت به درگاه های USB معمولی توان بیشتری را در اختیار ابزار اتصالی برای شارژ قرار می دهد. به این ترتیب iPhone، iPad یا iPod Touch شما باسرعت بیشتری شارژ خواهد شد. علاوه بر این اگر رایانه شما در حالت standby یا حتی خاموش باشد نیز عملیات شارژ قطع نخواهد شد.more
    * با توجه به محدودیت هایی که در برخی گوشی های تلفن همراه وجود دارد، ممکن است نیاز باشد تلفن همراه خود را قبل از ورود رایانه به حالت S4/S5 به آن متصل کنید. تنها در این صورت است که عملیات شارژ سریع از طریق یک درگاه USB فاقد قابلیت On/Off Charge فعال می شود. نتایج عملیات شارژ ممکن است با توجه به نوع و مدل گوشی های تلفن همراه متفاوت باشد.
    On/Off Charge Driver download
  • Introduction

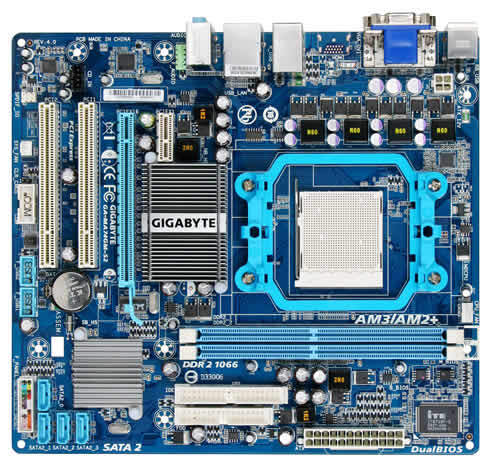

    The GA-MA74GM-S2 offers high performance platform based on AMD 740G Chipset and supports the latest 45nm AMD AM3 processors, dual channel DDR2 memories, providing reliable and user friendly computing and reaching the maximum system performance easily via personalized software settings. In addition, GA-MA74GM-S2 features with two innovative S features- Safe, Smart technologies, further providing reliable and user friendly computing and reaching the maximum system performance easily via personalized software settings. GIGABYTE S series motherboards, the champion’s choice for AMD AM2 platform!
  • Supports next generation of 45nm AMD AM3 CPU
    This motherboard designs with Split Power Plane, 3+1 phase VRM to support AMD the latest 45nm AM3 Phenom™II series processors, delivering the great performance enchantment to system and ultimate scalability hardware expending.
  • AMD AM2+ CPU Support
    The AMD AM2+ Phenom™ processors are an ideal choice for multi-media enthusiasts and intensive multi-tasking environments to offer significant performance boosts and provides an overall more energy efficient platform.
    (Note) If you install AMD AM3/ AM2+ CPU on AM2 motherboard, the system bus speed will downgrade from HT3.0 (5200MT/s) to HT1.0 (2000 MT/s) spec; however, the frequency of AM3/ AM2+ CPU will not be impacted. Please refer "CPU Support List" for more information.
  • EC AOD-ACC Support
    EC AOD-ACC is described as Embedded Controller for AMD OverDrive- Advanced Clock Calibration, which is the newest feature comes from AMD SB750/ SB710 SouthBridge chip, destined for the AMD Black Edition CPU to overclock through BIOS setting or AMD OverDrive™ utility further than was previously possible.
    * Please be noticed that GIGABYTE’s product warranty does not cover damages caused by overclocking.
  • Solid Capacitor for CPU VRM
    Stable system operation depends upon the quality of CPU VRM (voltage regulator module). GIGABYTE adopts Conductive Polymer Aluminum Solid Capacitors for CPU VRM to ensure a longer lifespan for systems in daily operation and boost system stability under extreme conditions. CPU VRM with Solid Capacitors featuring better electronic conductivity, excellent heat resistance enhances system durability even operating in high temperature environment.
  • AMD 740G Chipset
    The AMD 740G chipset features ATI Radeon™ HD 2100-based graphics architecture. This unique combination of Integrated Graphics Processor (IGP) creates a single motherboard featuring a world-class DX9, Pixel Shader 2.0, ATI Avivo Technology, ATI SurroundView™ Technology for faster and smoother game-play, a high quality video processing engine for advance quality of video and DVD playback.
  • Dual Channel DDR2 1066 MHz
    Experience the advanced technology of DDR2 1066 memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications.
    * DDR2 1066 is supported with combination of AM3/ AM2+ processors and qualified memory modules, please refer "Memory Support List" for detail memory support information.
  • PCI Express Interface
    Revolutionary PCI Express interface provides scalable bandwidth for multi-purpose usage. PCI-E x16 interface doubles the bandwidth of graphics interface of previous generation thus delivering the utmost gaming experience. PCI-E x1interface provides twice the bandwidth of PCI interface up to 250MB/s for new generation I/O peripheral devices.
  • High Definition Audio
    Experience home theater-quality sound with your PC using High Definition Audio for enhanced 6/ 8-channel* audio, improved voice and communication input, and multi-streaming capability.
    * To use 8-channel HD audio, please use the system case with HD audio front panel featured and see manual for detail configuration.
  • SATA 3Gb/s storage interface
    The SATA specification doubles bus bandwidth from 1.5Gb/s to 3Gb/s. Native Command Queuing is a new specification that enables out-of-order execution of commands for efficient retrieval of data. Hot Plug support allows users to insert and remove hard disk drives without shutting off power to the system.
  • اتصال LAN گیگابیت
    رابط شبکه گیگابیت ارائه دهنده یک اتصال LAN پر سرعت با سرعت انتقال داده برابر با 1000Mb/s است که یک نسل جدید در پهنای باند اتصال ها به شمار می رود. اتصال LAN گیگابیت یک گزینه مناسب برای اتصال اینترنتی یکپارچه مثل محتویات صوتی و تصویری جریانی به شمار می رود.
  • Smart
    The Smart featured motherboards of GIGABYTE S series provide GIGABYTE proprietary innovative software such as Download Center, @BIOS, Q-Flash, Xpress Install, Boot menu, and Smart Fan. BIOS and driver management now becomes much easier and user friendly through GIGABYTE Smart features!...more
  • Safe
    Safe is the key feature of GIGABYTE S series motherboards with the following elements: Excellent hardware design, reinforced BIOS protection through GIGABYTE Virtual Dual BIOS Technology and GIGABYTE BIOS Setting Recovery Technology. Unique system software such as Xpress Recovery 2, PC Health Monitor, HDD S.M.A.R.T., and C.O.M. further strengthen the stability and reliability of your PC!...more
  • Windows® 7 WHQL Certified
    The motherboard has obtained WHQL (Windows Hardware Quality Labs) certification for Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more
* کلیه موارد ارایه شده در این صفحه تنها مربوط به نوع مرجع می باشد.‎ گیگابایت حق تغییر یا تجدید نظر محتویات را در هر لحظه و بدون اطلاع قبلی دارد.‎
* کارایی ارایه شده بر اساس مقادیر حداکثر نظری رابط است که توسط فروشنده چیپ ست یا سازمان هایی که مشخصات رابط را تعیین کردند، ارائه شده است.‎ کارایی واقعی ممکن است بنا بر پیکربندی سیستم متفاوت باشد.‎
* کلیه لوگو ها و آرم های ثبت شده تحت مالکیت مالکین مربوطه آن ها قرار دارد.‎
* با توجه به معماری استاندارد رایانه های شخصی، مقدار مشخصی از حافظه جهت استفاده درونی سیستم درنظر گرفته می شود و طبیعتا مقدار واقعی حافظه سیستم کم تر از مقدار اظهار شده خواهد بود.‎
