1. Supports Intel Core™ 2 Quad/ Core™ 2 Duo processors
  2. Dual Channel DDR2 800 for outstanding system performance
  3. Ultimate graphics performance with 3 PCI-E x16 interface
  4. Integrated SATA 3Gb/s with RAID function
  5. Features high speed Gigabit Ethernet and IEEE1394
  6. Integrated 8-Channel High Definition audio
  7. Quad BIOS solution for Multiple protection
  8. Unique cooling design with Crazy Cool and Silent-Pipe
  9. Ultra durable motherboard with all solid capacitor design
  • Introduction

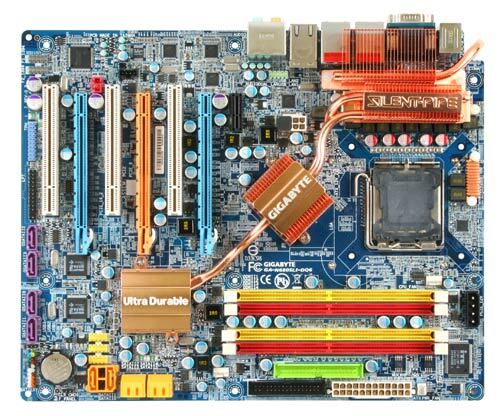

    Designed for enthusiasts with extreme over-clocking and blistering gaming performance in mind, the GIGABYTE GA-N680SLI-DQ6 features several next generation technologies including FSB1333 support and NVIDIA SLI-memory technology. Powered by the nForce® 680i chipset, the GA-N680SLI-DQ6 is SLI enabled with true dual PCI Express x16 connectivity for extreme gaming performance. Built tough to provide maximum stability, durability and performance for even the most hard-core gamers, the GA-N680SLI-DQ6 delivers several advanced GIGABYTE innovations including an all-solid capacitor design, Quad-Triple Phase power, Quad Gigabit LAN, Quad eSATA 3Gb/s with RAID functionality and Quad Cooling technologies.
  • Intel Next-Generation Core™2 Duo Processor
    Leading the silicon process technology from 90nm to 65nm, the Intel new-generation CPU transistors deliver more energy-efficient performance than anyone. Based on the Intel's next generation Micro Architecture, the Intel Core ™2 Duo processor with two cores and shared L2 caches provides the best capability-per-watt solutions. The cutting-edge processor the significant performance boosts and better energy efficient platform
  • Windows Vista Premium Logo Certified
    Windows Vista Premium promises to deliver a streamlined computing experience designed to fundamentally change how users view, find and organize their digital information. With GIGABYTE AM2+/ AM2 solutions enabling support for Vista Premium, GIGABYTE offers a fresh and unique desktop experience that will be more informative, intuitive and completely new....more
  • The Industry's Leading All-Solid Capacitor motherboard Design
    To ensure a longer operation life time for systems in daily operation and boost system stability under extreme conditions, this platform adopts cutting-edge Conductive Polymer Aluminum Solid Capacitors from the world's leading vendors. With these high-qualitycomponents , users can take advantage of better electronic conductivity and excellent heat resistance for enhanced system durability.
  • Quad-Core Optimized
    GIGABYTE has implemented optimized Quad-Core FSB routing and a Quad-Triple phase power design to ensure the highest levels of performance and stability from Quad-Core processors. With 4 cores and 2 shared L2 caches, Quad-Core processors provide the industry's best capability-per-watt solutions, delivering significant performance boosts and extended energy efficiency, making them the ideal choice for multi-media enthusiasts and intensive multi-tasking environments.
  • Quad SLI Ready
    Supporting NVIDIA Quad SLI™ technology, with true dual PCI Express x16 connectivity for up to 4 of the latest NVIDIA GeForce® 8800 GPUs, GIGABYTE Quad SLI ready motherboards provide flawlessly smooth 3D video rendering and screamingly-fast frame rates. With an additional PCI Express x8 expansion slot, users are able to add a standalone physics graphics processor for a significant boost of graphics performance, taking games to the next level of hyper-realist detail and effects.
  • Quad Gigabit LAN
    Four unique Gigabit LAN connections provide up to 4 x1GB of bandwidth usage, allowing the PC to function as both a home gateway and game server at the same time. Supporting NVIDIA Dual-Net Technology with NV TCP/IP Acceleration and FirstPacket technology, GIGABYTE Quad LAN with Teaming functionality enabled allows 2 sets of 2GB connections to each act as a single connection for twice the bandwidth, improving overall throughput with lower CPU utilization.
  • Quad-Triple Phase
    خصوصيت بي‌همتایي است كه فقط در مادربردهاي گيگابايت مي‌‌توانيد پيدا كنيد. اين طراحي بي‌نظير 12 فاز توان حقيقي براي پايداري توان و پشتيباني از پردازنده‌هاي موجود كه قادرند بار زيادي را پردازش كنند و يا به ميزان زيادي اوركلاك شوند بسيار مناسب است. در مجموع مدار توان سه فاز چهارگانه كمك به بهبود طول عمر پايداري اجزا سيستم به وسيله توليد درجه حرارت كمتر اجزا مي‌شود.
  • Quad BIOS
    خصوصيت Quad BIOS ويژگي منحصربه فرد شركت گيگابايت است كه شامل تكنولوژي DualBIOS و Express BIOS Rescue مي‌شود. اين تركيب مكانيزم امنيتي را فراهم مي‌كند كه كل 4 نسخه بايوس توزيع شده بين Flash Rom، هارد درايو و درايو CD را تحت پوشش قرار مي‌دهد. اين خصوصيت كمك مي كند تا حملات ويروسي يا صدمات Firmware كاهش پيدا كند و محافظت از چندين لايه بايوس فراهم شود. اين ويژگي منحصربه فرد سبب پايداري و اطمينان خاطر طولاني‌تر براي سيستم مي‌شود. How does Quad BIOS work?
  • Quad e-SATA
    Four sets of external SATA ports based on the Serial ATA 3Gb/s storage specification allow effortless sharing and transfer of entertainment content and digital media on external devices. Designed for external SATA devices, Quad eSATA2 delivers enhanced scalability and double the bus bandwidth for high-speed data retrieval and saving On-The-Go.
  • Silent Pipe2 + Crazy Cool2
    The newly designed Crazy Cool2 and Silent Pipe2 cooling technologies deliver a unique system of heatsinks covering the MOSFET modules, the north bridge as well as the south bridge that effectively dissipates heat without the use of fans. Featuring an all-new Heat pipe design, GIGABYTE Crazy Cool2 and Silent Pipe2 allow users to enjoy longer component lifetime through lower temperatures, added system stability and silent operation.
  • Dual Channel DDR2 800
    Experience the advanced technology of DDR2 800 memory by overclocking, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications.
    * Please refer "Memory Support List" for memory support information
  • SATA 3Gb/s storage interface
    در این نوع رابط SATA پهنای باند درگاه دو برابر شده و از 1.5Gb/s به 3Gb/s افزایش یافته است. در رابط SATA 3Gb/s پهنای باند افزایش پیدا کرده است و می توان چند ابزار را همزمان به آن متصل کرد در حالی که بیشترین کارایی را داشته باشند. همچنین میزان کش در پیکره بندی یک ابزار بیشتر خواهد بود.
  • IEEE1394 motherboard
    This motherboard with IEEE1394 FireWire interface from Texas Instruments (TI). With the transfer speed up to 400Mb/s, the new generation IEEE1394 interface further enhances PC connectivity with consumer electronics audio/video.
  • اتصال LAN گیگابیت
    رابط شبکه گیگابیت ارائه دهنده یک اتصال LAN پر سرعت با سرعت انتقال داده برابر با 1000Mb/s است که یک نسل جدید در پهنای باند اتصال ها به شمار می رود. اتصال LAN گیگابیت یک گزینه مناسب برای اتصال اینترنتی یکپارچه مثل محتویات صوتی و تصویری جریانی به شمار می رود.
  • Home theater Audio with Dolby and DTS support
    صداي دالبي و DTS اثرات صداي 8 كانال فراگير را فراهم مي‌كند و تجربه تجهيزات چندرسانه‌اي جذاب و خيلي طبيعي را براي بازي‌ها فيلم هاي DVD موسيقي و تلويزيون فراهم مي‌كند.
  • صدای با کیفیت بسیار بالای اینتل
    صدای با کیفیت بسیار بالای اینتل دارای یک خروجی صدای 8 کاناله دیجیتال است که ارائه دهنده یک صدای فراگیر و شفاف است. به علاوه، صدای HD اینتل ارائه دهنده صدای چند کاناله است که به واسطه این ویژگی شما می توانید در یک زمان دو خروجی مجزا از کامپیوتر خود بگیرید و صدای خروجی را در دو اتاق مجزا پخش کنید.
  • RoHS compliant
    As a member of the global community to look after the environment, Gigabyte complies with the European Union's Restriction of use of certain Hazardous Substances (RoHS) directive which limits the use of lead, mercury, cadmium and other hazardous substances in electronic products. From components and material selection to production processes, make up of accessories, packaging/color boxes etc; GIGABYTE has carefully examined and designed this product to be 100% RoHS compliant. GIGABYTE will continue to develop RoHS compliant PC components and commit valuable resources to promoting and advancing RoHS directive goals and objectives.

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* کلیه موارد ارایه شده در این صفحه تنها مربوط به نوع مرجع می باشد. گیگابایت حق تغییر یا تجدید نظر محتویات را در هر لحظه و بدون اطلاع قبلی دارد.
* کارایی ارایه شده بر اساس مقادیر حداکثر نظری رابط است که توسط فروشنده چیپ ست یا سازمان هایی که مشخصات رابط را تعیین کردند، ارائه شده است. کارایی واقعی ممکن است بنا بر پیکربندی سیستم متفاوت باشد.
* کلیه لوگو ها و آرم های ثبت شده تحت مالکیت مالکین مربوطه آن ها قرار دارد.
* با توجه به معماری استاندارد رایانه های شخصی، مقدار مشخصی از حافظه جهت استفاده درونی سیستم درنظر گرفته می شود و طبیعتا مقدار واقعی حافظه سیستم کم تر از مقدار اظهار شده خواهد بود.
