1. Ultra Durable 3 Technology with copper cooled quality for lower working temperature
  2. Supports newest NEC SuperSpeed USB 3.0 with superfast transfer rates of up to 5 Gbps
  3. 3X USB power delivery for greater compatibility and extra power for USB devices
  4. Provides newest Marvell SE9128 high speed SATA3 storage interface with superfast 6Gbps link speed
  5. Supports the newest Intel Core i 7 processors in socket LGA1366 with QPI 6.4 GT/s
  6. Revolution energy saving design with DES Advanced featuring hardware based Dynamic 6-Gear switching
  7. Supports 3 channel DDR3 2100+ memory
  8. Scalable ability to both 3 way CrossFireX and 3 way SLI support for ultimate graphics performance
  9. Advanced 24+2+2 power phase design with VRD 11.1 support
  10. New Hybrid Silent-Pipe 2 design provides unequalled heat conductivity
  11. Unique hardware control IC to provide more precision voltage control
  12. 100% 50,000 hour lifespan Japanese solid capacitors design
  13. Onboard Debug LED display simplifies motherboard troubleshooting
  14. Patented DualBIOS with dual hardware BIOS protection
  15. 2 Gigabit Ethernet LAN with Teaming functionality
  16. Supports Dolby Home Theater audio to create a stunning surround sound listening experience
  17. Power/reset/Clr CMOS onboard button for easily operation on the workbench
  18. Blu-ray playback outputs supported by high quality 18dB SNR ALC889 HD audio
  19. Compatible with Window 7 to deliver the best operation experience
  • The Overclocker Names GIGABYTE Motherboards Top in Power Efficiency and Performance
    "Gigabyte puts "durable" in the name of the motherboard and has designed its systems for higher efficiency to keep temperatures down. At 24 phases, the Gigabyte X58A-UD7 had the highest efficiency at overclocked current levels of 100A and above"
    "The best overclocking board, the Gigabyte X58A-UD5 turned out to be more stable with our processor at the highest speed measured, allowing for a 4.426GHz clock with air cooling. Overall, this board had a good showing in the transient testing, one of the highest efficiencies over the whole useful range, and gave the best overclocking results, so it is the clear winner of this test." To see issue 9 of the overclocker,
    please visit: (page 12-33): THE OVERCLOCKER MAG
  • Get Ready to Unleash the Power of 32nm 6 Core CPUs
    مادربردهای X58 گیگابایت کاملا آماده پشتیبانی از پردازنده های نسل جدید 32 نانومتری شش هسته ای اینتل هستند. این پیکره بندی کارایی فوق العاده ای برای انجام چند کار به صورت همزمان، اجرای نرم افزارهای چند رسانه ای و بازی های بسیار سنگین از خود ارائه می دهد.
  • Introduction
    USB 3.0 Motherboards

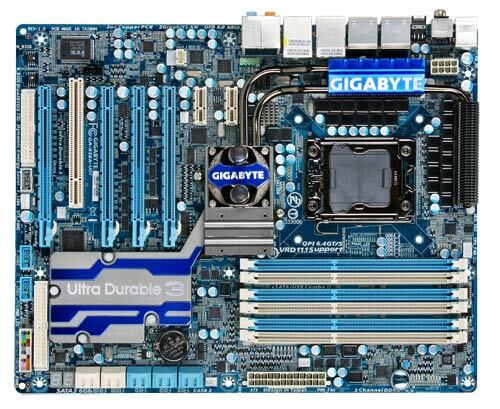

    Based on the Intel® X58 chipset, the GIGABYTE GA-X58A-UD7 delivers all the killer next generation features that gaming enthusiasts and power users have been waiting for including GIGABYTE's 333 Onboard Acceleration features with support for USB 3.0, Serial-ATA Revision 3.0 (6Gbps) and a 3x USB Power Boost, as well as multi-GPU support for NVIDIA 3-Way SLI™ and ATI CrossFireX™ and support for Intel's upcoming 32nm high performance processors offering a high level of future CPU headroom for users wanting to maintain cutting-edge levels of performance. With the memory controller integrated directly into the processor die, the GIGABYTE GA-X58A-UD7 also supports triple channel DDR3 memory for blazing fast memory performance.
  • Intel® Core™ i7 Processor and X58 Chipset support


    The GA-X58A-UD7 was designed specifically to take advantage of the raw power of the next generation Intel® Core™ i7 processors and the Intel® X58 Express chipset, whose new evolution in computing architecture is able to deliver an amazing performance break through from past processor generations. Replacing the Front Side Bus is the new Quick Path Interconnect, or QPI, whose 25.6 GB/sec transfer rates (double the bandwidth of the 1600MHz FSB) eliminates the communication bottleneck between the processor and chipset.
  • USB 3.0 Support
    مادربردهای سری AMD 700A گیگابایت از آخرین نسل درگاه USB یعنی تکنولوژی SuperSpeed USB 3.0 پشتیبانی می کنند و این پشتیبانی از طریق کنترل کننده میزبان NEC uPD720200 آنبرد انجام می گیرد. با سرعت بالای انتقال داده ها تا مرز 5 گیگابیت در ثانیه، کابران می توانند سرعت 10 برابر سرعت انتقال داده ها در USB 2.0 را تجربه کنند. به علاوه، این درگاه جدید از ابزارهای USB 2.0 نیز پشتیبانی می کنند تا کاربران همچنان بتوانند از ابزارهای USB 2.0 قدیمی خود نیز استفاده کنند. تکنولوژی NEC SuperSpeed USB 3.0 آنبرد همچنین ارائه دهنده مدیریت جدیدی در مصرف توان است و این توانایی را دارد که حداکثر میزان توان ممکن را در اختیار ابزارها قرار دهد و پشتیبانی کاملی از ابزارهای پر مصرف به عمل آورد.

    * کارایی 10 برابر USB 3.0 یک مقدار حداکثر نظری است. کارایی واقعی ممکن است با توجه به پیکره بندی سیتم متفاوت باشد
  • SATA 6 Gbps Support
    Yet another onboard feature of GIGABYTE motherboards are Marvell's SE9128 chips for high-speed SATA Revision 3.0 compatibility, delivering superfast 6Gbps link speeds for twice the data transfer rates of SATA Revision 2.0 (3 Gbps). When used in RAID 0 (Stripe) mode, GIGABYTE motherboards offer even faster data transfer rates of up to 4x the speed of current SATA interfaces.

    * SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.
    * SATA3 SSDs are not recommended for use in RAID 0 mode on Marvell SE9128 ports.
  • 3‎x USB Power Boost
    مادربردهای گیگابایت مجهز به 3x USB Power Boost هستند که به واسطه این ویژگی ارائه دهنده سازگاری بالا و توان اضافی برای ابزارهای USB هستند. طراحی توان USB منحصر به فرد گیگابایت این توانایی را دارد که ولتاژ خروجی را تنظیم کند و از این طریق سازگاری با ابزارهای USB را افزایش دهد. به علاوه، فیوزهای با مقاومت کمتر، افت ولتاژ را کاهش می دهند و در نتیجه ارائه دهنده پایداری بیشتر و برق رسانی بهتری هستند.

  • 2‎4 phase power- World's Best Phase Power Design



    Industry's First 24 Phase Power VRM Design
    GIGABYTE's cutting edge 24 phase power VRM design utilizes the highest caliber components to provide unadulterated, smooth power delivery for the CPU. Like a high performance sports car engine, GIGABYTE's 24 phase power design enables the best delivery of power to supercharge your system, giving extreme users unparalleled overclocking ability and the lowest temperatures to reach maximum performance levels.
    The innovative 24 phase power VRM has been designed and engineered to deliver fast transient response times through quick and seamless power delivery during extensive CPU loading variations. In addition, heat from the VRM is effectively reduced by spreading the load between the 24 power phases, resulting in a cooler and more stable platform.
  • Qualified for Windows® 7
    The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more
  • Dynamic Energy Saver™ 2
    فن آوری نسل دوم بهینه ساز پویای مصرف انرژی مجموعه ای از نرم افزارها و سخت افزارهای هوشمند است که راندمان مصرف انرژی سیستم را بالا می برند، توان مصرفی آن را کاهش می دهند و این توانایی را به کاربر می دهند که تنها با فشار یک دکمه عمل سوئیچینگ بین فاز های توان پردازنده، حافظه، چیپ ست، کارت گرافیک، هارد دیسک و فن ها را انجام دهد.
  • Cloud OC

    Cloud OC گیگابایت یک نرم افزار رایگان برای اورکلاک است. کاربران به واسطه این نرم افزار می توانند از طریق ابزارهایی مثل تلفن های هوشمند، iPhone، iPad، نت بوک یا نوت بوک که قادر به جستجو در اینترنت می باشند، رایانه خود را اورکلاک کنند. اتصال مرورگر وب می تواند از طریق اینترنت بدون سیم، بلوتوث یا کابل اترنت باشد و تمامی امکانات آن در سه گروه Tuner، System Info و Control طبقه بندی می شوند.more
    Cloud OC download

  • Hotkey OC
    GIGABYTE Hotkey OC allows users to create and save various profiles that can be adopted for different benchmarks. Hotkey OC then allows users to jump between these profiles on the fly so that the best profile for each segment within the benchmark can be used to optimize scores and boost overall performance. So, for example, when running 3DMark 06 the 1st profile might be optimized for graphics and can be used for the first two graphics tests, then the next two tests can utilize the 2nd profile which might be optimized for CPU tests, and one could jump back to the 1st profile again for the final two graphics (shader) tests...more
    Hotkey OC download
  • Smart 6- A Smarter way for PC system Management
    GIGABYTE Smart 6™ is designed with user-friendliness in mind, and offers a combination of 6 innovative software utilities that provide easier and smarter PC system management. Smart 6™ allows you to speed up system performance, reduce boot-up time, manage a secure platform and recover previous system settings easily with a click of the mouse button.


    Smart QuickBoot
    No more waiting for PC Boot up

    Smart DualBIOS
    Smart personal reminder
    Smart QuickBoost
    One-click Overclocking
    Smart Recorder
    Your PC's Watch Dog
    Smart Recovery
    Reverse time for you
    Smart TimeLock
    Time Controller for PC
  • AutoGreen - بهینه سازی مصرف انرژی از طریق بلوتوث تلفن همراه
    تکنولوژی AutoGreen این امکان را به شما می دهد که حتی وقتی از رایانه خود دور هستید نیز از طریق بلوتوث تلفن همراه مصرف انرژی سیستم خود را بهبود بخشید و در مصرف انرژی صرفه جویی کنید.
    نکته: مادربردهای گیگابایت گیرنده Bluetooth را شامل نمی شوند؛ استفاده از یک گیرنده Bluetooth برند دیگر الزامی است.
  • XHD ‏(eXtreme HardDrive)‏-Accelerating hard drive performance with ease
    بالا بردن کارایی سیستم با ابزار ساده eXtreme Hard Drive (X.H.D) گیگابایت بسیار راحت شده است. ابزار eXtreme Hard Drive (X.H.D) گیگابایت ارائه دهنده یک راه سریع و ساده برای شتاب دادن به سرعت کارکرد هارد درایو است و این کار تنها با اضافه کردن یک هارد درایو دیگر انجام می شود.
  • Integrated Memory Controller
    Intel® Core™ i7 Processors feature triple channel DDR3 support
    Intel Core™ i7 processors feature the memory controller integrated directly into the processor die, rather than as part of the Northbridge as in previous generations, allowing for faster memory performance. Core™ i7 processors also provide additional memory support including.
  • QPI , QuickPath Interconnect
    Replacing the role of FSB
    Intel uses the QPI to connect internal components of Core™ i7 processors , and to connect the CPU itself to the Northbridge and banks of memory.

    QPI delivers:
    Up to 25.6GB/sec of bandwidth between Core™ i7 processors and the rest of the system,providing exactly double the bandwidth of 1600 Hz FSB
  • Intel Turbo Boost Technology
    تکنولوژی Turbo Boost به این ترتیب کار می کند که زمانی که تمامی هسته ها در حال کار نیستند به صورت پویا مسیر حرکت توان را مشخص می کند و توان را از هسته های بیکار می گیرد و آن را به هسته های فعال و در حال کار انتقال می دهد. به این ترتیب بدون اینکه انرژی هدر برود کارایی سیستم افزایش می یابد. این تکنولوژی باعث می شود هسته های فعال به میزان قابل توجهی اورکلاک شوند.


  • Hybrid Silent-Pipe 2
    این مادربرد مجهز به فن آوری نوآورانه Hybrid Silent-Pipe 2 گیگابایت است. یک خنک کننده ترکیبی که شامل فن آوری خنک کننده سطحی، سینک خنک کننده ویژه و خنک کننده آبی مجهز به بلوک های آبی می شود و کارایی خیره کننده ای را در خنک سازی مادربرد از خود ارائه می دهد.
    • طراحی خنک کننده سطحی منحصر به فرد که دمای اطراف پردازنده را کاهش می دهد و گرمای بین پل شمالی و پل جنوبی را به کلی از بین می برد.
    • سیستم خنک کننده آبی مجهز به بلوک های آبی مخصوص با سطح تاثیر گذاری بیشتر برای تقویت عمل خنک سازی و ایجاد گردش تاثیر گذارتر.
    • استفاده از فن آوری های پیشرفته در ساخت سینک های خنک کننده برای بهبود کیفیت و بالا بردن توانایی خنک سازی آنها.
    • لوله های مسی با کیفیت ساخت بسیار بالا با استفاده از فن آوری رسوبی برای بالاتر بردن توانایی رسانایی گرما.
    • طراحی سینک خنک کننده خارجی مجهز به اسلات انتقال گرما در پشت کیس برای هدایت بهتر گرما به خارج از کیس.
  • Multi-display support with 3 way CrossFireX and 3 way SLI™
    Flexible graphics capabilities - Up to 3 VGA cards are supported for either 3 way CrossFireX™ or 3 way SLI™ action, delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
  • Ultra Durable 3

    Ultra Durable 3
    GIGABYTE Ultra Durable 3 design, featuring 2 ounces of copper for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. GIGABYTE's Ultra Durable 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2oz Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking...more
  • Benefits of 2 oz Copper PCB
    • خنک تر از مادربردهای قدیمی
    • طول عمر بیشتر
    • راندمان انرژی بالاتر
    • توانایی های بیشتر برای اورکلاکینگmore
  • 2‎X Lower Impedance


    In addition, doubling the amount of copper lowers the PCB impedance by 50%. Impedance is a measure of how much the circuit impedes the flow of current. The less the flow of current is impeded, the less amount of energy is wasted. For GIGABYTE Ultra Durable 3 motherboards, this means total PCB electrical waste is reduced by 50%, which also means less heat is generated. 2 ounces of copper also provides improved signal quality, providing better system stability and allowing for greater margins for overclocking.
  • سريع و بدون دردسر تنها با يك كليك اوركلاك كنيد
    نرم افزار Quick Boost شركت گيگابايت در سه مرحله امكان اوركلاك پردازنده را بدون كمترين دردسر و در كوتاه‌ترين زمان تنها با يك كليك براي كاربران فراهم مي‌كند. فقط کافیست بر روی درجه مورد نظر خود یک کلیک کنید و به عنوان یک کاربر مبتدی یا حرفه ای از تجربه یک اورکلاک سریع و بدون دردسر لذت ببرید.
  • EasyTune6
    شركت گیگابایت با طراحی نرم‌افزار پیشرفته و اختصاصی Easy tune 6، یک امكان مدیریتی كامل را برای مدیریت دما و ولتاژ قطعات سخت‌افزاری در اختیار كاربر قرار می‌دهد كه با وجود آن می‌توان تنظیمات سیستم را به گونه‌ای انجام داد تا بدون بروز مشكل حداكثر كارایی را از قطعات سیستم خود بدست آورید. پس اگر شما یک كاربر علاقه‌مند به اوركلاک و یا كاربر مبتدی باشید به راحتی می‌توانید با استفاده از نرم‌افزار Easy Tune 6 سیستم خود را بهترین نحو تنظیم كنید.


  • DualBIOS™ - Patented Dual Hardware BIOS Protection
    DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.


  • 2 Gigabit LAN
    High Velocity 2X Bandwidth Boost
  • Hardware OverVoltage Control IC - Enabling Extreme Overclocking
    ICهای کنترل کننده ی افزایش ولتاژ سخت افزاری گیگابایت گزینه های بیشتری را نسبت به قبل برای کنترل ولتاژ برای پردازنده و پل شمالی و حافظه ارائه داده اند. به علاوه، کنترل کننده های افزایش ولتاژ کنترل ولتاژ واقعی خطی را در بر دارند، به این معنی که در اجرا هیچ تاخیری در مقایسه با کنترل کننده های GPIO قدیمی وجود ندارد. درضمن، ICهای کنترل کننده ی افزایش ولتاژ سخت افزاری گیگابایت بر روی ولتاژ کنترل دقیق تری را دارند، به مصرف کنندگان توان این امکان را می دهد که حداقل ولتاژ آنها 20 میلی ولت باشد و قابلیت اورکلاکینگ بیشتر باشد.
  • Visible Overvoltage Reminder
    مجهز به LED هشدار دهنده که کدهای مخصوصی بر روی آن نشان داده می شود که وضعیت سیستم در آن لحظه را مشخص می کند.
  • OV-Alert LED
    4 sets of OV-Alert LEDs indicate the overvoltage level of the CPU, Memory, North Bridge and South Bridge to prevent component damage.
  • Visible Overclocking Reminder
    OC-Alert LED indicates the level of CPU overclock from low to high.
  • Visible Temperature Reminder
    Two sets of Temperature Alert LEDs indicate the current temperature level of the CPU and North Bridge
  • Onboard Quick Switches
    Onboard Power, Clear CMOS and Reset buttons allow for quick and easy tweaking for power users working in an in chassis environment.
  • Dolby Home Theater® - Enjoy a Rich Home Theater Surround Sound Experience
    صدای سینمای خانگی دالبی شنونده را در مرکز حوادث قرار می دهد و این توانایی را به کامپیوتر می دهد که صدای فراگیر واضحی مانند صدای پخش شده در سینماها داشته باشد.
    •  ارائه دهنده صدایی واضح برای پخش موسیقی، فیلم، و بازی با استفاده از دو تا هشت بلندگو یا هر نوع هدفون
    •  طراحی شده برای پخش خودکار بهترین کیفیت صدای ممکن در هر شرایط
  • ErP Lot 6 support
    EuP (که تحت عنوان تعیین کننده میزان مصرف انرژی کالاها شناخته می شود) بخشی از آئین نامه حفاظت محیط زیست اتحادیه اروپا به شمار می رود. اساس ایجاد EuP وجود نگرانی هایی درباره پیامدهای استفاده روز افزون انسان ها از قطعات الکترونیکی و چگونگی بهبود راندمان انرژی در آنها و داشتن زندگی بهتر و سبزتر بوده است. گیگابایت مادربوردهای استانداردی را تولید می کند که علاوه بر بالا بردن کارایی سیستم به صرفه جویی در مصرف انرژی نیز کمک می کنند.
  • 5‎0 هزار ساعت عمر مفید خازن‌های جامد ژاپنی
    مادربرد‌های جدید شركت گیگابایت كه بر‌اساس فن آوری UD به بازار ارائه می‌شوند، همگی مجهز به خازن‌های جامدی هستند که توسط بهترین شرکت های ژاپنی تولید شده اند. این خازن‌ها كه 50 هزار ساعت عمر مفید دارند باعث افزایش ثبات و اطمینان سیستم و ماندگاری مادربرد در شرایط سخت كاری می‌شود. این عوامل باعث می شوند تا شما بتوانید از جدیدترین و قدرتمندترین پردازنده ها و قطعات روی سیستم خود اسفاده کنید و سنگین ترین برنامه ها و بازی ها را با آن اجرا کنید. *50000 ساعت عمر مفید خازن ها در دمای 85 درجه سانتیگراد اندازه گیری شده است
  • پشتیبانی از فن آوری On/Off Charge
    فن آوری On/Off Charge گیگابایت باعث می شود که ابزارهای iPhone، iPad و iPod Touch در هنگام اتصال به رایانه با سرعت بیشتری شارژ شوند. این فن آوری به عنوان یکی از زیر شاخه های ویژگی 3x USB Power به حساب می آید و نسبت به درگاه های USB معمولی توان بیشتری را در اختیار ابزار اتصالی برای شارژ قرار می دهد. به این ترتیب iPhone، iPad یا iPod Touch شما باسرعت بیشتری شارژ خواهد شد. علاوه بر این اگر رایانه شما در حالت standby یا حتی خاموش باشد نیز عملیات شارژ قطع نخواهد شد.more
    * با توجه به محدودیت هایی که در برخی گوشی های تلفن همراه وجود دارد، ممکن است نیاز باشد تلفن همراه خود را قبل از ورود رایانه به حالت S4/S5 به آن متصل کنید. تنها در این صورت است که عملیات شارژ سریع از طریق یک درگاه USB فاقد قابلیت On/Off Charge فعال می شود. نتایج عملیات شارژ ممکن است با توجه به نوع و مدل گوشی های تلفن همراه متفاوت باشد.
    On/Off Charge Driver download

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* کلیه موارد ارایه شده در این صفحه تنها مربوط به نوع مرجع می باشد. گیگابایت حق تغییر یا تجدید نظر محتویات را در هر لحظه و بدون اطلاع قبلی دارد.
* کارایی ارایه شده بر اساس مقادیر حداکثر نظری رابط است که توسط فروشنده چیپ ست یا سازمان هایی که مشخصات رابط را تعیین کردند، ارائه شده است. کارایی واقعی ممکن است بنا بر پیکربندی سیستم متفاوت باشد.
* کلیه لوگو ها و آرم های ثبت شده تحت مالکیت مالکین مربوطه آن ها قرار دارد.
* با توجه به معماری استاندارد رایانه های شخصی، مقدار مشخصی از حافظه جهت استفاده درونی سیستم درنظر گرفته می شود و طبیعتا مقدار واقعی حافظه سیستم کم تر از مقدار اظهار شده خواهد بود.
