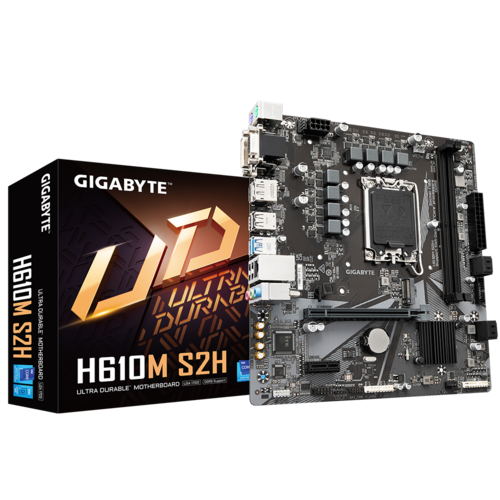

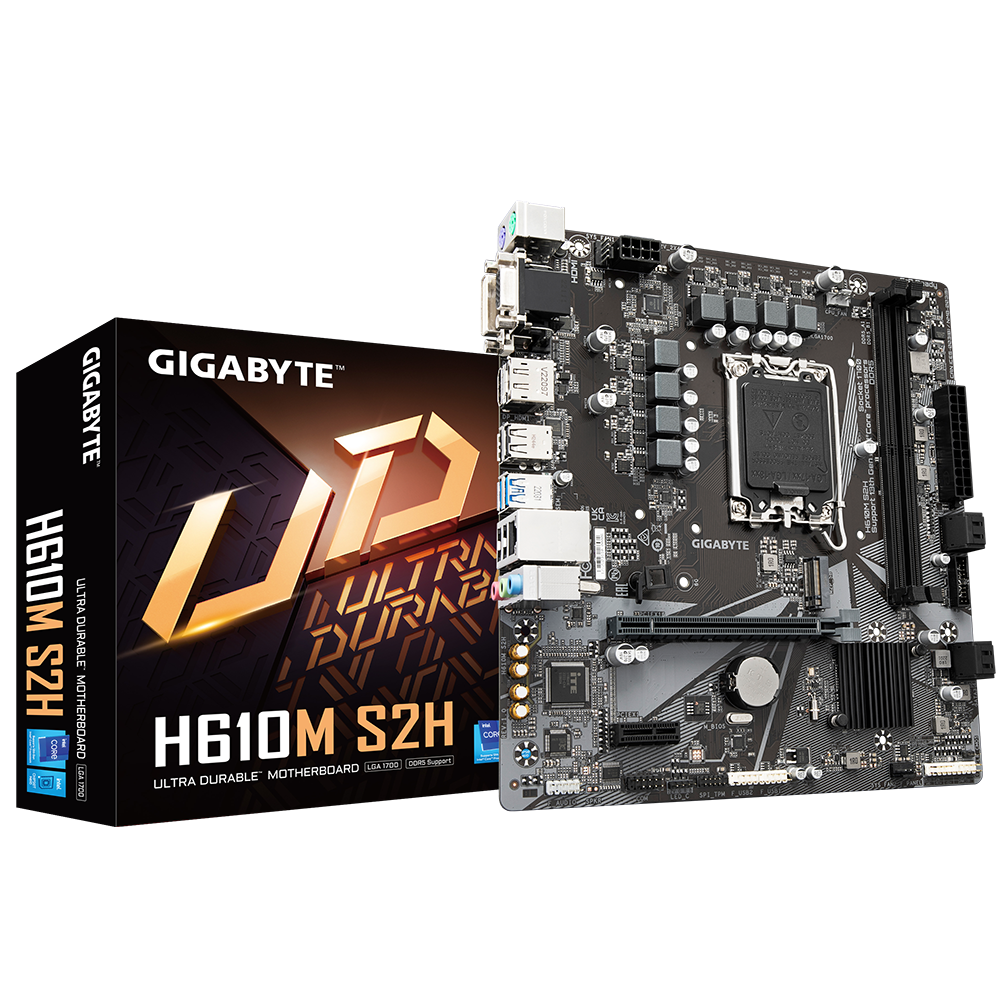

Intel® H610 Motherboard with 6+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, DisplayPort / HDMI / DVI-D/ D-Sub Ports for Multiple Display , Anti-Sulfur Resistor, Smart Fan 6

  • Supports Intel® Core™ 14th/ 13th /12th processors
  • Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
  • 6+1+1 Hybrid Digital VRM Design
  • GbE LAN with Bandwidth Management
  • NVMe PCIe 3.0 x4 M.2
  • DisplayPort / HDMI / DVI-D / D-Sub Ports for Multiple Display
  • High Quality Audio Capacitors and Audio Noise Guard
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design

* Actual support may vary by CPU.
OVERVIEW
POWER
DDR5
PERFORMANCE
CONNECTIVITY
ULTRA DURABLE
SOFTWARE
OVERVIEW
POWER
DDR5
PERFORMANCE
CONNECTIVITY
ULTRA DURABLE
SOFTWARE
1
Solid Pin Power Connector
  1. 8 pin CPU Power Connector
2
DVI-D
3
D-Sub
4
HDMI / DisplayPort
5
USB 3.2 Gen1
6
GbE LAN
7
M.2 Connector
  1. 1 x PCIe 3.0 x4 M.2
8
Audio Solutions
  1. 8-ch HD Audio
  2. Audio Noise Guard
  3. High-End Audio Capacitors
9
6+1+1 Phases Hybrid Power Design
  1. 50A Low RDS(on) MOSFETs
  2. PCIe 4.0 Ready PCB
10
Supports 13th/12th Gen. Intel Core™ Processors
11
4 x SATA 6Gb/s
12
Dual Channel DDR5, 2 DIMMs
13
PCIe 4.0 Design
  1. 1 x PCIe 4.0 x16 slot
POWER
6+1+1 Phases Hybrid Power Design
6+1+1 Phases Hybrid Power Design
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
  • 6+1+1 Phases Low RDS(on) MOSFETs
  • Solid capacitors to improve transient response and minimize oscillation.
  • 8-pin Solid Pin CPU Power Connector.
DDR5
XMP 4800+
Unlock DDR5 Voltage
Shielded Memory Routing
XMP3.0
Support for DDR5 XMP Up to 4800MHz and Beyond*
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 4800MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.

*XMP profile support may vary depending on memory module.
Please see the complete validated memory support list. Product features may vary by model.

Unlock DDR5 Voltage
DDR4
DDR4 voltage is managed by MB with wide range
Native DDR5
Secure Mode
MB provides fixed 5V to Native DDR5 memory and built-in PMIC outputs locked 1.1v to memory IC.
GIGABYTE Exclusive DDR5 Circuit Design
Programmable Mode
GIGABYTE’s exclusive design unlocks Native DDR5 PMIC secure mode into programmable mode and control Native DDR5 voltage with wide range.
  • • GIGABYTE exclusive circuit design unlocks Native DDR5 voltage control
  • • Transforms Native DDR5 memory module to Overclocked DDR5 memory
  • • Increases DDR5 memory overclocking performance and capability
  • • Supports all PMIC vendors for maximum compatibility
* Memory overclocking capabiblity will vary based on users' hardware configuration
Shielded Memory Routing
All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.
Non-shielded
PERFORMANCE
PCIe 4.0 Design
Smart Fan 6
HYBRID CORE OPTIMIZATION​
11 x PCIe 4.0 Slot
Reinforced PCIe 4.0 x 16.
2PCIe 4.0 Ready PCB
Low signal Loss PCB.
Hybrid Cores Optimization
With new Intel Hybrid technology, GIGABYTE exclusively creates two new "CPU Upgrade" in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.
GAMING
  • • Deactivate all E-Core
  • • Zero compromise on gaming performance
  • • Up to 20% lower CPU package power
  • • Up to 5°C lower CPU temperature
Max Performance
  • • Activate all P-Core and E-Core
  • • Maximize full multi-cores performance
CONNECTIVITY
GbE LAN
PCIe 3.0 M.2 Slot​
4 Digital Outputs​
Hi-Fi Audio
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
NVMe PCIe Gen3 x4 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
High Definition Digital Outputs
Enjoy true HD display capability using the most commonly integrated digital output technologies on today's HD displays and TVs.

* Maximum support of 3 independent display at one time.

* Photo for reference only.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
ULTRA DURABLE
Solid Pin
Anti-Sulfur
Solid Pin Power Connectors
H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
  1. Larger contact area for electricity
  2. More metal quantity to sustain higher power and generated heat
  3. Ultra durable and longer lifespan
* Photo for reference only.
START SULFURIZATION PROTECTION

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

SOFTWARE
BIOS
APP Center
Easy Tune
System Information Viewer
BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
* Photos are for reference only. Product features may vary by model.
APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.
EasyTune™
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
