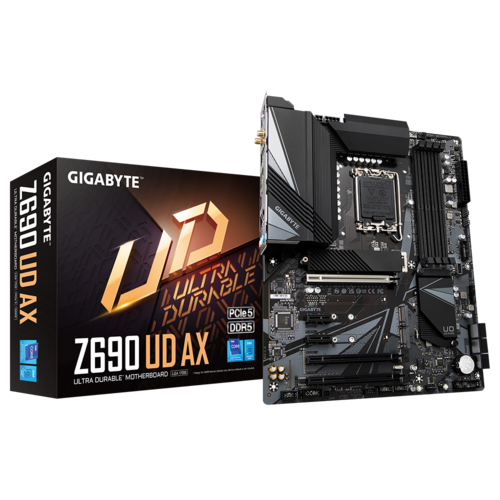

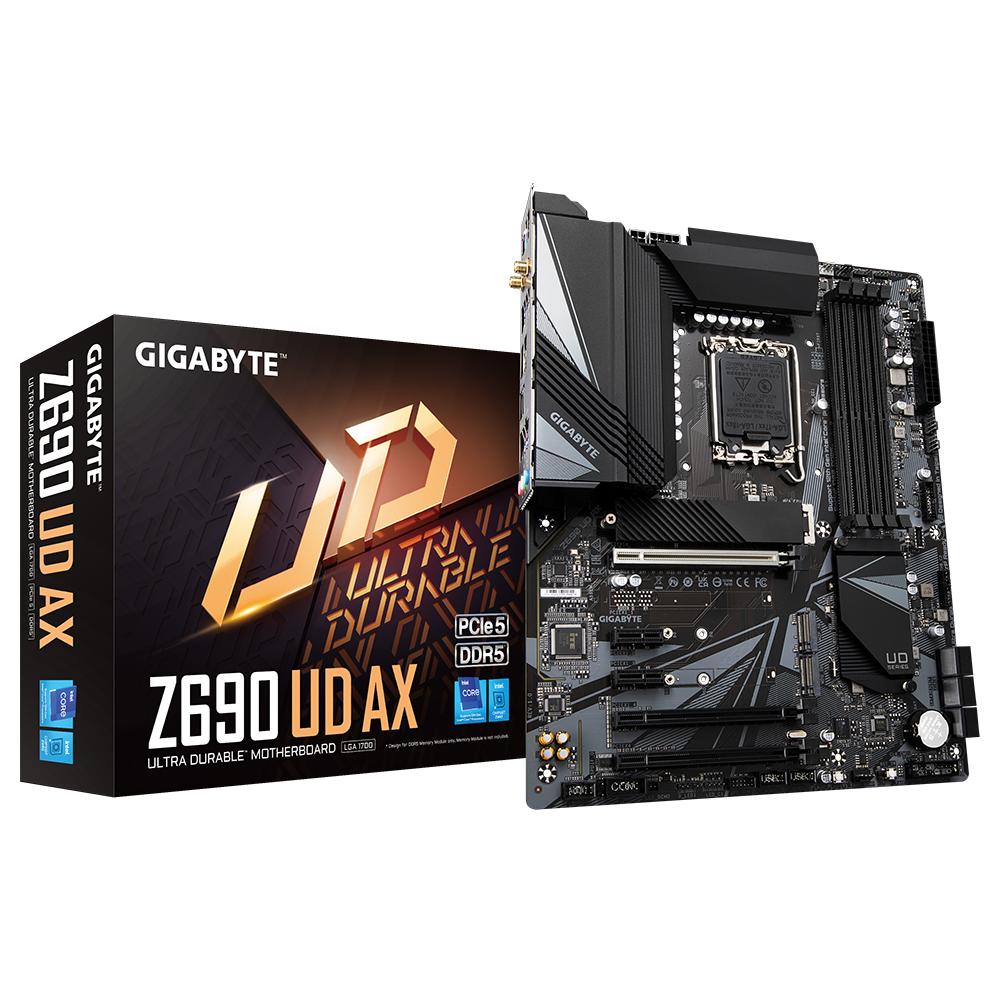

Intel® Z690 Motherboard with Direct 16+1+2 Phases Digital VRM Design, DDR5 MEMORY, PCIe 5.0 Design, Ultra Performance VRM Heatsinks, 3 x PCIe 4.0 M.2 with Thermal Guard, 2.5GbE LAN, WIFI6 802.11ax, Rear USB 3.2 Gen 2x2 Type-C®, Q-Flash Plus

  • Supports Intel® Core™ 14th/ 13th /12th processors
  • Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
  • DDR5 MEMORY Design
  • Direct 16+1+2 Digital VRM Design with 60A Power Stage* and Tantalum Polymer Capacitor​
  • Ultra Performance VRM Heatsinks
  • Intel® WIFI6 802.11ax 2T2R & BT5.2 with AERO Antenna
  • Fast 2.5GbE LAN with Bandwidth Management
  • 3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guards
  • SuperSpeed USB 3.2 Gen 2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
  • RGB FUSION 2.0, supports Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

  • *Power Stage maximum current capacity is based on VCORE Phase.
OVERVIEW
PERFORMANCE
DDR5
THERMAL
CONNECTIVITY
PERSONALIZATION
ULTRA DURABLE
OVERVIEW
PERFORMANCE
DDR5
THERMAL
CONNECTIVITY
PERSONALIZATION
ULTRA DURABLE
1
WIFI 6 802.11ax 2T2R & BT 5 with AERO Antenna
2
DisplayPort
3
HDMI
4
Rear USB 3.2 Gen2x2 Type-C®
5
2.5 GbE LAN
6
Advanced Thermal Design
  1. Fully Covered MOSFET Heatsinks
  2. 5 W/mK Thermal Conductivity Pad
  3. Integrated IO Shield
7
Next Generation PCIe 5.0 Design
  1. 1*PCIe 5.0 x16 SMD Slot
  2. Ultra Durable™ SMD PCIe 5.0 Armor
8
Audio Solution
  1. 8-ch HD Audio
  2. Audio Noise Guard
  3. High-End Audio Capacitors
9
RGB FUSION 2.0
  1. Addressable LED Header*2
  2. RGB LED Header*2
10
Solid Pin Power Connectors
  1. 8+4 pin CPU Power Connector
11
16+1+2 Direct Digital VRM Design
  1. 60A Power Stage
  2. 6-Layer PCB PCIe 5.0 Ready PCB
  3. Premium Choke and Capacitor
  4. 2X Copper PCB
12
Supports 12th Gen. Intel Core™ Processors
13
Dual Channel DDR5
14
Front USB3.2 Type-C® for Connecting Devices
15
3* M.2 Connectors
  1. PCIe 4.0 x4 NVMe support
  2. 1* Thermal Guard
16
6*SATA 6Gb/s
17
Q-FLASH Plus Onboard Button
PERFORMANCE
Direct Digital VRM Design
PCIe 5.0 Design
Hybrid Cores Optimization
UNPARALLELED PERFORMANCE
With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIAGBYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.
Hybrid Cores Optimization
With new Intel Hybrid technology, GIGABYTE exclusively creates two new " CPU Upgrade " in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.
GAMING
MAX PERFORMANCE
• Deactivate all E-Core
• Zero compromise on gaming performance
• Up to 20% lower CPU package power
• Up to 5°C lower CPU temperature
• Activate all P-Core and E-Core
• Maximize full multi-cores performance
DDR5
XMP 6000+
Unlock DDR5 Voltage
Shielded Memory Routing
XMP3.0
Support for DDR5 XMP Up to 6000MHz and Beyond*
AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 6000MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.

*XMP profile support may vary depending on memory module.
Please see the complete validated memory support list. Product features may vary by model.

Unlock DDR5 Voltage
DDR4
DDR4 voltage is managed by MB with wide range
Native DDR5
Secure Mode
MB provides fixed 5V to Native DDR5 memory and built-in PMIC outputs locked 1.1v to memory IC.
GIGABYTE Exclusive DDR5 Circuit Design
Programmable Mode
GIGABYTE’s exclusive design unlocks Native DDR5 PMIC secure mode into programmable mode and control Native DDR5 voltage with wide range.
  • • GIGABYTE exclusive circuit design unlocks Native DDR5 voltage control
  • • Transforms Native DDR5 memory module to Overclocked DDR5 memory
  • • Increases DDR5 memory overclocking performance and capability
  • • Supports all PMIC vendors for maximum compatibility
* Memory overclocking capabiblity will vary based on users' hardware configuration
Shielded Memory Routing
All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.
Thermal
Thermal Design
Fully Covered MOSFET Heatsink
M.2 Thermal Guard
2X Copper PCB
Smart Fan 6
ADVANCED THERMAL SOLUTION
Z690 UD AX uses high performance Covered thermal design with high coverage MOSFET Heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.
1. Fully Covered Thermal Design
High coverage MOSFET and integrated molding Heatsinks to improve thermal efficiency with better airflow and heat exchange.
2. M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
3. 5 W/mK Thermal Pad
By using 1.5mm thicker 5 W/mK thermal conductivity pads, it can transfer 2.7x more heat compared to traditional thermal pads in the same time.
4. 2X Copper PCB
2X Copper PCBs design effectively lower the component temperature by its high thermal conductivity and low impedance.
1. 2X Large Surface
Increased surface area up to 2X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.
2. Real One-piece Build
TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors’ multi-piece design.
3. Multi-Cut Design
TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance.
M.2 Thermal Guard
GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Thermal Throttling As Temperature Rises
3% Cooler by implementing
2X copper PCB Design
By adopting 2X copper on PCB inner layer, it lowers the components' temperature at least 3% by turning the PCB into a super thin PCB size copper heatsink to dissipate the heat from the components effectively, due to it’s high thermal conductivity and lower impedance.
CONNECTIVITY
2.5 GbE LAN
802.11ax WIFI 6
USB 3.2 Gen2X2 Type-C®
Hi-Fi Audio
NEXT GENERATION CONNECTIVITY
GIGABYTE Z690 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network and storage connectivity.
First adopter on 2.5 GbE LAN onboard

2X Faster than ever
  1. Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1 GbE networking, perfectly designed for gamers with ultimate online gaming experience.

  2. Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet


WIFI 6 802.11ax + BT 5 Module
Wireless solution supports 802.11ax, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
Benefit of WIFI 6
  1. 5.5X throughput than 802.11ac 1x1*
  2. 4X better network capacity, no traffic jams especially in those dense area with lots of devices
  3. Network efficiency increase for better user experience
Connecting the Future - USB 3.2 Gen 2x2 Type-C®
Featuring the USB 3.2 Gen 2x2 design which is doubled the performance than previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C® connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data rapidly.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
LIGHTING
RGB FUSION
BIOS
EASY TUNE
System Information Viewer
Refreshed BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system. * Photos are for reference only. Product features may vary by model.

EasyTune™
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

ULTRA DURABLE
Q-Flash Plus
Solid Pin
ULTRA DURABLE
GIGABYTE Ultra Durable™ features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
Solid Pin Power Connectors
Z690 motherboards feature solid plated ATX 12V 8pin + 4pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
  1. Larger contact area for electricity
  2. More metal quantity to sustain higher power and generated heat
  3. Ultra durable and longer lifespan
