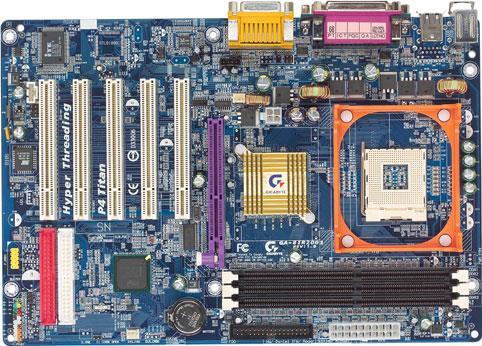

GA-8IR2003 (Rev. 2.0)

SpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. Socket 478 for Intel® Pentium®4 processor
    2. 400 MHz FSB
  • Chipset
    1. Intel® 845 MCH
    2. Intel® ICH2
    3. Realtek ALC650
  • Memory
    1. 3 x 184-pin DDR DIMMs
    2. Supports up to 2GB of DDR 200/266 memory
  • Expansion Slots
    1. 1 x AGP 4X, supports 1.5V display card only
    2. 5 x PCI (PCI 2.2 compliant)
  • Internal I/O Connectors
    1. 1 x FDD
    2. 2 x UDMA ATA 100/66 Bus Master IDE
    3. 1 x USB 1.1 connector (2 ports by cable)
    4. 2 x cooling fan pin headers
    5. CD / AUX in
  • Back Panel Connectors
    1. 2 x USB 1.1 ports
    2. 1 x LPT, 2 x COM ports
    3. Audio (1 x Line-in / 1 x Line-out / 1 x MIC) connector
    4. PS/2 Keyboard/Mouse connector
    5. 1 x Game / Midi port
  • BIOS
    1. 2M bit flash ROM
  • Bundled Software
    1. Anti-Virus OEM version
    2. GIGABYTE Windows Utility Manager
    3. Adobe® Acrobat Reader
    4. IAA (Intel® Application Accelerator)
  • Form Factor
    1. ATX
    2. 29.5 x 19.6 cm
  • CPU/AGP/DIMM setting
    1. CPU FSB / Multiplier adjustable via BIOS
  • Driver
    1. Intel INF
    2. Realtek sound driver (For Ver.2.0)
    3. Sigmatel sound driver(For Ver.1.0)
  • Other Features
    1. IDE, SCSI, LS120, ZIP, CD-ROM and USB bootable
    2. Suspend to RAM (STR)
    3. Supports USB KB / MS wake up from S3
    4. Poly fuse for keyboard over-current protection
    5. @BIOS™, EasyTune™ 4, Q-Flash™, GMC™
  • Power
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ NT/ 2000/ XP shut down and switch
  • CPU
    1. Socket 478 for Intel® Pentium®4 processor
    2. 400 MHz FSB
  • Chipset
    1. Intel® 845 MCH
    2. Intel® ICH2
    3. Realtek ALC650
  • Memory
    1. 3 x 184-pin DDR DIMMs
    2. Supports up to 2GB of DDR 200/266 memory
  • Expansion Slots
    1. 1 x AGP 4X, supports 1.5V display card only
    2. 5 x PCI (PCI 2.2 compliant)
  • Internal I/O Connectors
    1. 1 x FDD
    2. 2 x UDMA ATA 100/66 Bus Master IDE
    3. 1 x USB 1.1 connector (2 ports by cable)
    4. 2 x cooling fan pin headers
    5. CD / AUX in
  • Back Panel Connectors
    1. 2 x USB 1.1 ports
    2. 1 x LPT, 2 x COM ports
    3. Audio (1 x Line-in / 1 x Line-out / 1 x MIC) connector
    4. PS/2 Keyboard/Mouse connector
    5. 1 x Game / Midi port
  • BIOS
    1. 2M bit flash ROM
  • Bundled Software
    1. Anti-Virus OEM version
    2. GIGABYTE Windows Utility Manager
    3. Adobe® Acrobat Reader
    4. IAA (Intel® Application Accelerator)
  • Form Factor
    1. ATX
    2. 29.5 x 19.6 cm
  • CPU/AGP/DIMM setting
    1. CPU FSB / Multiplier adjustable via BIOS
  • Driver
    1. Intel INF
    2. Realtek sound driver (For Ver.2.0)
    3. Sigmatel sound driver(For Ver.1.0)
  • Other Features
    1. IDE, SCSI, LS120, ZIP, CD-ROM and USB bootable
    2. Suspend to RAM (STR)
    3. Supports USB KB / MS wake up from S3
    4. Poly fuse for keyboard over-current protection
    5. @BIOS™, EasyTune™ 4, Q-Flash™, GMC™
  • Power
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ NT/ 2000/ XP shut down and switch
