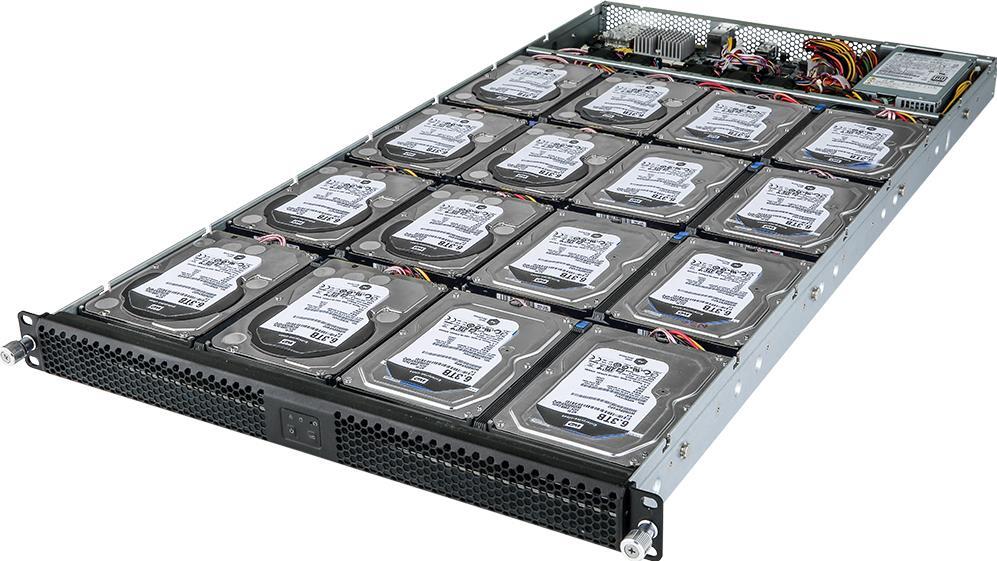

1U ARM Rackmount Cold Storage(Command Mode)
- Annapurna Alpine AL514 quad-core 1.7GHz processor
- 1 x ECC DIMM slot, up to max. 8GB
- 16 x 3.5" HDD slots, up to 100TB
- Supports SATA III 6Gb/s connections
- 2 x 10GbE SFP+ LAN ports (integrated)
- 2 x GbE LAN ports (Atheros® AR8035)
- 1 x 400W 80 PLUS Gold 100~240V AC PSU
- Overview
- Specifications
- Support
- Related Resources
Specifications
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 860
438 x 43.5 x 860
Motherboard
ML00-AR0
CPU
Annapurna Labs® Alpine AL514 processor
ARMv7 architecture
Cortex-A15 quad-core, 1.7GHz
ARMv7 architecture
Cortex-A15 quad-core, 1.7GHz
Socket
-
Chipset
-
Memory
1 x DIMM slot
RDIMM/ECC-UDIMM modules supported
1600 MHz DDR3/DDR3L memory supported
Support 1Rx8 / 1Rx16 memory modules (max. 4GB)
Support 2Rx8 / 2Rx16 memory modules (max. 8GB)
4GB DDR3L memory pre-installed
RDIMM/ECC-UDIMM modules supported
1600 MHz DDR3/DDR3L memory supported
Support 1Rx8 / 1Rx16 memory modules (max. 4GB)
Support 2Rx8 / 2Rx16 memory modules (max. 8GB)
4GB DDR3L memory pre-installed
LAN
2 x 10GbE SFP+ LAN ports (integrated)
2 x GbE LAN ports (Atheros® AR8035)
1 x 10/100/1000 management LAN
2 x GbE LAN ports (Atheros® AR8035)
1 x 10/100/1000 management LAN
Video
-
Audio
-
Storage
16 x 3.5” easy swappable HDD bays
Supports SATA III 6Gb/s
Supports SATA III 6Gb/s
SATA
16 x SATA III 6Gb/s ports
SAS
-
RAID
Depends on OS RAID
Please refer to "training materials" in support & downloads page
Please refer to "training materials" in support & downloads page
Peripheral Drives
-
Expansion Slots
-
Internal I/O
-
Front I/O
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x LAN LED
16 x HDD location LEDs
1 x HDD access LED
1 x ID button with LED
1 x Reset button
1 x LAN LED
16 x HDD location LEDs
1 x HDD access LED
Rear I/O
2 x SFP+
3 x RJ45
1 x Micro USB
1 x Power button with LED
1 x System status LED
3 x RJ45
1 x Micro USB
1 x Power button with LED
1 x System status LED
Backplane Board
-
TPM
-
Power Supply[#1]
1 x 400W PSU
80 PLUS Gold
100~240V AC
80 PLUS Gold
100~240V AC
System Management
Aspeed® AST1250 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
OS Compatibility
Embedded Linux
System Fans
5 x 40x40x28mm (18’000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Barebone: 11.4 kg (without drives)
Barebone with packaging: 19.4 kg (without drives)
Packaging Dimensions
1141 x 745 x 259 mm
Packaging Content
1 x D120-S3G
1 x Rail kit
1 x HDD remove tool
1 x Rail kit
1 x HDD remove tool
Part Numbers
Barebone with rail kit: 6ND120S3GMR-00
Rail kit: 25HB2-3A0201-C0R
Memory module: 25SD5-6004G2-I0R
Fan module: 25ST2-442826-D0R
Power supply: 25EP0-20400H-D0S
Memory module: 25SD5-6004G2-I0R
Fan module: 25ST2-442826-D0R
Power supply: 25EP0-20400H-D0S
