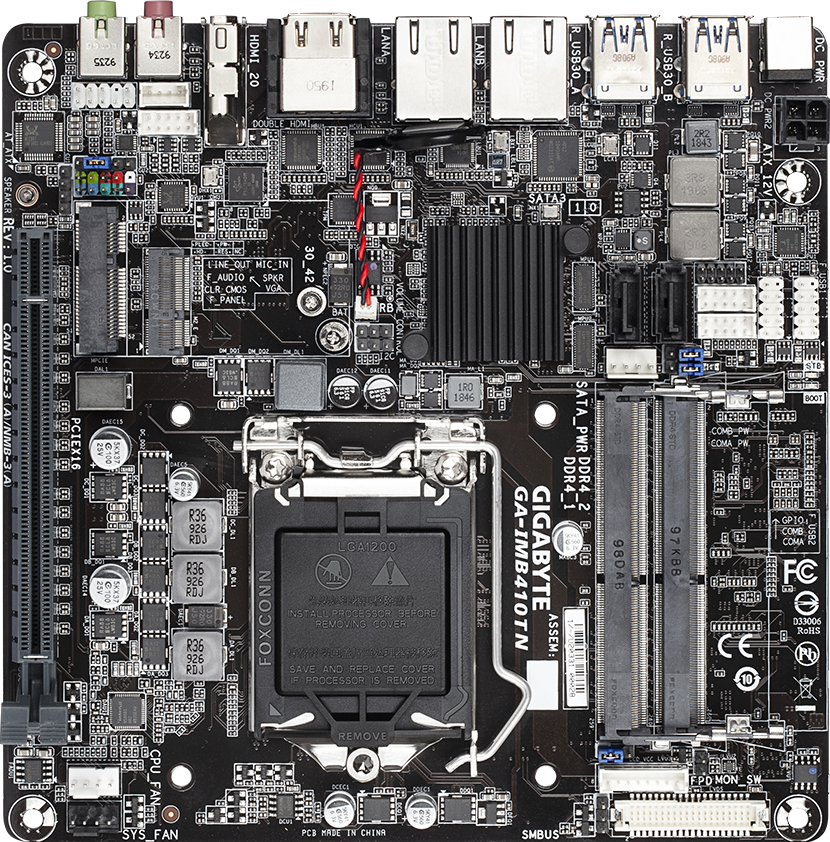

GA-IMB410TN (Rev. 1.0)

OverviewSpecificationsSupportWhere to Buy

Specifications

  • Processador
    1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package up to 65W
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® H410 Express Chipset
  • Memória
    1. 2 x DDR4 SO-DIMM socket supporting up to 32 GB of system memory
    2. Support for DDR4 2666/2933 MHz memory modules
    (Please refer "Memory Support List" for more information.)
  • Gráfica Integrada
  • Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x D-Sub port (Optional and share with one HDMI1.4 Port, Default support HDMI)
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.0 version, HDCP 2.2, and HDR.
    3. 2 x HDMI1.4a, supporting a maximum resolution of 4096 x 2160@30Hz
    Support for up to 2 displays at the same time
    Maximum shared memory of 1 GB
  • Áudio
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1-channel
  • LAN
    1. 2 x Intel® GbE LAN chips (10/100/1000 Mbit)
  • TPM
    1. Infineon chip, supporting TPM 2.0 (Optional)
  • Slots de Expansão
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    2. 1 x M.2 Socket 1 connector for PCIe wireless module
    3. 1 x full size Mini PCIe connector (MSATA_PCIE)
      * The MSATA_PCIE slot shares bandwidth with the SATA3 2 connector. When an MSATA SSD is populated, the SATA3 2 connector becomes unavailable.
      * The MSATA_PCIE connector can also be used as an MSATA connector.
      (The Mini PCI Express slot conforms to PCI Express 2.0 standard.)
  • Interface de Armazenamento
  • Chipset:
    1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 SATA and PCIe x2 SSD support)
    2. 2 x SATA 6Gb/s connectors
  • USB
  • Chipset:
    1. 4 x USB 3.0/2.0 ports on the back panel
    2. 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Conectores I/O internos
    1. 1 x 4-pin ATX 12V power connector
    2. 1 x CPU fan header
    3. 1 x system fan header
    4. 1 x M.2 Socket 3 connector on the back of the motherboard
    5. 2 x SATA 6Gb/s connectors
    6. 1 x Mini PCIe/MSATA connector
    7. 1 x USIM connector on the back of the motherboard
    8. 1 x front panel header
    9. 1 x front panel audio header
    10. 1 x battery power cable connector
    11. 2 x USB 2.0/1.1 headers
    12. 4 x serial port power select jumpers
    13. 1 x AT/ATX mode switch jumper (AT_ATX)
    14. 4 x serial port
    15. 1 x SATA Power connector
    16. 1 x GPIO header
    17. 1 x LVDS header
    18. 1 x LVDS drive voltage jumper (LCD_VCC)
    19. 1 x flat panel display switch header (MON_SW)
    20. 1 x flat panel display header (FPD)
    21. 1 x speaker header (SPKR)
    22. 1 x buzzer header (SPEAKER)
    23. 1 x Clear CMOS jumper
    24. 1 x chassis intrusion header
    25. 1 x I2C header
    26. 1 x SMbus header
  • Painel I/O Traseiro
    1. 4 x USB 3.0/2.0 ports
    2. 2 x RJ-45 ports
    3. 1x HDMI2.0 port (Note)
    4. 2 x HDMI1.4a
    5. 2 x audio jacks
  • Controlador I/O
    1. ＮuvoTon NCT6116D
  • Monitorização H/W
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Outras Características
    1. Support for @BIOS
    2. Support for Q-Flash
  • Sistema Operativo
    1. Support for Windows 10 64-bit /Linux
  • Form Factor
    1. Thin Mini ITX Form Factor : 17.0 cm x 17.0 cm
  • Operating Temperature
  • 0°C to +60°C
  • Observação
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Processador
      1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package up to 65W
      2. L3 cache varies with CPU
      (Please refer "CPU Support List" for more information.)
    • Chipset
      1. Intel® H410 Express Chipset
    • Memória
      1. 2 x DDR4 SO-DIMM socket supporting up to 32 GB of system memory
      2. Support for DDR4 2666/2933 MHz memory modules
      (Please refer "Memory Support List" for more information.)
    • Gráfica Integrada
    • Integrated Graphics Processor-Intel® HD Graphics support:
      1. 1 x D-Sub port (Optional and share with one HDMI1.4 Port, Default support HDMI)
      2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
        * Support for HDMI 2.0 version, HDCP 2.2, and HDR.
      3. 2 x HDMI1.4a, supporting a maximum resolution of 4096 x 2160@30Hz
      Support for up to 2 displays at the same time
      Maximum shared memory of 1 GB
    • Áudio
      1. Realtek® ALC887 codec
      2. High Definition Audio
      3. 2/4/5.1-channel
    • LAN
      1. 2 x Intel® GbE LAN chips (10/100/1000 Mbit)
    • TPM
      1. Infineon chip, supporting TPM 2.0 (Optional)
    • Slots de Expansão
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
        (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
      2. 1 x M.2 Socket 1 connector for PCIe wireless module
      3. 1 x full size Mini PCIe connector (MSATA_PCIE)
        * The MSATA_PCIE slot shares bandwidth with the SATA3 2 connector. When an MSATA SSD is populated, the SATA3 2 connector becomes unavailable.
        * The MSATA_PCIE connector can also be used as an MSATA connector.
        (The Mini PCI Express slot conforms to PCI Express 2.0 standard.)
    • Interface de Armazenamento
    • Chipset:
      1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 SATA and PCIe x2 SSD support)
      2. 2 x SATA 6Gb/s connectors
    • USB
    • Chipset:
      1. 4 x USB 3.0/2.0 ports on the back panel
      2. 4 x USB 2.0/1.1 ports available through the internal USB headers
    • Conectores I/O internos
      1. 1 x 4-pin ATX 12V power connector
      2. 1 x CPU fan header
      3. 1 x system fan header
      4. 1 x M.2 Socket 3 connector on the back of the motherboard
      5. 2 x SATA 6Gb/s connectors
      6. 1 x Mini PCIe/MSATA connector
      7. 1 x USIM connector on the back of the motherboard
      8. 1 x front panel header
      9. 1 x front panel audio header
      10. 1 x battery power cable connector
      11. 2 x USB 2.0/1.1 headers
      12. 4 x serial port power select jumpers
      13. 1 x AT/ATX mode switch jumper (AT_ATX)
      14. 4 x serial port
      15. 1 x SATA Power connector
      16. 1 x GPIO header
      17. 1 x LVDS header
      18. 1 x LVDS drive voltage jumper (LCD_VCC)
      19. 1 x flat panel display switch header (MON_SW)
      20. 1 x flat panel display header (FPD)
      21. 1 x speaker header (SPKR)
      22. 1 x buzzer header (SPEAKER)
      23. 1 x Clear CMOS jumper
      24. 1 x chassis intrusion header
      25. 1 x I2C header
      26. 1 x SMbus header
    • Painel I/O Traseiro
      1. 4 x USB 3.0/2.0 ports
      2. 2 x RJ-45 ports
      3. 1x HDMI2.0 port (Note)
      4. 2 x HDMI1.4a
      5. 2 x audio jacks
    • Controlador I/O
      1. ＮuvoTon NCT6116D
    • Monitorização H/W
      1. Voltage detection
      2. Temperature detection
      3. Fan speed detection
      4. Overheating warning
      5. Fan fail warning
      6. Fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 1 x 128 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Outras Características
      1. Support for @BIOS
      2. Support for Q-Flash
    • Sistema Operativo
      1. Support for Windows 10 64-bit /Linux
    • Form Factor
      1. Thin Mini ITX Form Factor : 17.0 cm x 17.0 cm
    • Operating Temperature
    • 0°C to +60°C
    • Observação
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Os termos HDMI, HDMI High-Definition Multimedia Interface (interface multimédia de alta-definição), a apresentação comercial HDMI e os Logótipos HDMI são marcas comerciais ou marcas registadas da HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
