1/3

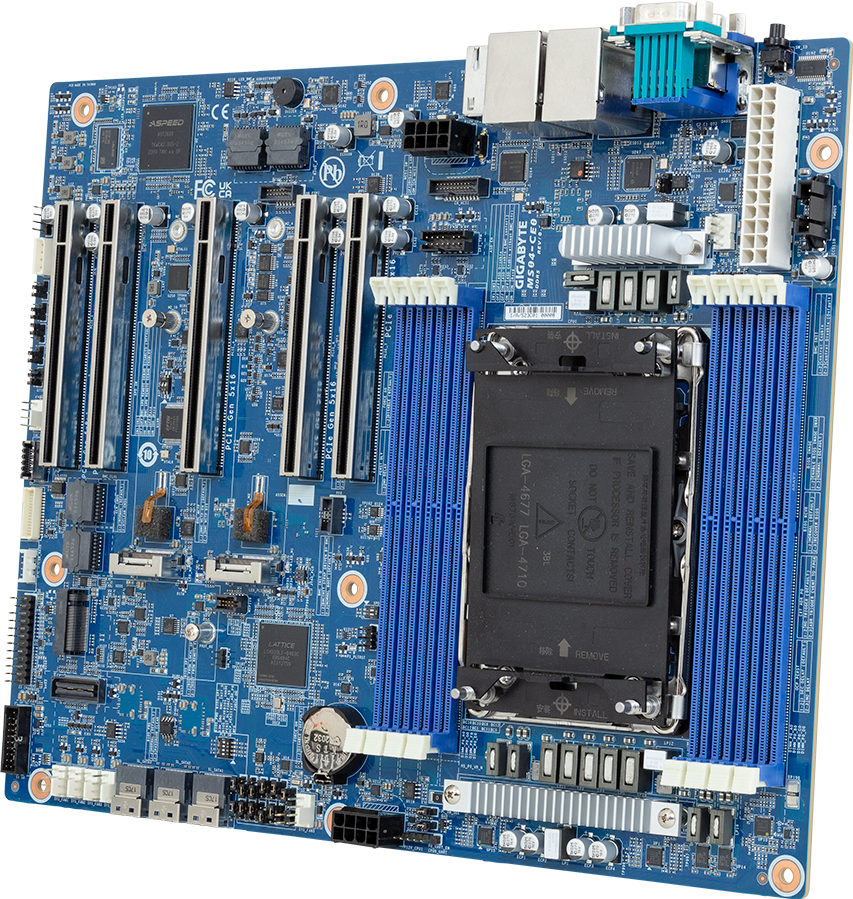

MS04-CE0
Motherboard - Intel® Xeon® 6 Processors - ATX UP
- Single Intel® Xeon® 6700/6500-Series Processors
- 8-Channel DDR5 RDIMM / MRDIMM, 8 x DIMMs
- Dual ROM Architecture
- 2 x 1Gb/s LAN ports via Intel® I210-AT
- 3 x SlimSAS 4i connectors with SATA interface
- 2 x M.2 slots with PCIe Gen5 x2 interface
- 5 x PCIe Gen5 x16 and x8 expansion slots
Ordering Numbers:
Retail: 9MS04CE0MR-000-1*
Bulk: 9MS04CE0NR-000-1*
Retail: 9MS04CE0MR-000-1*
Bulk: 9MS04CE0NR-000-1*
- Overview
- Specifications
- Support
- Related Resources
Specifications
Form Factor (WxD, mm)
ATX
304.8 x 244
304.8 x 244
CPU
Intel® Xeon® 6 Processors
- Intel® Xeon® 6700-Series Processors
- Intel® Xeon® 6500-Series Processors
Single processor, TDP up to 350W
- Intel® Xeon® 6700-Series Processors
- Intel® Xeon® 6500-Series Processors
Single processor, TDP up to 350W
Socket
1 x LGA 4710
Socket E2
Socket E2
Chipset
System on Chip
Memory
8 x DIMM slots
DDR5 memory supported
8-Channel memory per processor
MRDIMM supported [1]
RDIMM: Up to 6400 MT/s
MRDIMM: Up to 8000 MT/s
[1] MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores.
DDR5 memory supported
8-Channel memory per processor
MRDIMM supported [1]
RDIMM: Up to 6400 MT/s
MRDIMM: Up to 8000 MT/s
[1] MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores.
LAN
2 x 1Gb/s LAN (2 x Intel® I210-AT)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in ASPEED® AST2600
- 1 x VGA port
- 1 x VGA port
Audio
N/A
Storage Interface
SlimSAS:
3 x SlimSAS 4i for 12 x SATA 6Gb/s
M.2:
2 x M.2 (2280/22110), PCIe Gen5 x2
3 x SlimSAS 4i for 12 x SATA 6Gb/s
M.2:
2 x M.2 (2280/22110), PCIe Gen5 x2
RAID
Onboard VROC key header
PCIe Expansion Slots
Slot_7: PCIe x16 (Gen5 x16)
Slot_6: PCIe x16 (Gen5 x16)
Slot_4: PCIe x16 (Gen5 x16)
Slot_2: PCIe x16 (Gen5 x16)
Slot_1: PCIe x16 (Gen5 x8)
Slot_6: PCIe x16 (Gen5 x16)
Slot_4: PCIe x16 (Gen5 x16)
Slot_2: PCIe x16 (Gen5 x16)
Slot_1: PCIe x16 (Gen5 x8)
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
1 x CPU fan header
6 x System fan headers
1 x USB 3.2 Gen1 x2 header
2 x M.2 slots
3 x SlimSAS connectors
1 x VROC connector
1 x NCSI connector
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header
1 x PRoT connector (only enabled on RoT SKU)
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
1 x CPU fan header
6 x System fan headers
1 x USB 3.2 Gen1 x2 header
2 x M.2 slots
3 x SlimSAS connectors
1 x VROC connector
1 x NCSI connector
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header
1 x PRoT connector (only enabled on RoT SKU)
Rear I/O
4 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
1 x COM port
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED
1 x VGA port
1 x COM port
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012
1 x PRoT connector (only enabled on RoT SKU)
- Optional TPM2.0 kit: CTM012
1 x PRoT connector (only enabled on RoT SKU)
OS Supported
Please refer to OS compatibility table in support page
Board Management
ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
Retail Packaging Content
1 x MS04-CE0
1 x I/O shield
1 x Quick start guide
2 x Carriers
1 x SlimSAS to 4 x SATA 6Gb/s cable (600mm)
Single Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single boxes in one carton
1 x I/O shield
1 x Quick start guide
2 x Carriers
1 x SlimSAS to 4 x SATA 6Gb/s cable (600mm)
Single Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single boxes in one carton
Bulk Packaging Content
10 x MS04-CE0
10 x I/O shields
20 x Carriers
Carton dimensions: 600 x 473 x 495 mm
10 x I/O shields
20 x Carriers
Carton dimensions: 600 x 473 x 495 mm
Reference Numbers
Retail: 9MS04CE0MR-000-1*
Bulk: 9MS04CE0NR-000-1*
Part Numbers:
- I/O shield: 12AIO-MS04CE-00R
- SlimSAS to 4 x SATA cable (600mm): 25CFM-600700-A4R
Bulk: 9MS04CE0NR-000-1*
Part Numbers:
- I/O shield: 12AIO-MS04CE-00R
- SlimSAS to 4 x SATA cable (600mm): 25CFM-600700-A4R
[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#2] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#3] All trademarks and logos are the property of their respective owners.
